Transfer Case Shift Control Module Removal/Installation

Remove the audio unit.
- Insert the removal tool.
- Remove and support the audio unit.

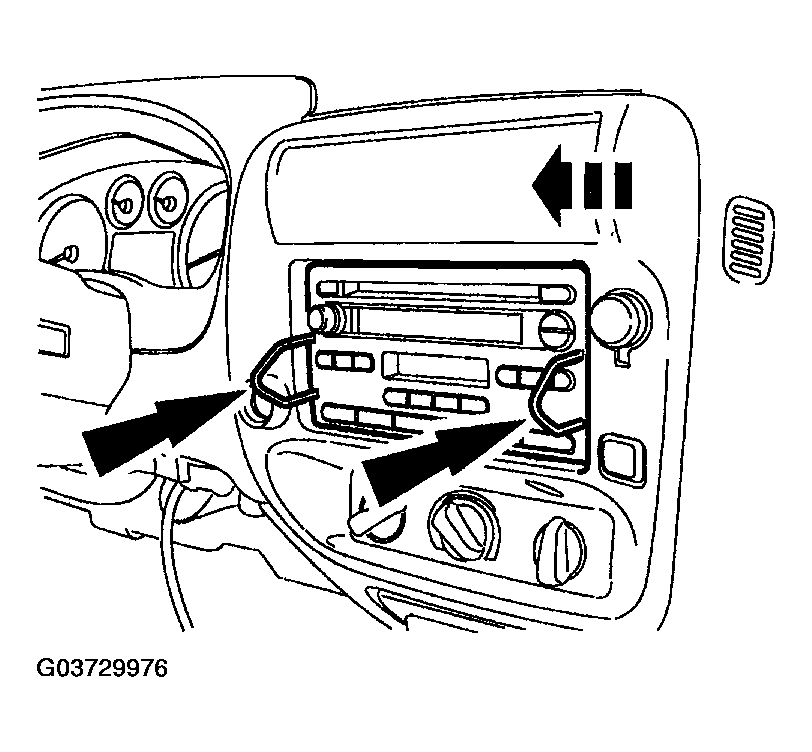

  Fig 1: Removing Audio Unit
  Courtesy of MAZDA MOTORS CORP.
Disconnect the audio unit electrical connector and antenna cable.

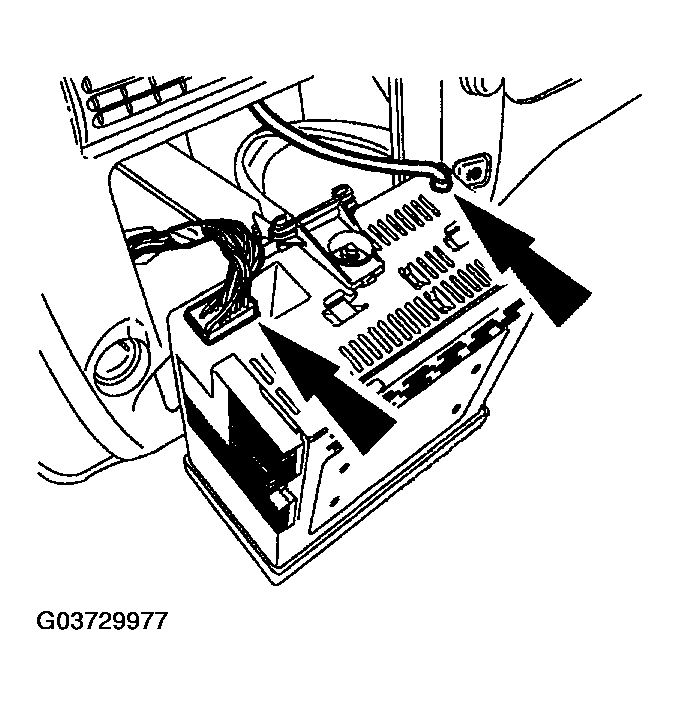

Fig 2: Disconnecting Audio Unit Electrical Connector And Antenna Cable
Courtesy of MAZDA MOTORS CORP.
Remove the screws. Disengage the spring clips. Remove the instrument panel finish panel.

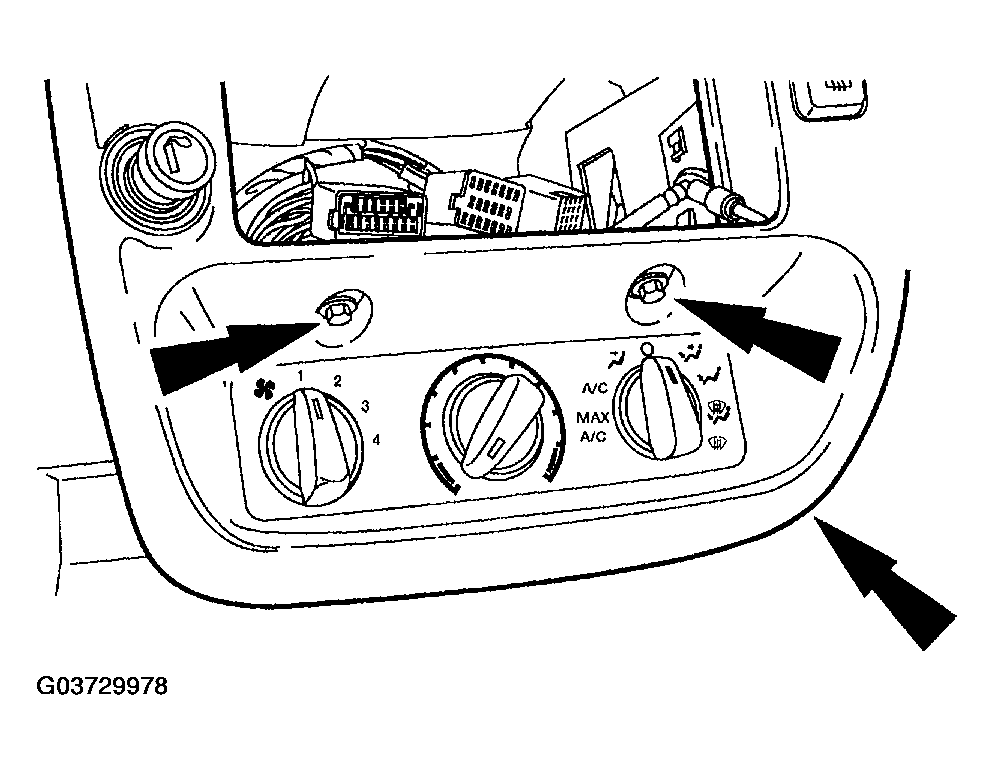

Fig 3: Removing Instrument Panel Finish Panel
Courtesy of MAZDA MOTORS CORP.
Remove the 4X4 control module.
1. Disengage the locking tangs and remove the harness connectors.
2. Remove the screws.
3. Remove the 4X4 control module.

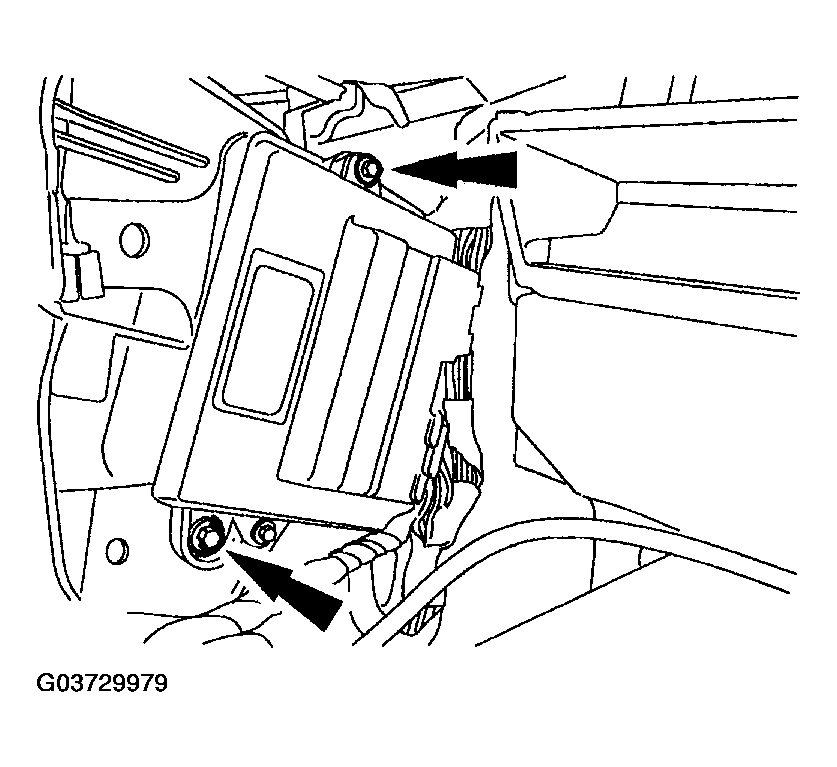

Fig 4: Removing 4X4 Control Module Screws
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
