Transfer Case Shift Control Switch Removal/Installation

Remove the mode select switch (MSS) knob.

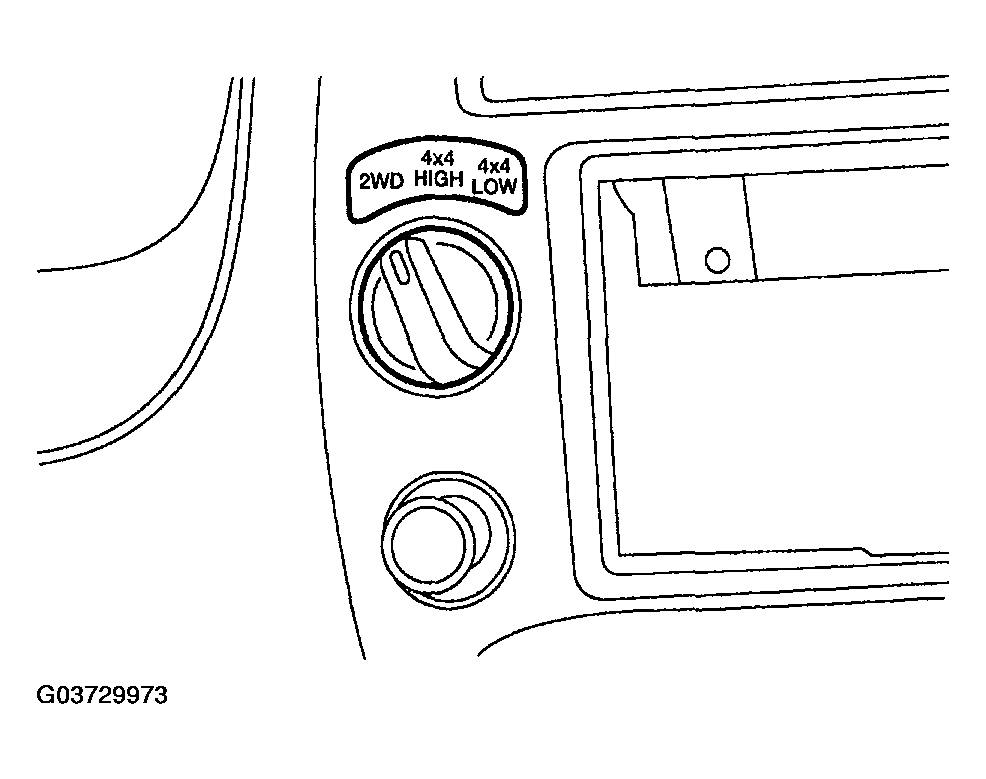

Fig 1: Removing Mode Select Switch (MSS) Knob
Courtesy of MAZDA MOTORS CORP.
Remove the audio unit; see AUDIO UNIT REMOVAL/INSPECTION .
Remove the screws and pull out the instrument panel center finish panel out of the instrument panel.

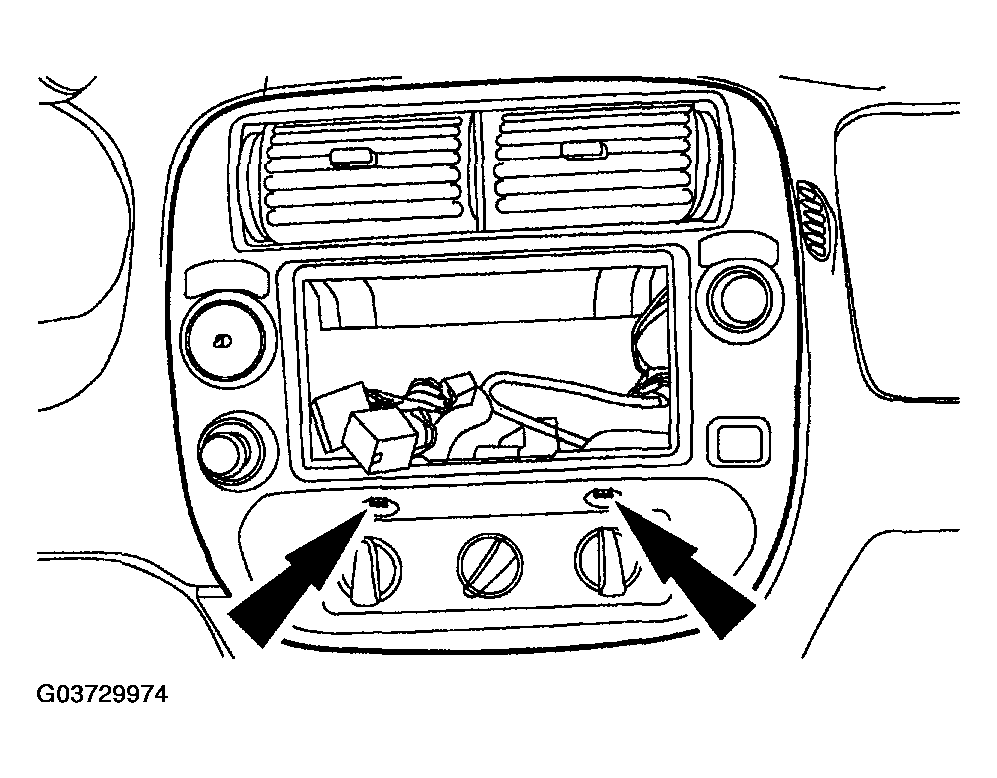

Fig 2: Removing Instrument Panel Center Finish Panel Screws
Courtesy of MAZDA MOTORS CORP.
Remove the two screws retaining the switch, and remove the switch.

Fig 3: Removing Switch And Screw
Courtesy of MAZDA MOTORS CORP.
Install in reverse order of removal.
