Clockspring Connector End View (Standard Deployment Control System)

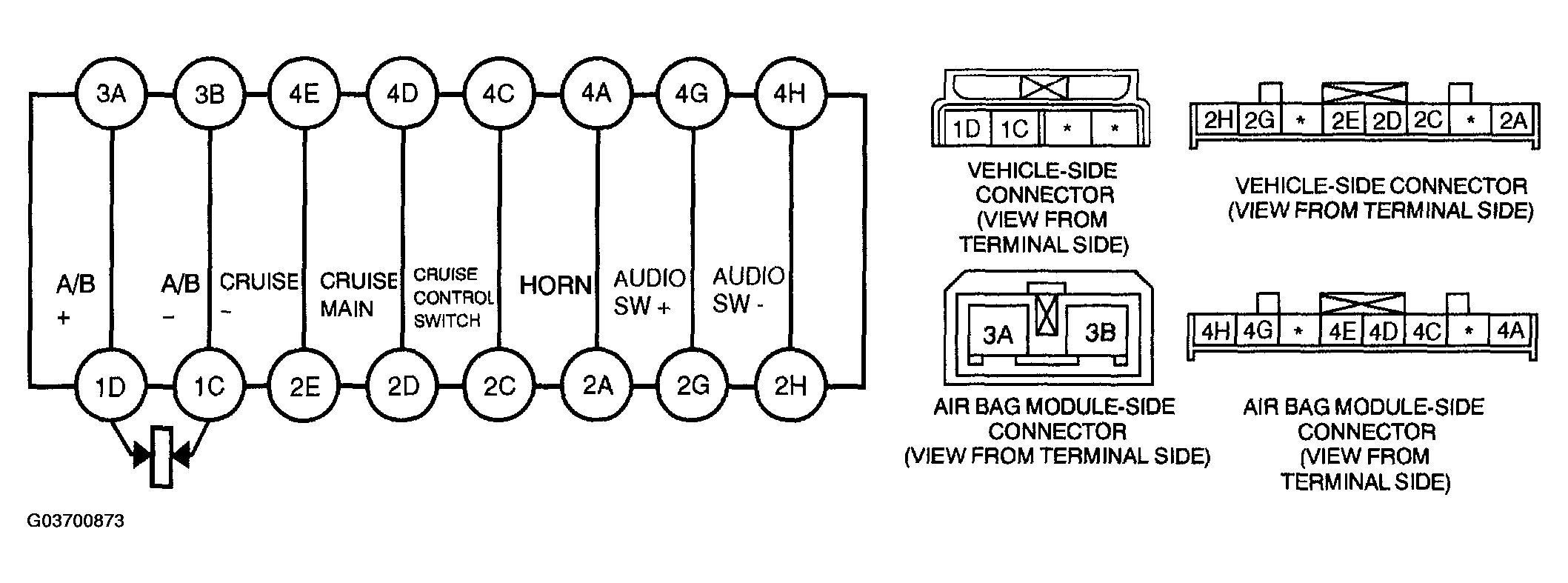

Fig 1: Clockspring Connector End View (Standard Deployment Control System)
G03700873Courtesy of MAZDA MOTORS CORP.
