DTC 3: Power Supply Of SAS Control Module: Notes

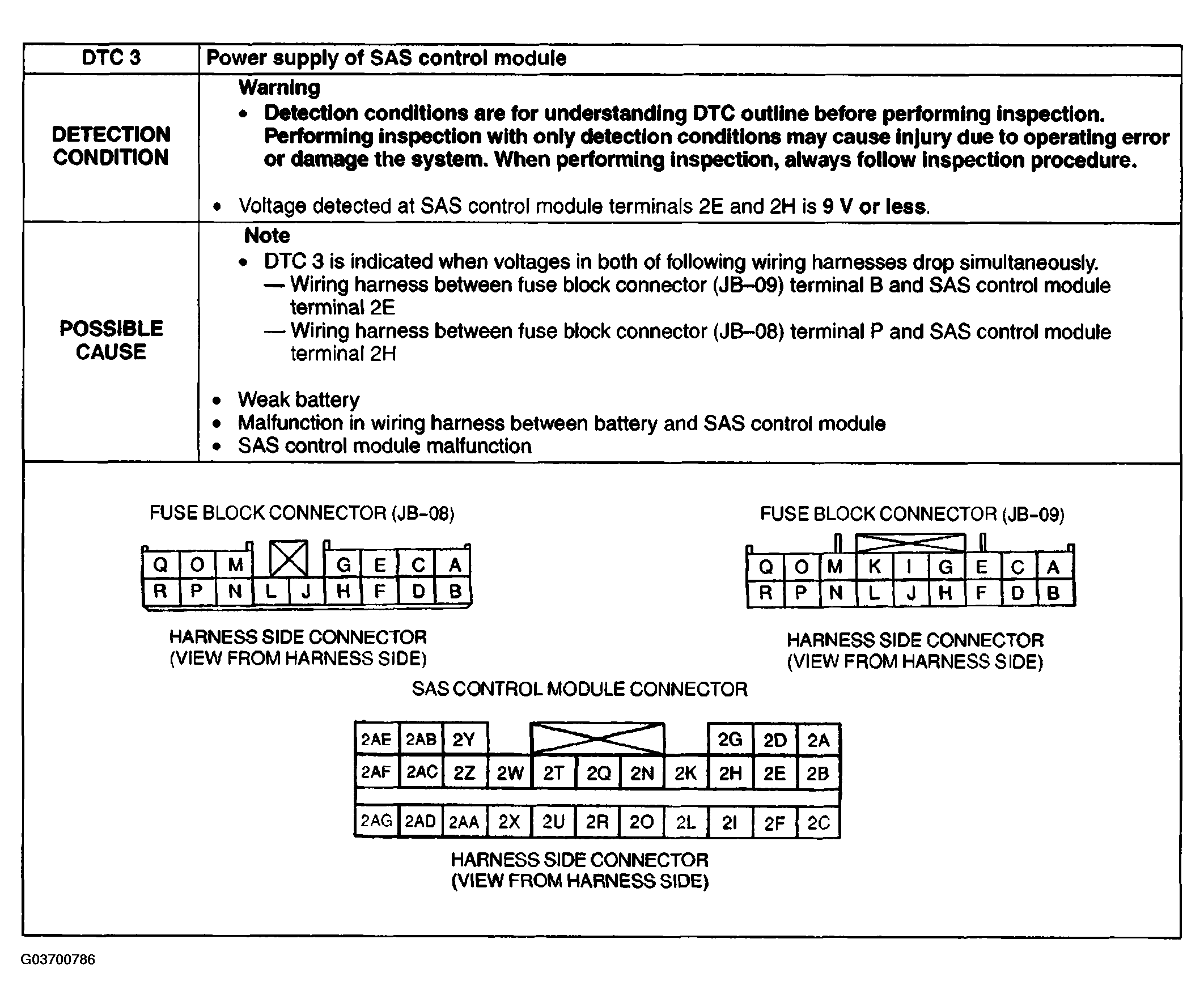

Fig 1: DTC 3 - Detection Condition And Possible Cause Chart
G03700786Courtesy of MAZDA MOTORS CORP.
