DTC 6: Driver-Side Air Bag Module System: Notes

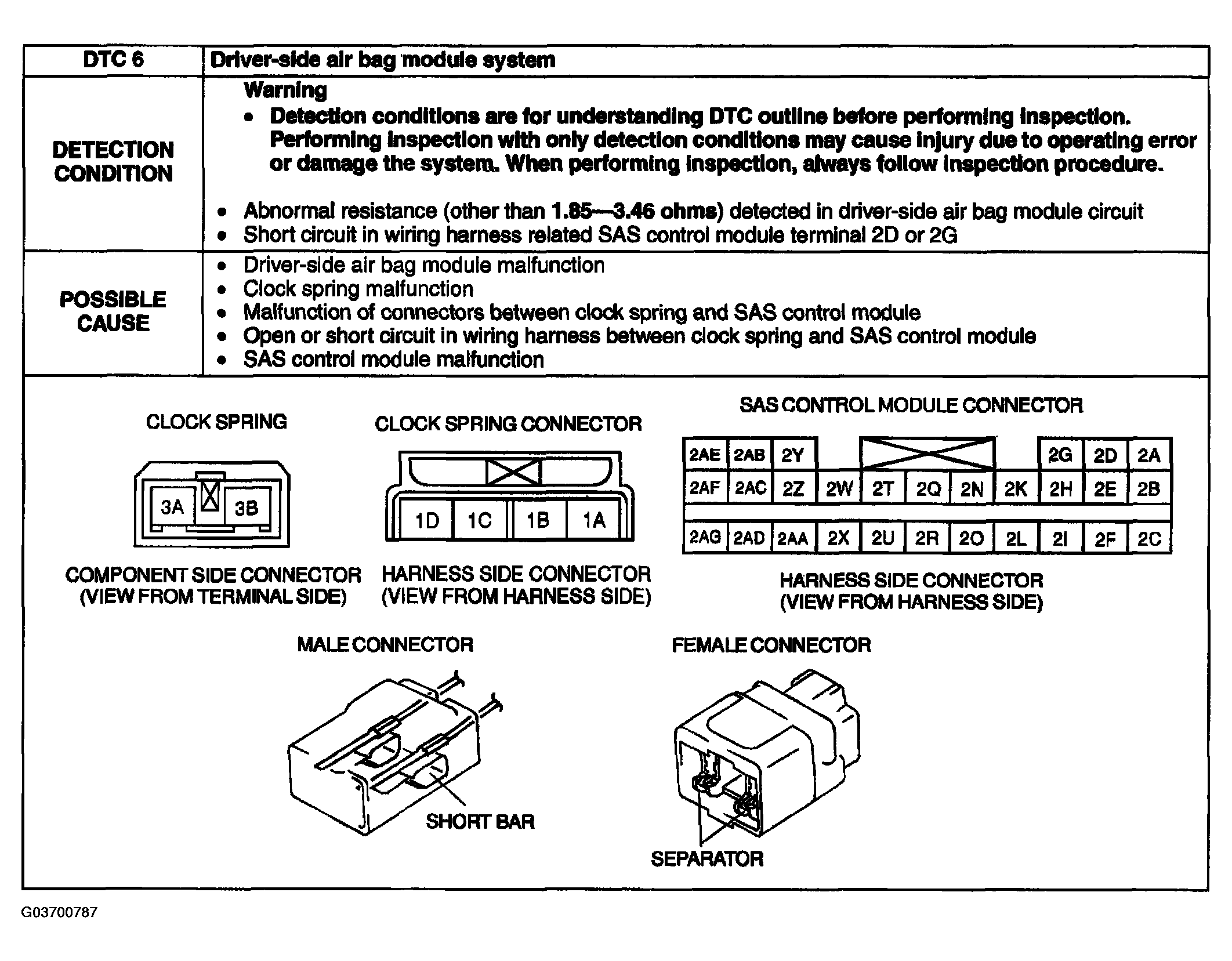

Fig 1: DTC 6 - Detection Condition And Possible Cause Chart
G03700787Courtesy of MAZDA MOTORS CORP.
