DTC 07: Brake Switch, Brake Switch 2: Notes

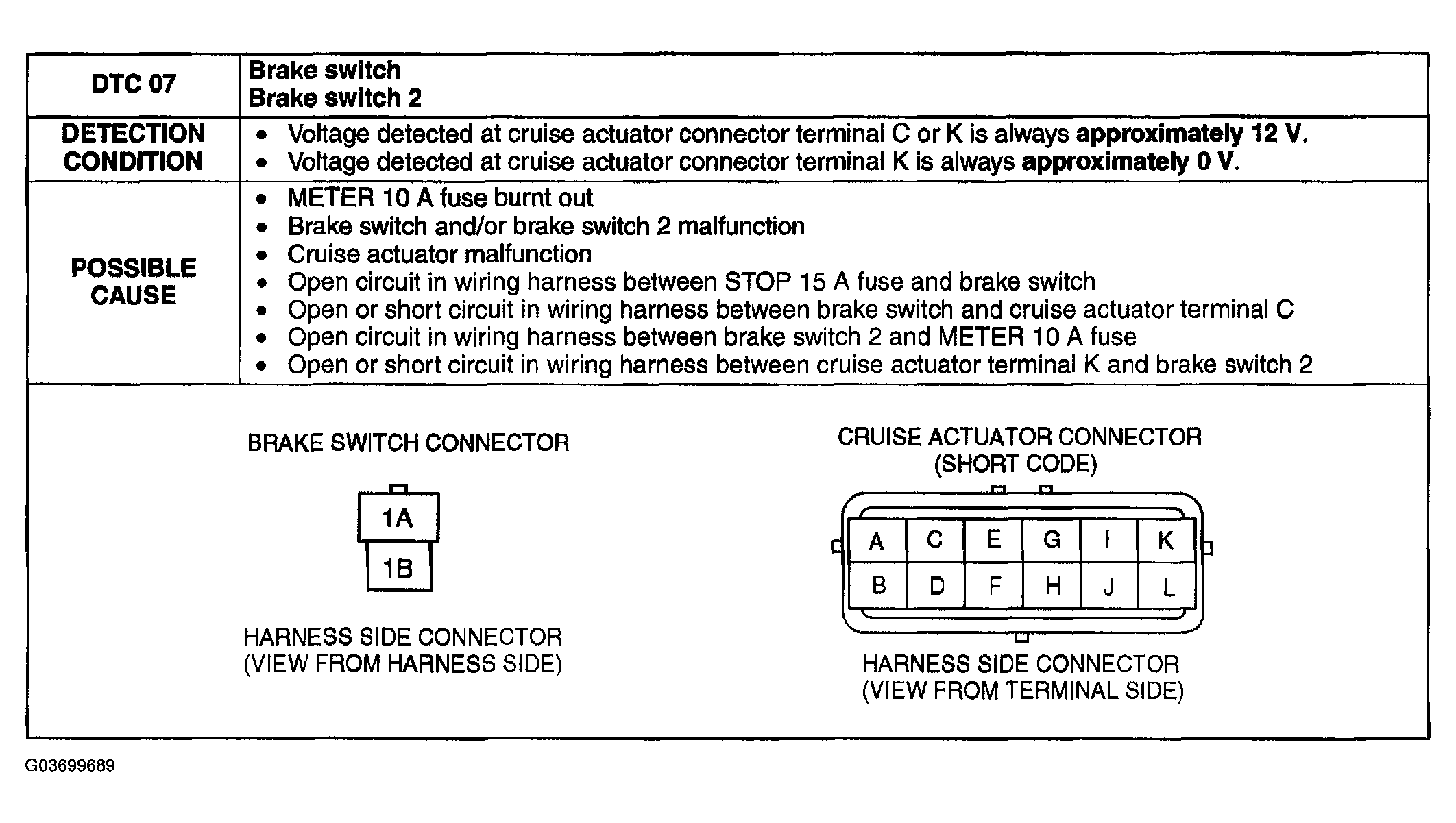

Fig 1: DTC 07 Detection Condition And Possible Causes
G03699689Courtesy of MAZDA MOTORS CORP.
