On-Board Diagnostic (Cruise Control System)
>>
Inspection Of DTCS For Operation Mode
>>
Operation Code List
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Operation Code List

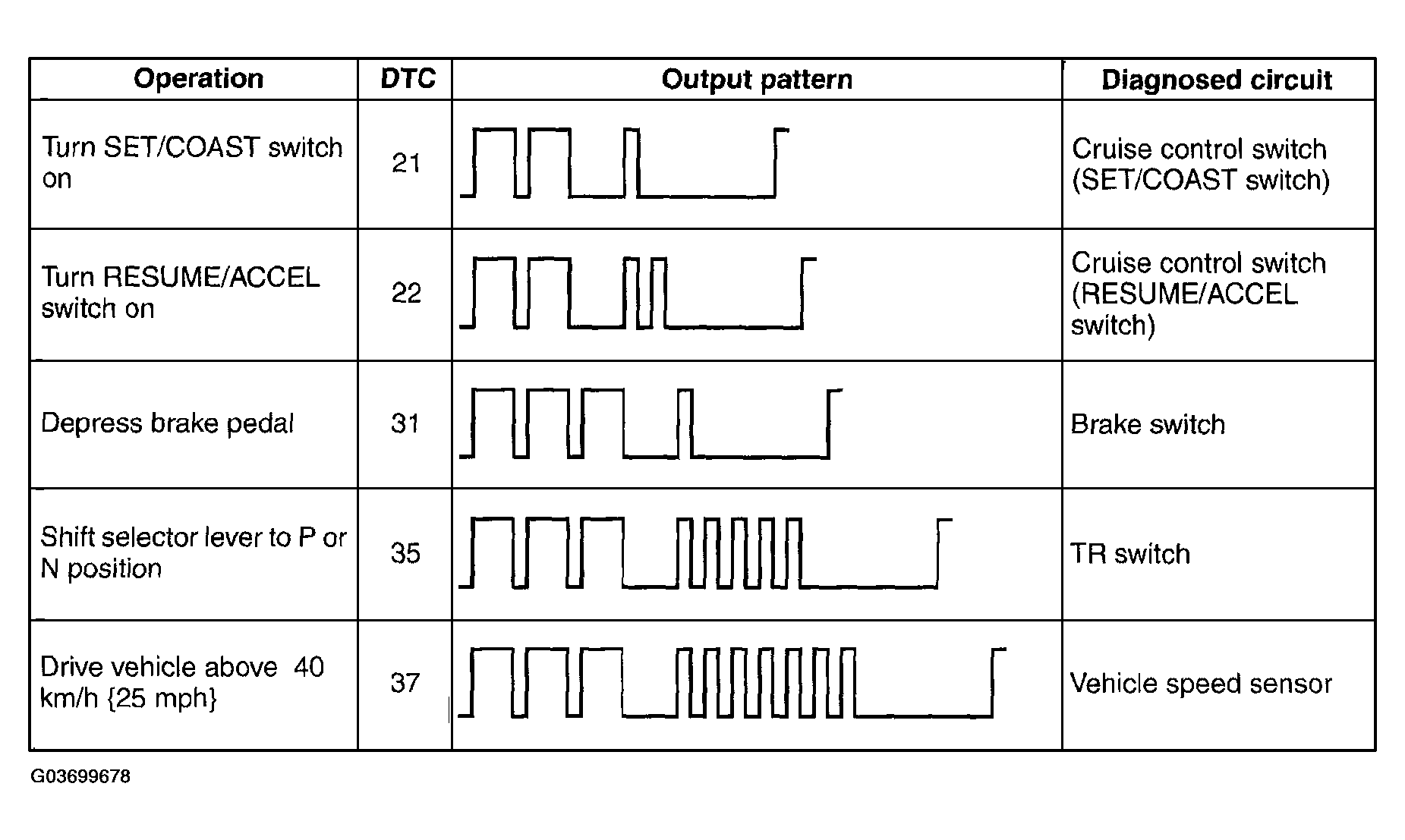

Fig 1: Identifying Operation Code List Chart
Courtesy of MAZDA MOTORS CORP.
