On-board Diagnostic Function

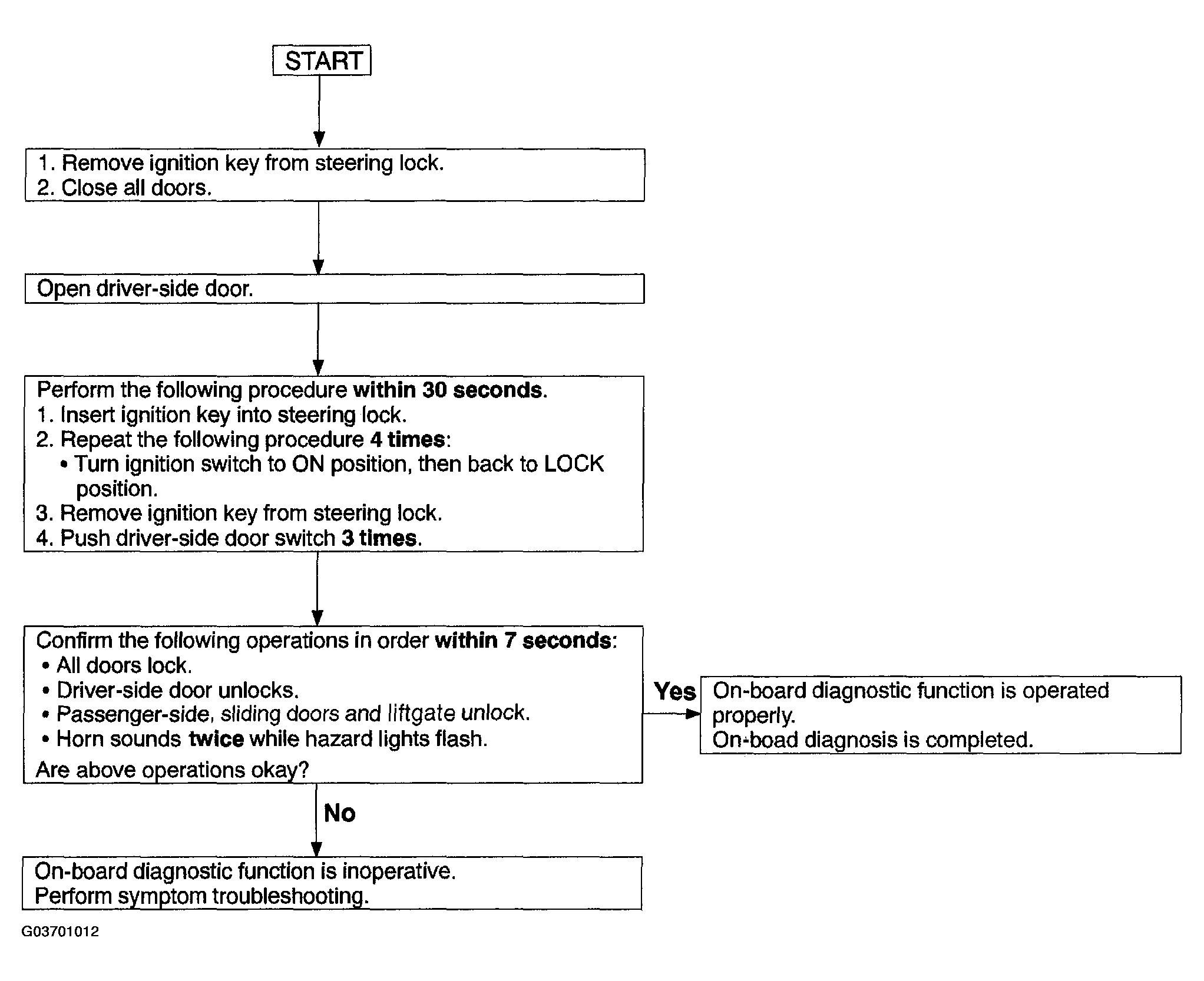

Fig 1: On-Board Diagnostic Function Flow Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
