Front Turn Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the fasteners, then slightly bend back the mudguard.
  3. Disconnect the connector.
  4. Remove the socket, then remove the front turn light bulb.
  5. Install in the reverse order of removal.

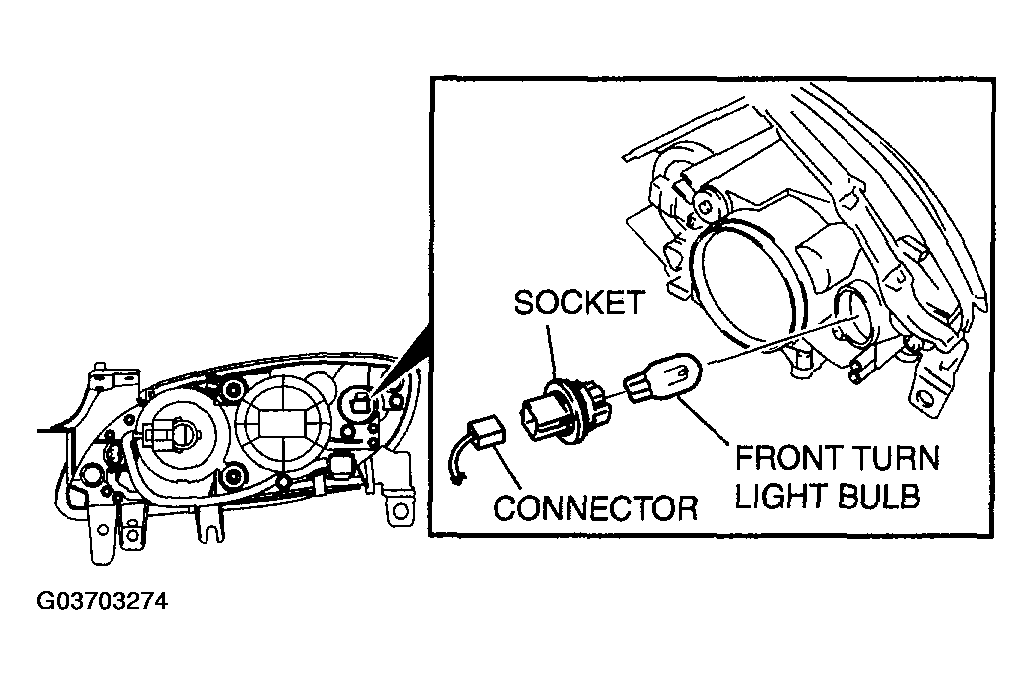

    Fig 1: Removing Socket And Front Turn Light Bulb
    G03703274Courtesy of MAZDA MOTORS CORP.
