Instrument Cluster Connector End View

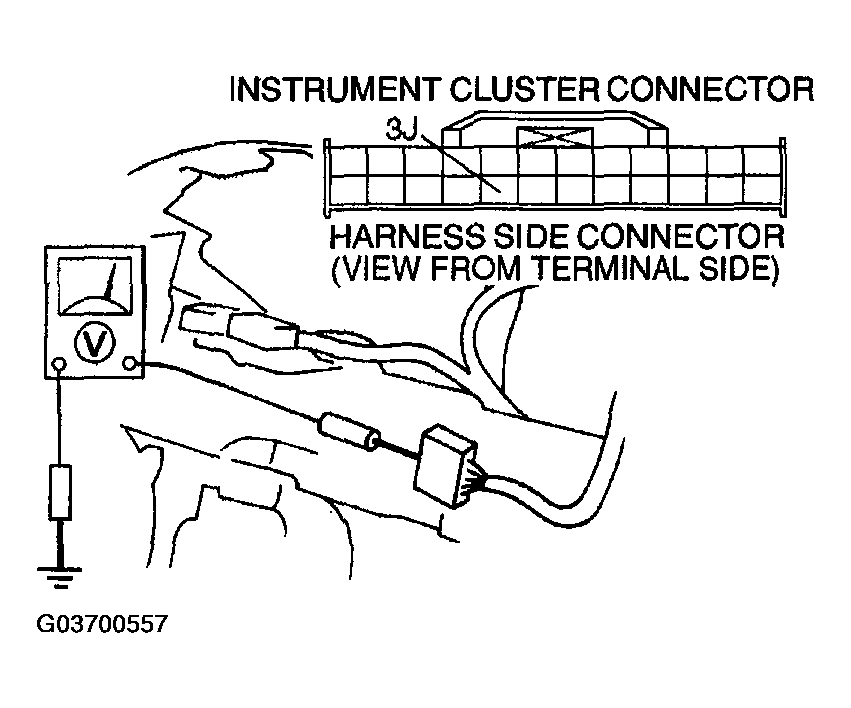

Fig 1: Instrument Cluster Connector End View
G03700557Courtesy of MAZDA MOTORS CORP.

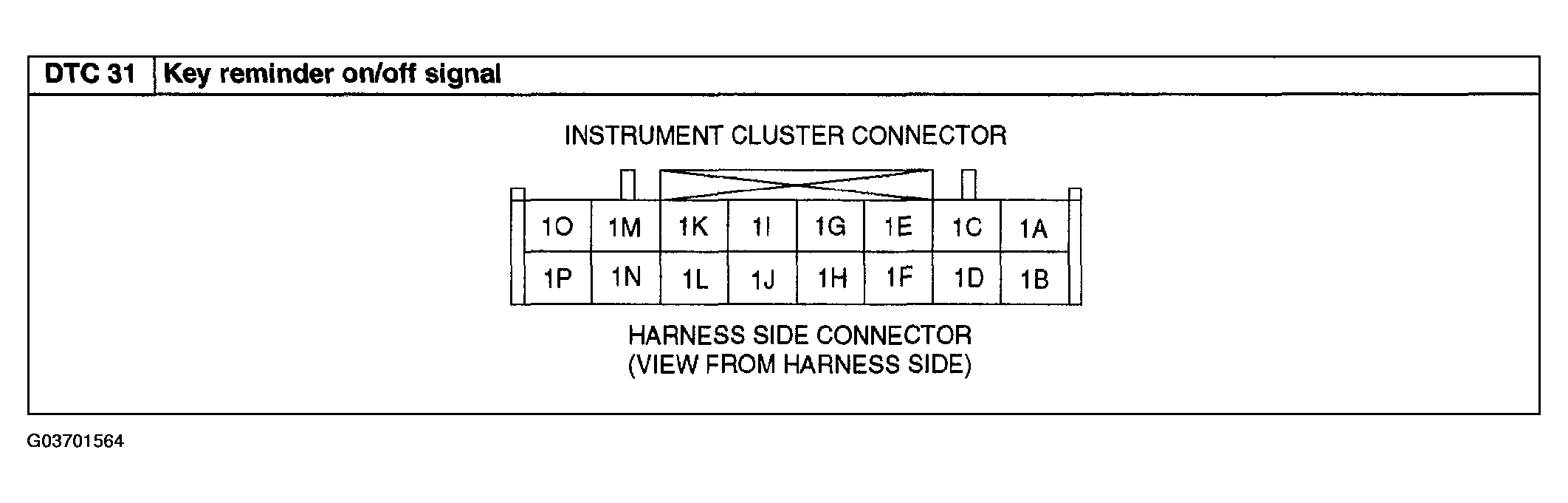

Fig 1: Instrument Cluster Connector End View
G03701564Courtesy of MAZDA MOTORS CORP.

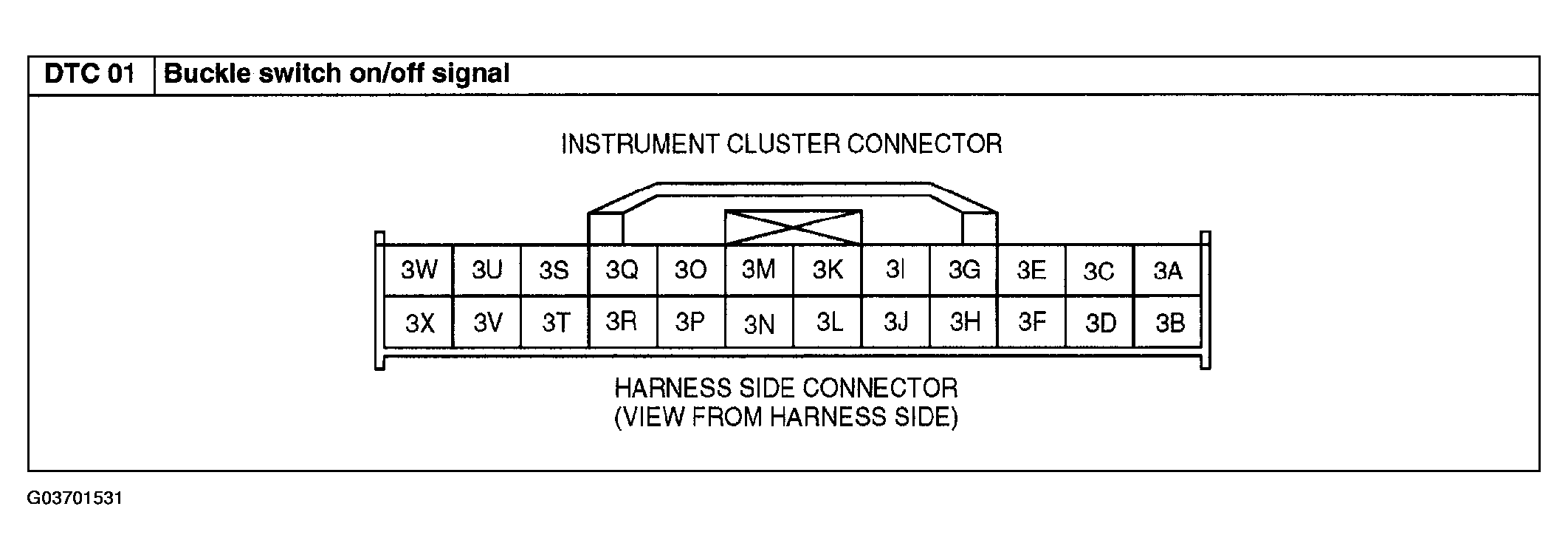

Fig 1: Instrument Cluster Connector End View
G03701531Courtesy of MAZDA MOTORS CORP.

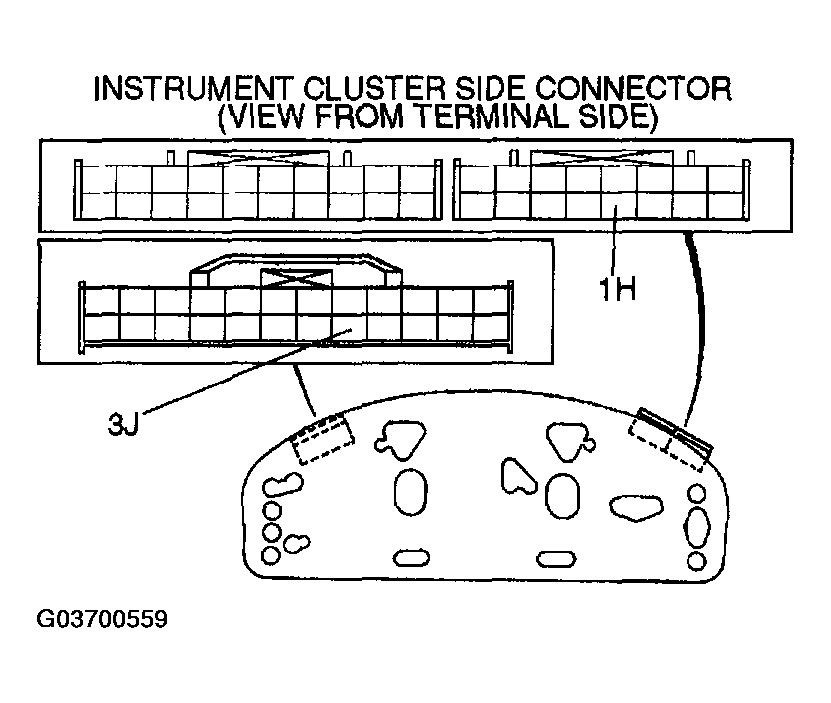

Fig 1: Instrument Cluster Connector End View
G03700559Courtesy of MAZDA MOTORS CORP.

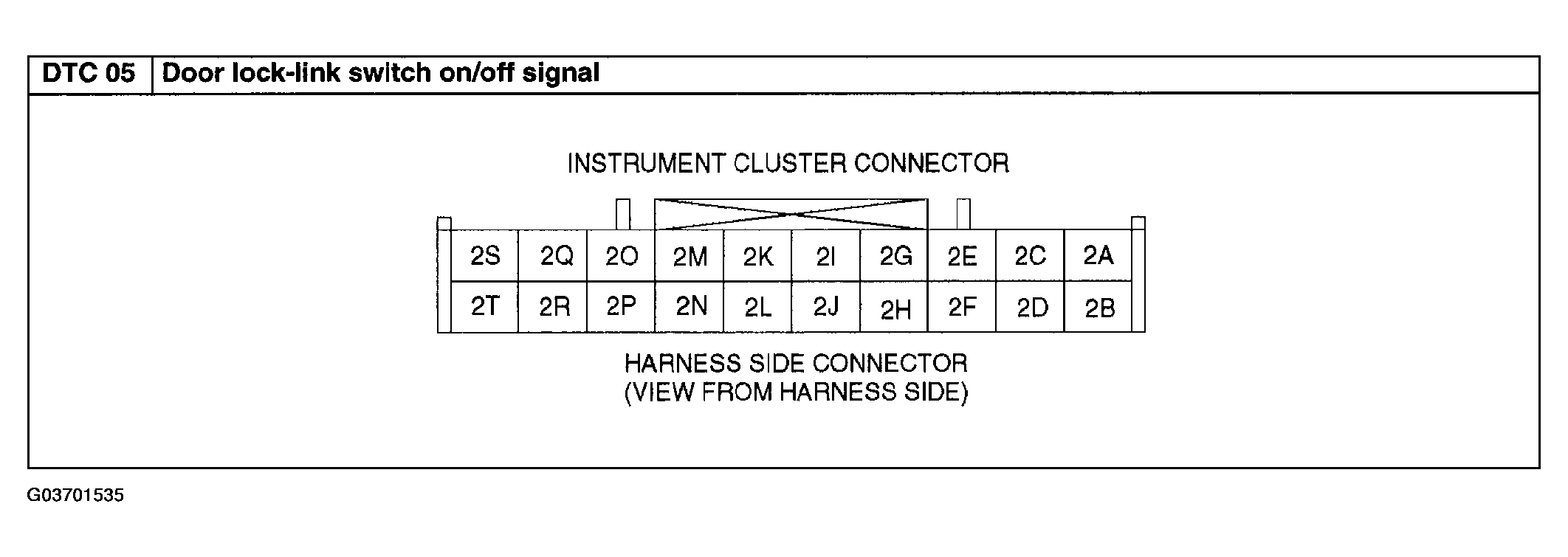

Fig 1: Instrument Cluster Connector End View
G03701535Courtesy of MAZDA MOTORS CORP.
