Technical Data [Suspension)
>>
Suspension Technical Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Suspension Technical Data

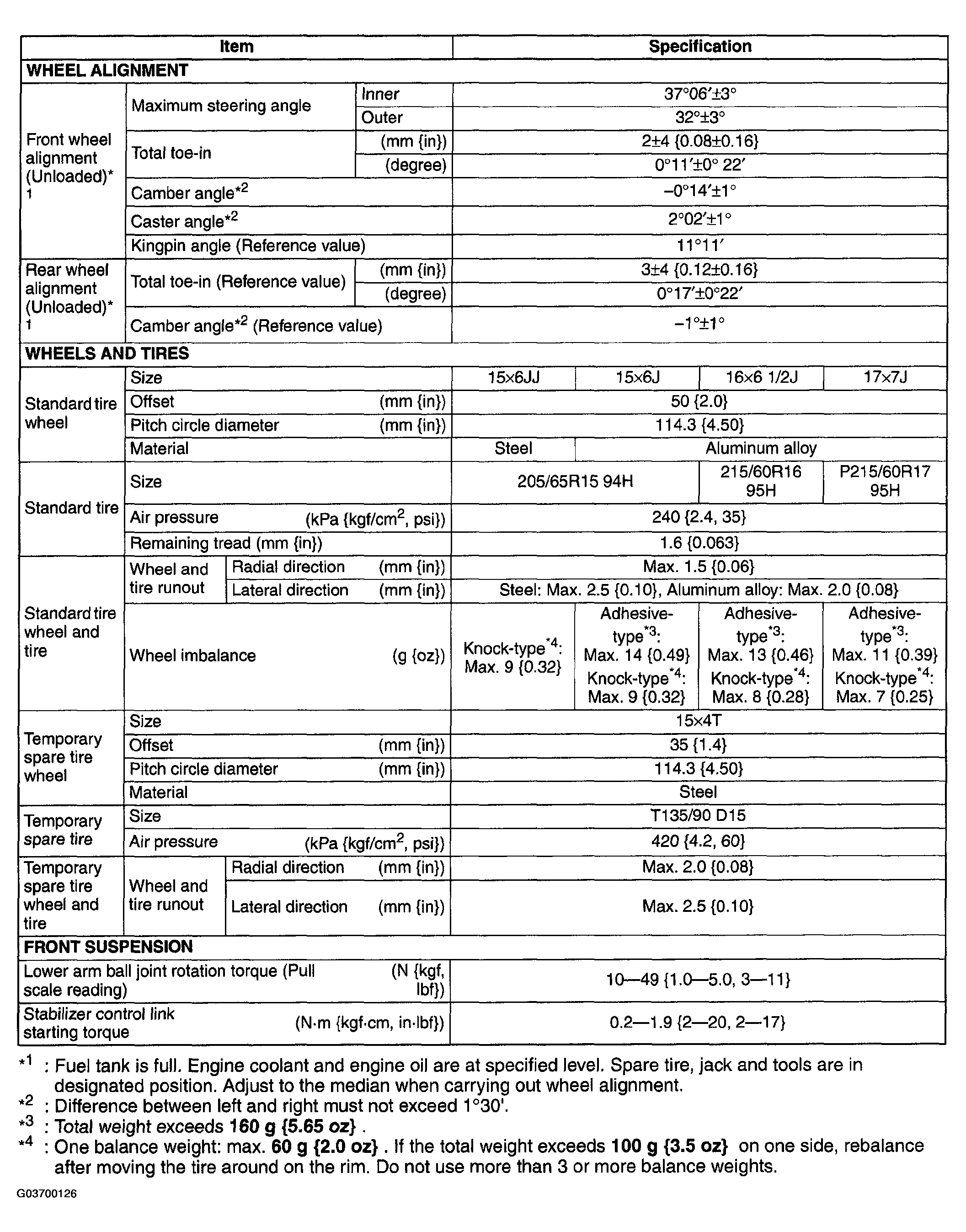

Fig 1: Suspension Technical Data Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
