Component Locations












Fuse Box Locations

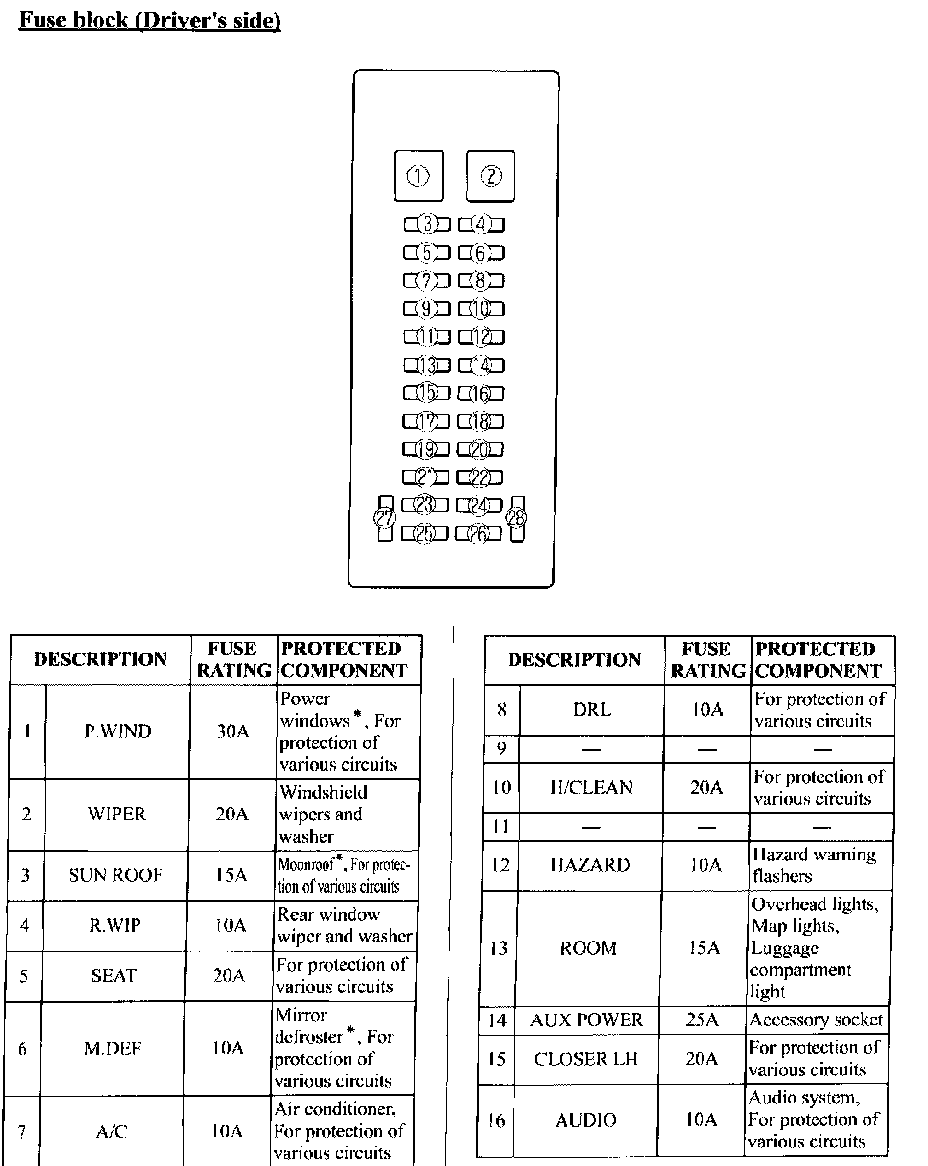

Fuse ID Passenger Compartment Box

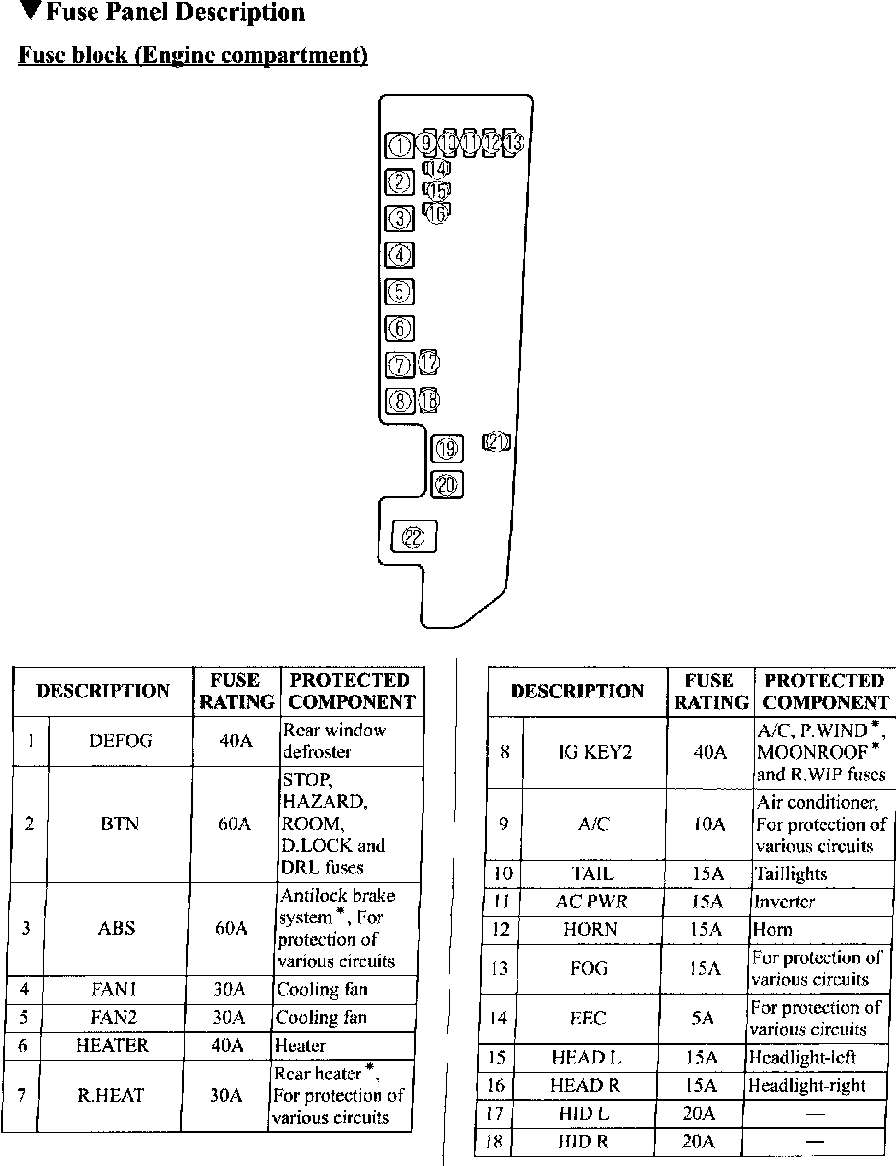

Fuse ID Engine Compartment
