Freeze Frame Data

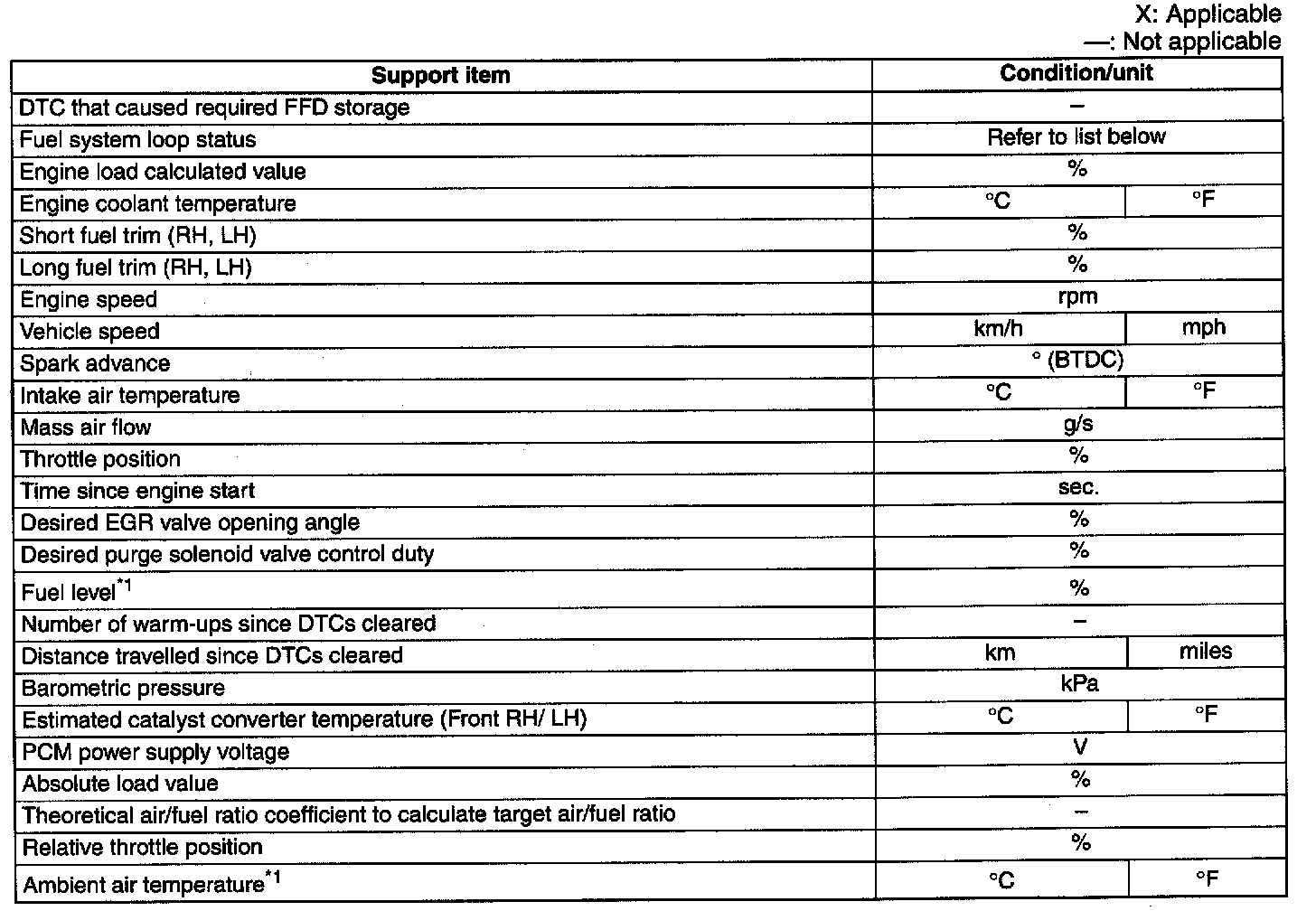

Freeze Frame Data Monitor Table






NOTE: The data will remain in the memory even if another emission-related DTC is stored, including the Misfire and Fuel System Monitor DTCs.
