Cotter Pin Assembly Note

  1. Bend the cotter pin so that its tip does not project from the oil pump cover mounting surface.

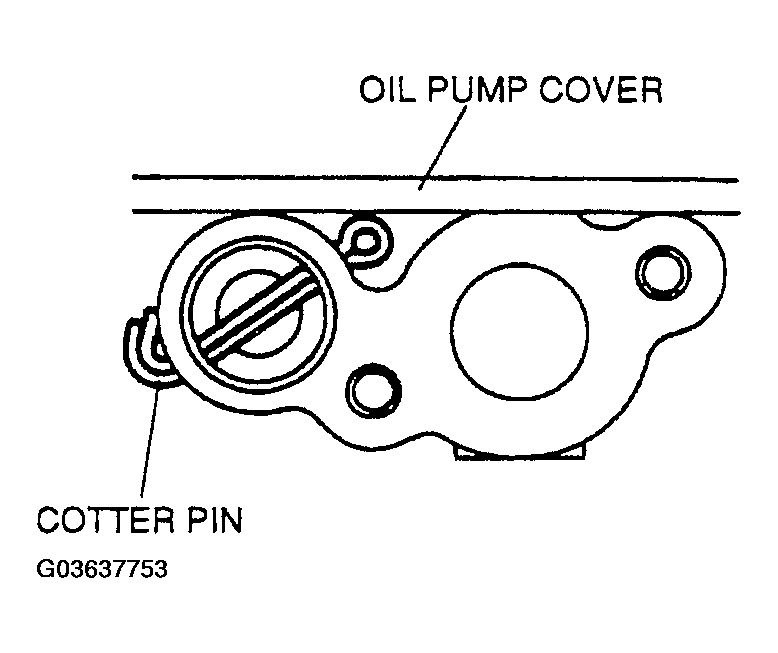

    Fig 1: Identifying Cotter Pin
    G03637753Courtesy of MAZDA MOTORS CORP.
