PID/DATA Monitor Table (Reference)

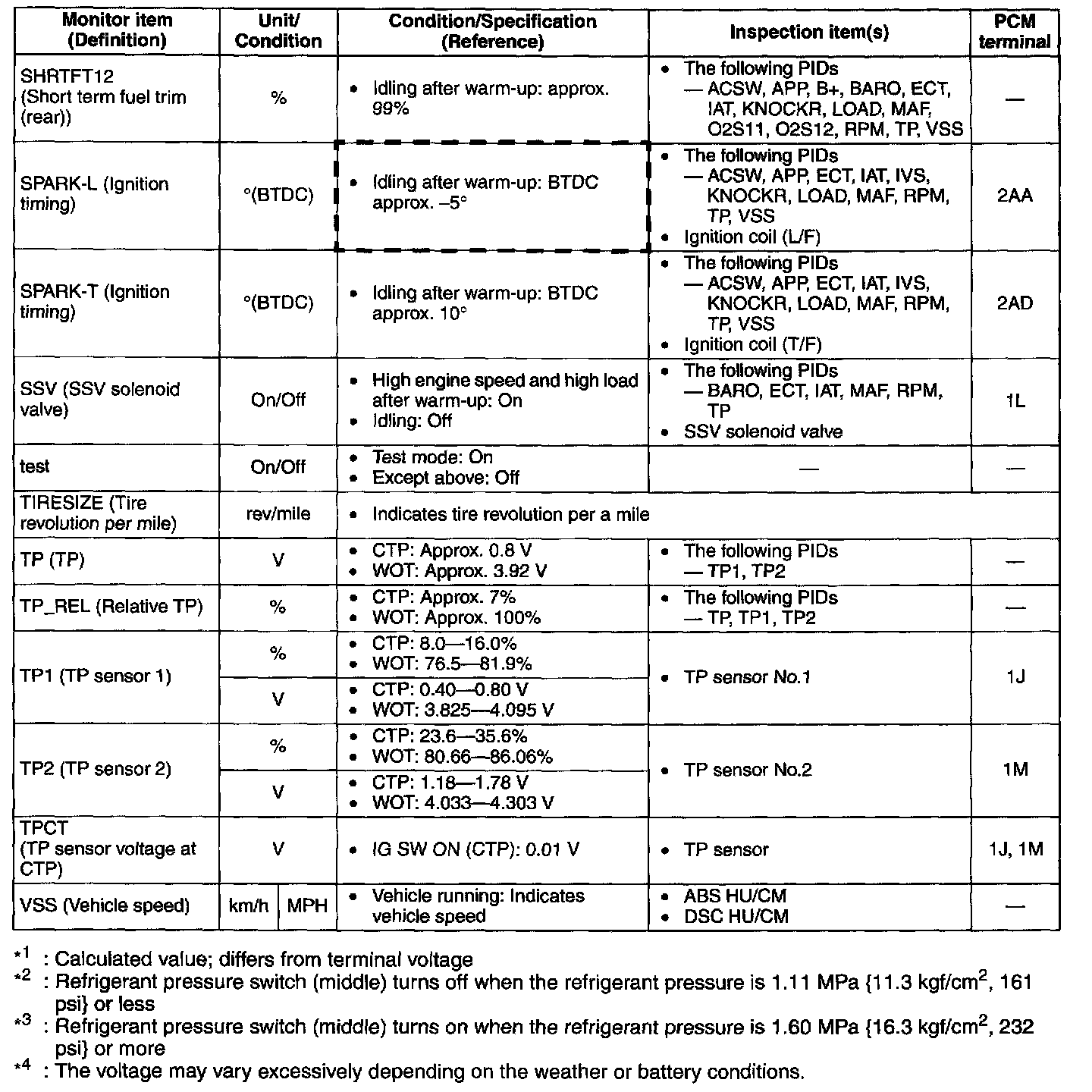

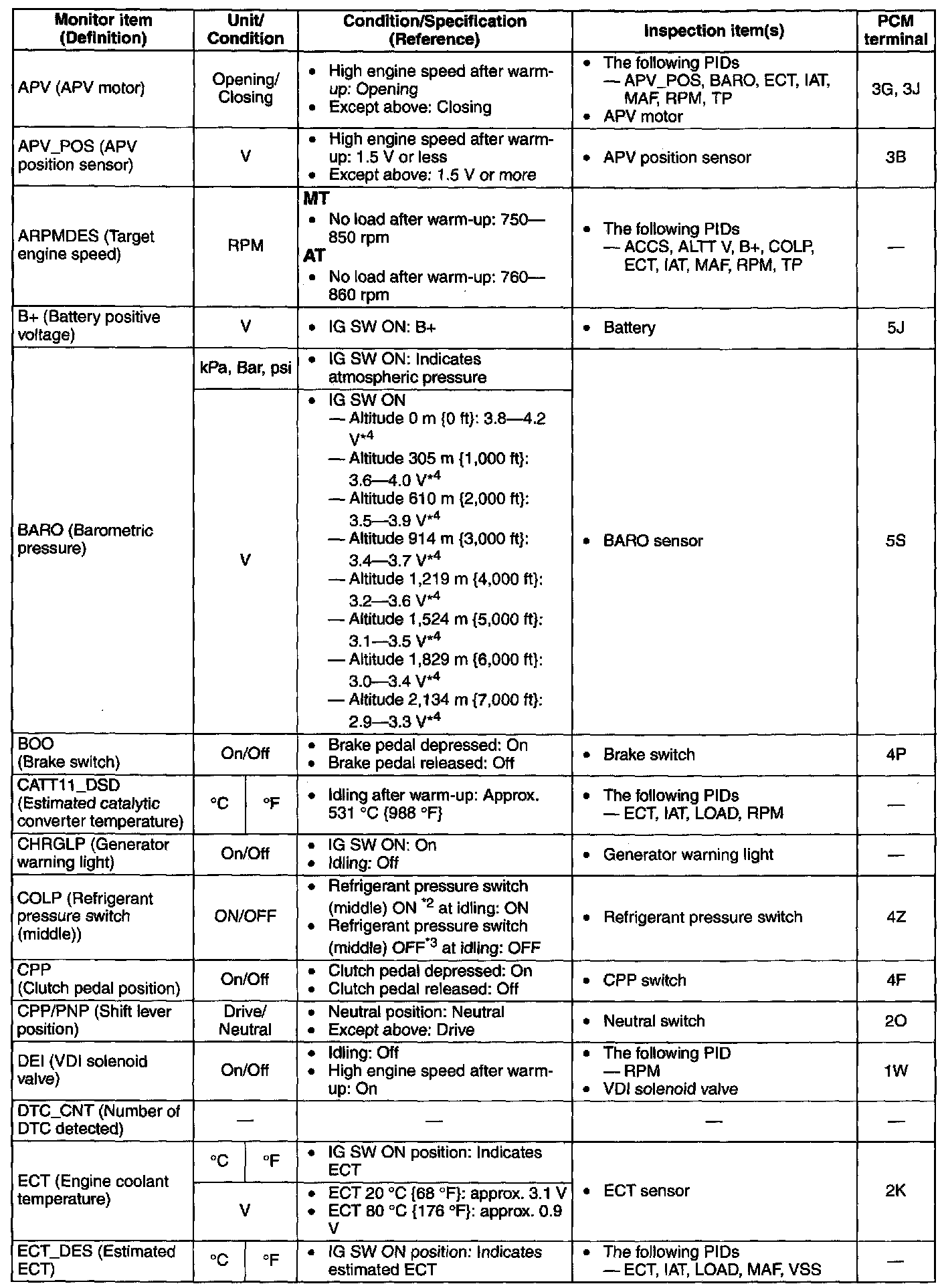

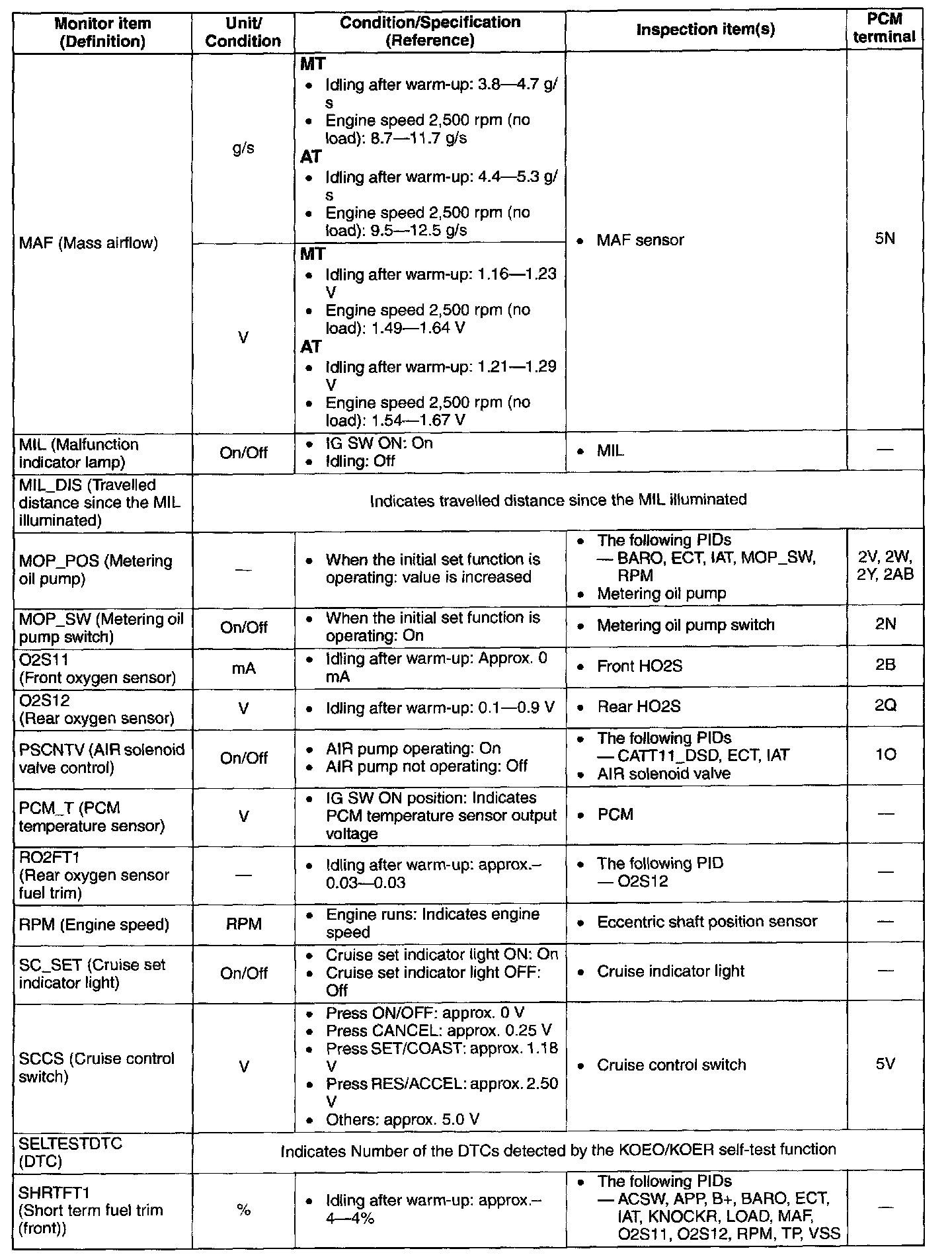

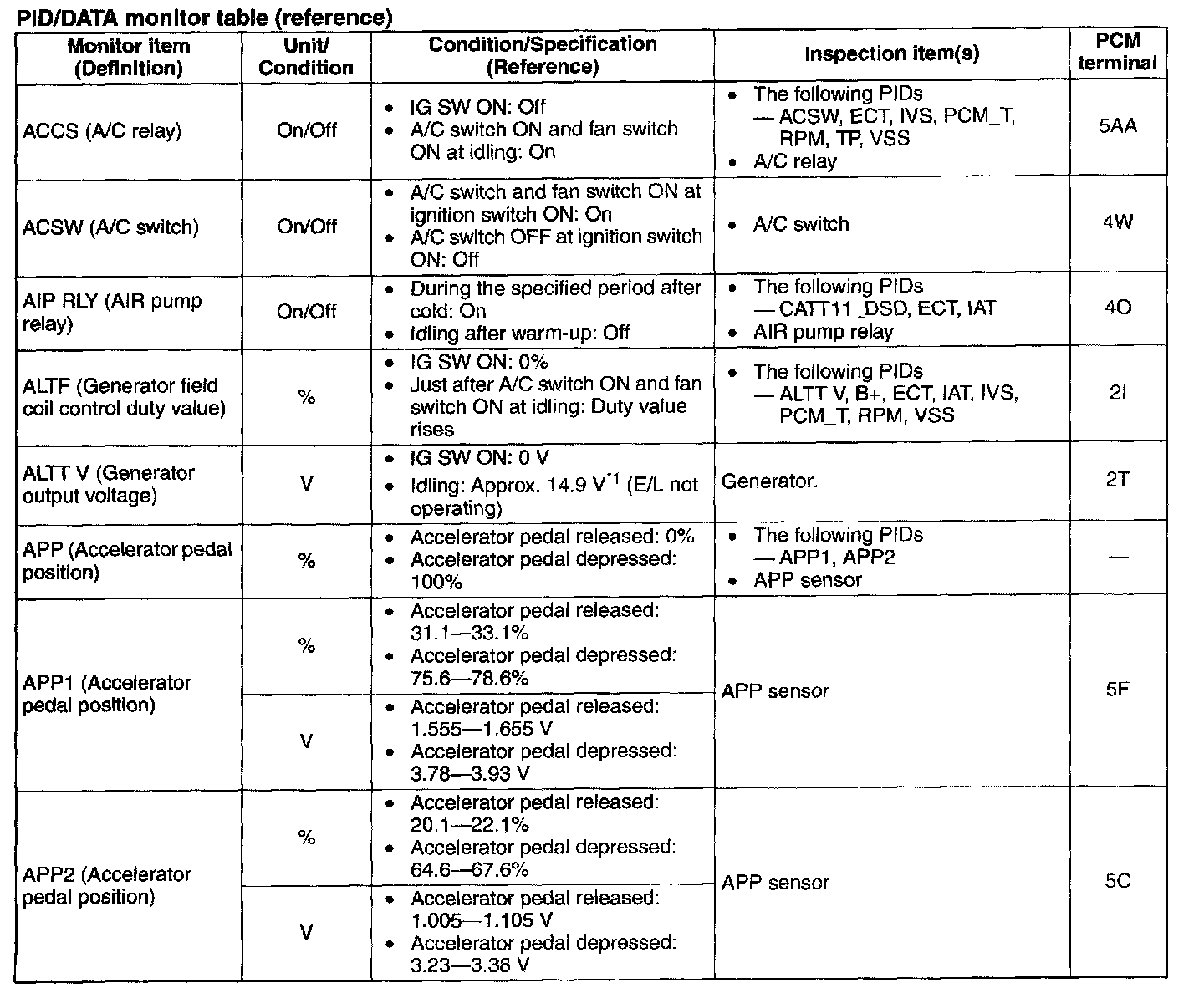

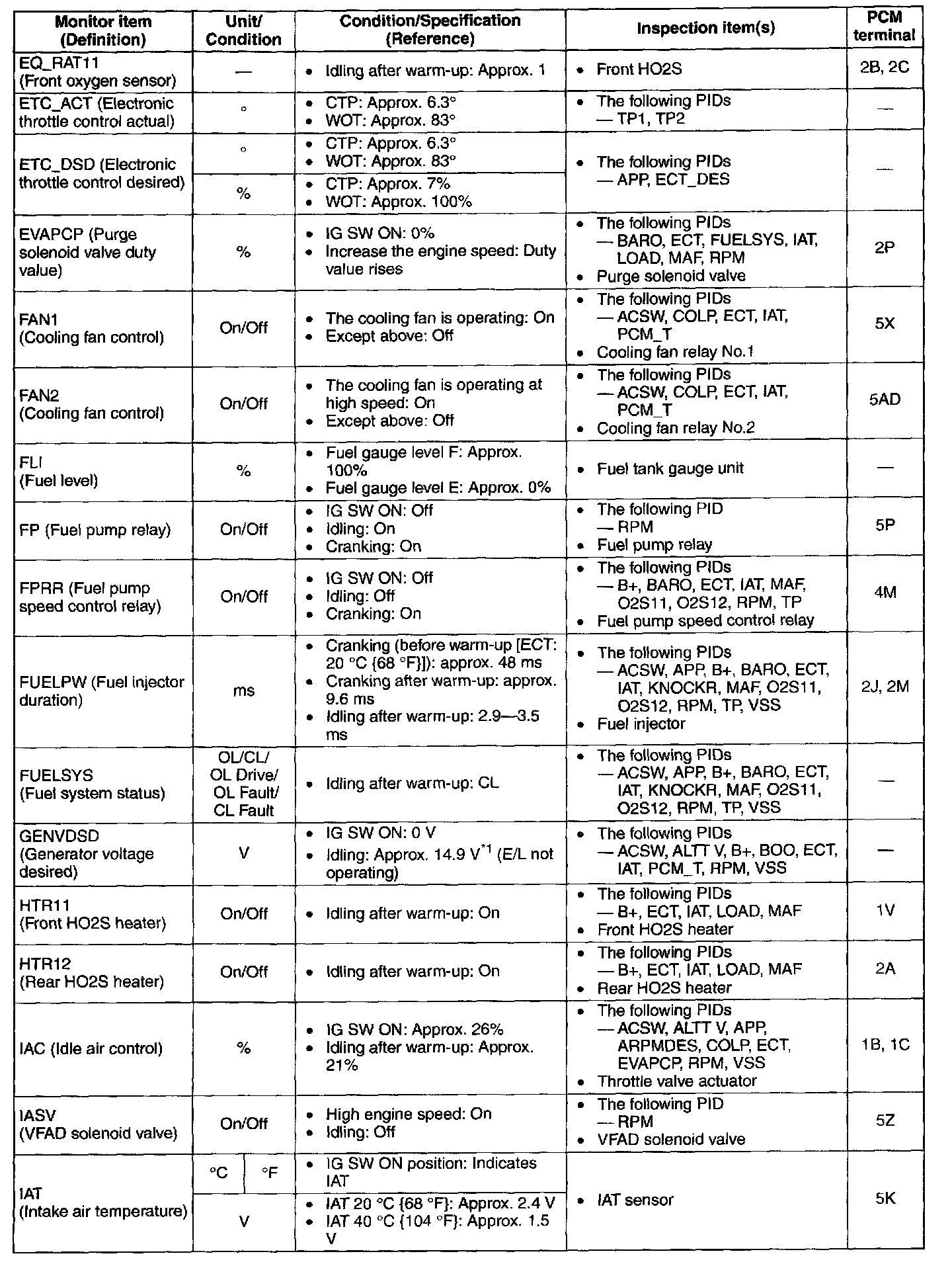

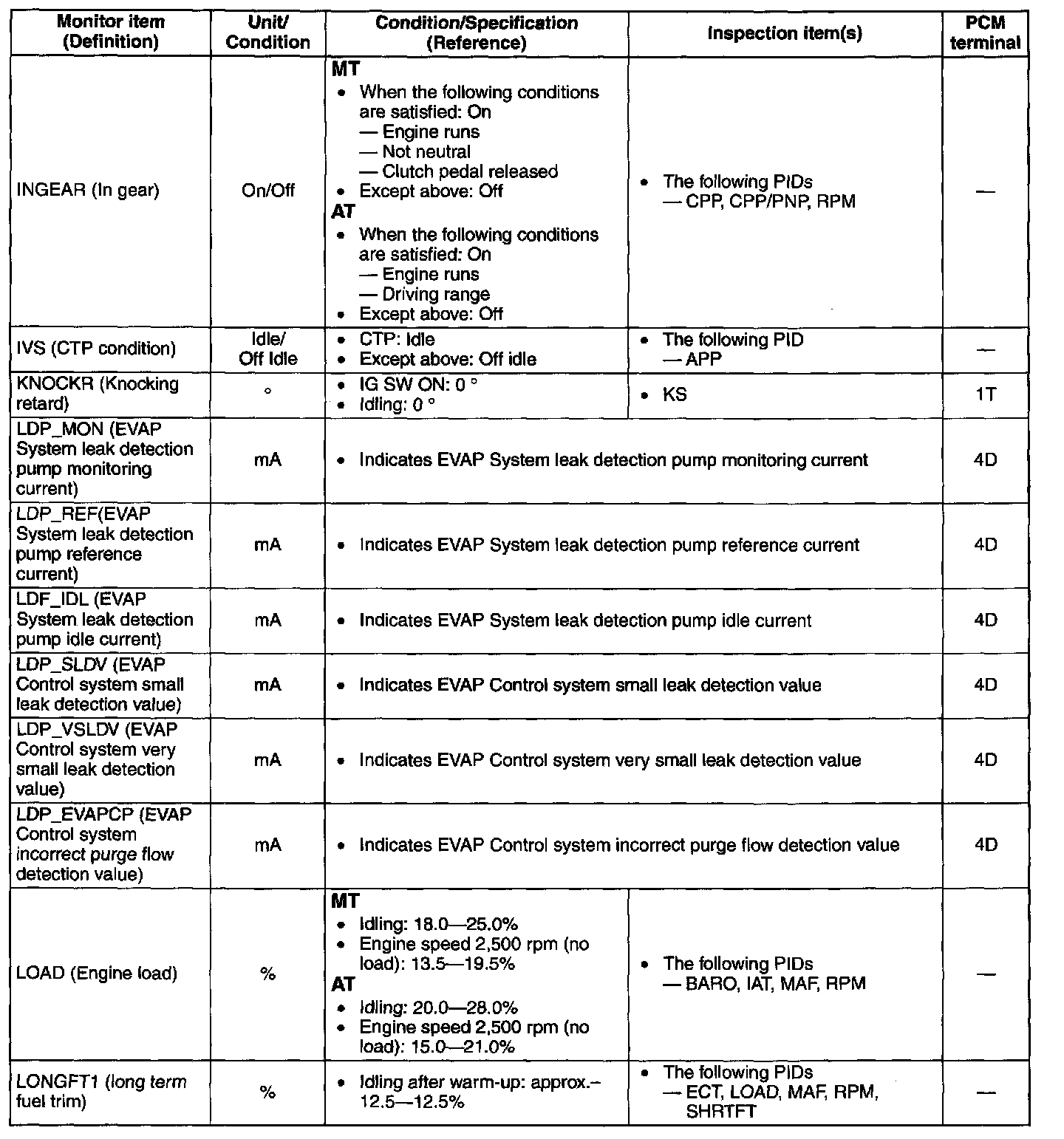

PID Data Monitor Table (Reference) Part 1:



PID Data Monitor Table (Reference) Part 2:



PID Data Monitor Table (Reference) Part 3:



PID Data Monitor Table (Reference) Part 4:



PID Data Monitor Table (Reference) Part 5:



PID Data Monitor Table (Reference) Part 6:
