Control Module: Service and Repair

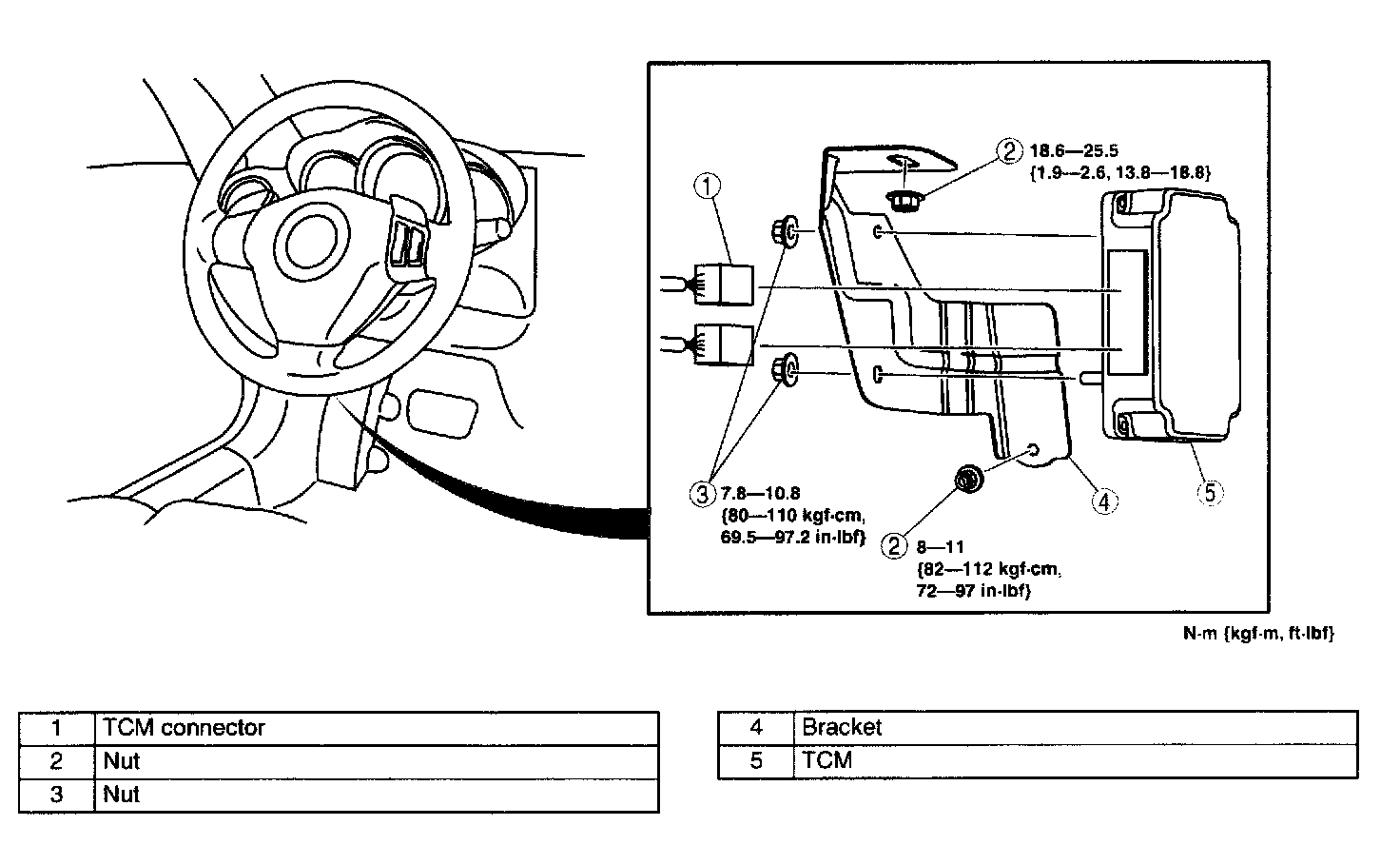

TCM REMOVAL/INSTALLATION
1. Remove the engine cover.
2. Remove the battery cover.
3. Disconnect the negative battery cable.
4. Remove in the order indicated in the table.





5. Install in the reverse order of removal.
