Removal and Installation

Disconnect the negative battery cable. See BATTERY DISCONNECT .
Disconnect the clutch pedal position (CPP) electrical connector.

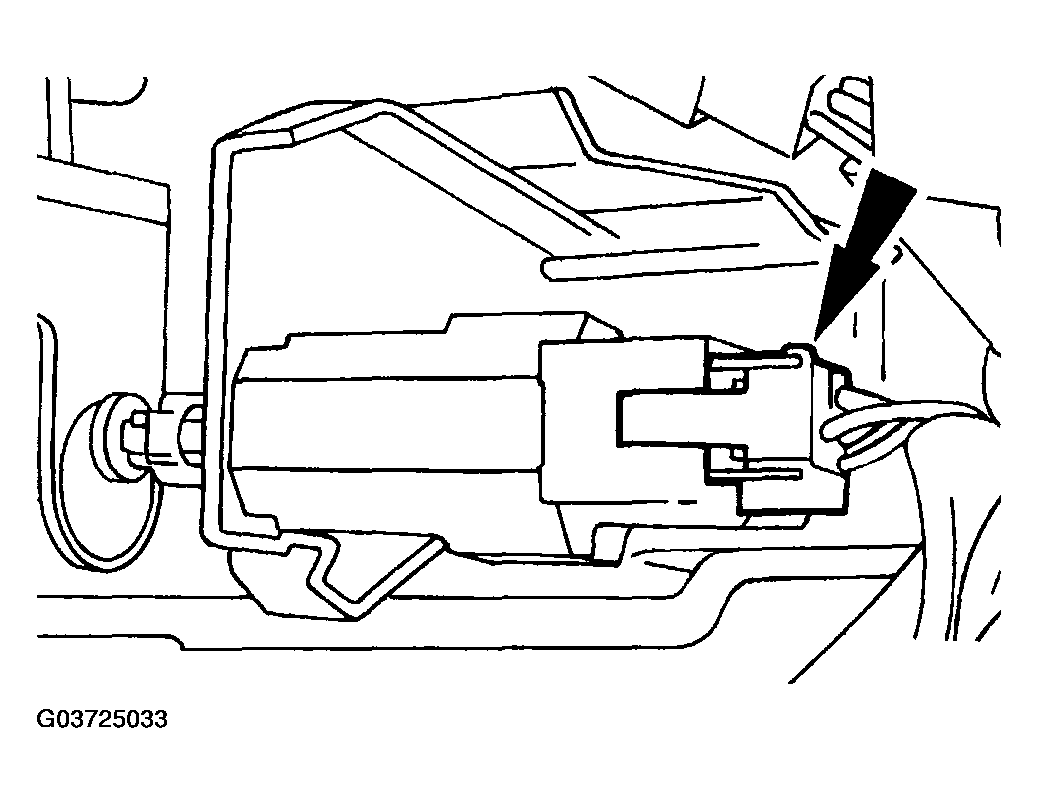

Fig 1: Disconnecting Clutch Pedal Position (CPP) Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Remove the CPP locknut and the switch.

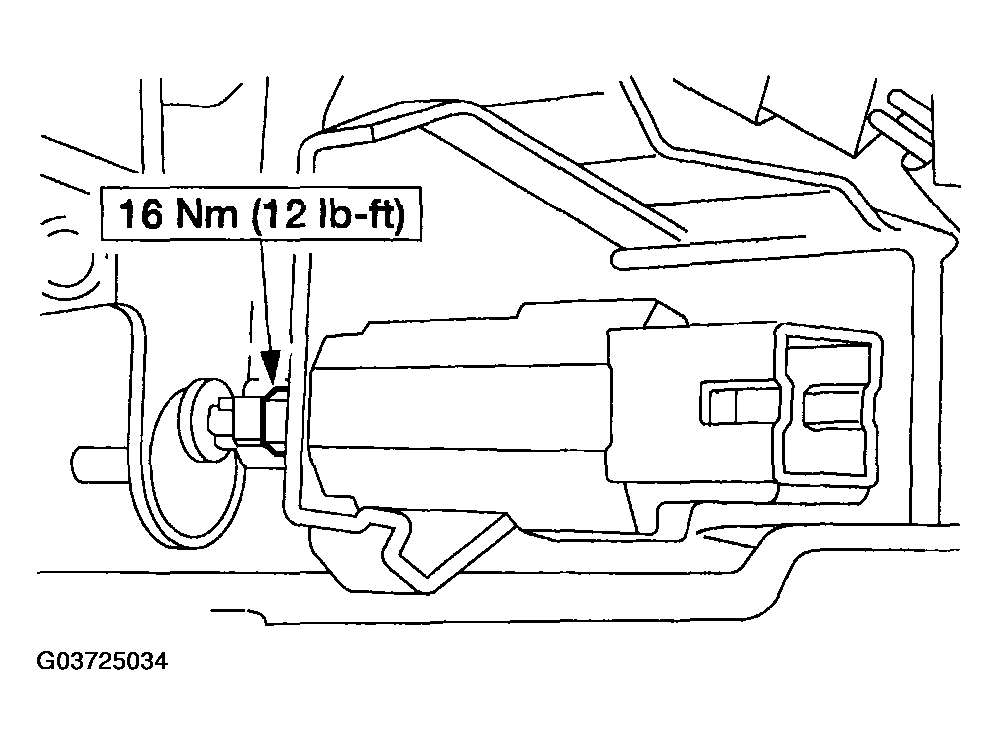

Fig 2: Removing CPP Locknut And Switch & Torque Specifications
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
