Idle Air Control (IAC) Valve - 3.0L (4V): Notes

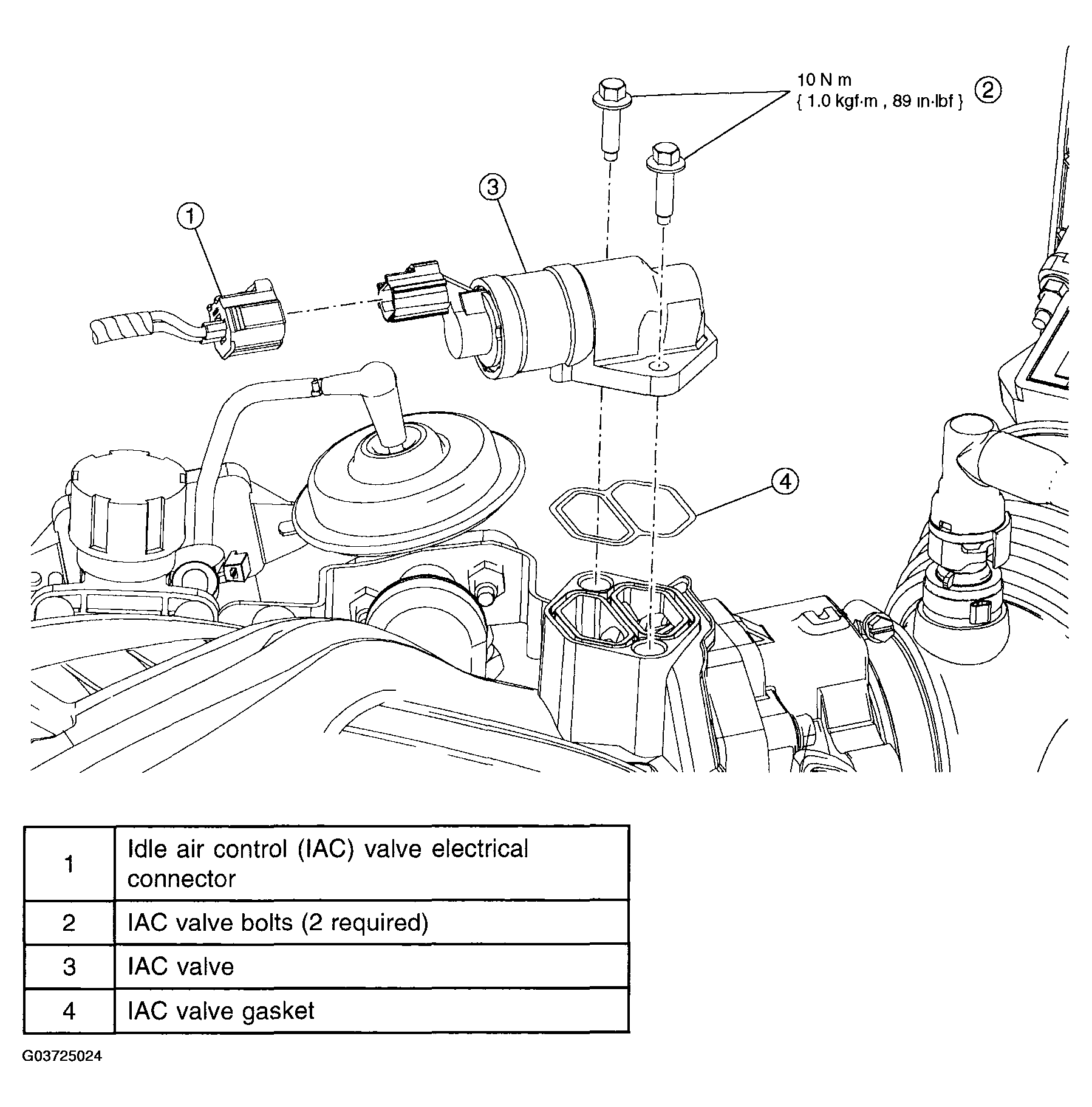

Fig 1: Removing/Installing Idle Air Control (IAC) Valve & Torque Specifications - 3.0L (4V)
G03725024Courtesy of MAZDA MOTORS CORP.
