Exhaust System 2.3L Engine

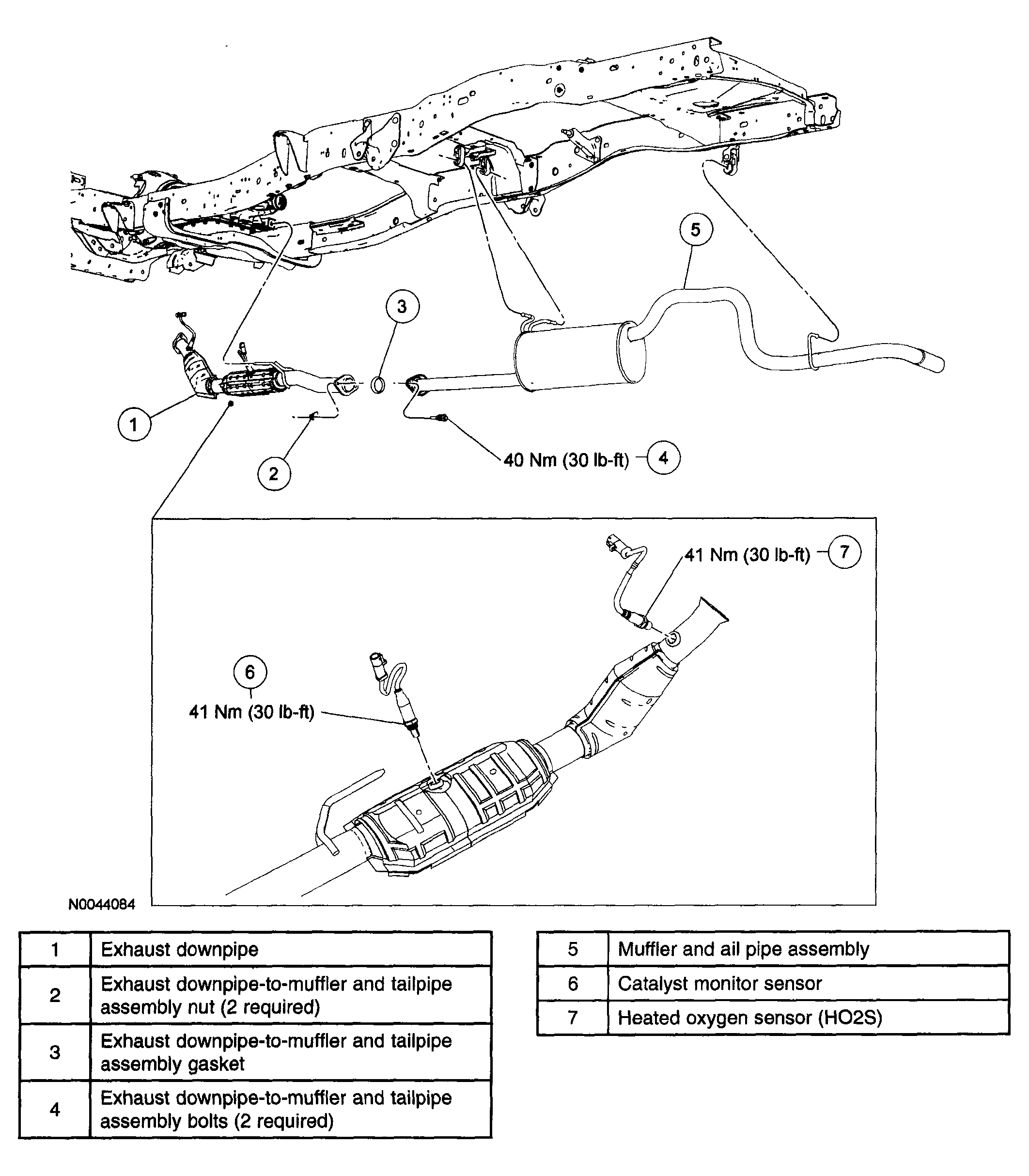

Fig 1: Engine Exhaust System Replacement Components With Torque Specifications 2.3L
G04308168Courtesy of MAZDA MOTORS CORP.
