Function Selector Switch Assembly, Front Connector End View (C294d)

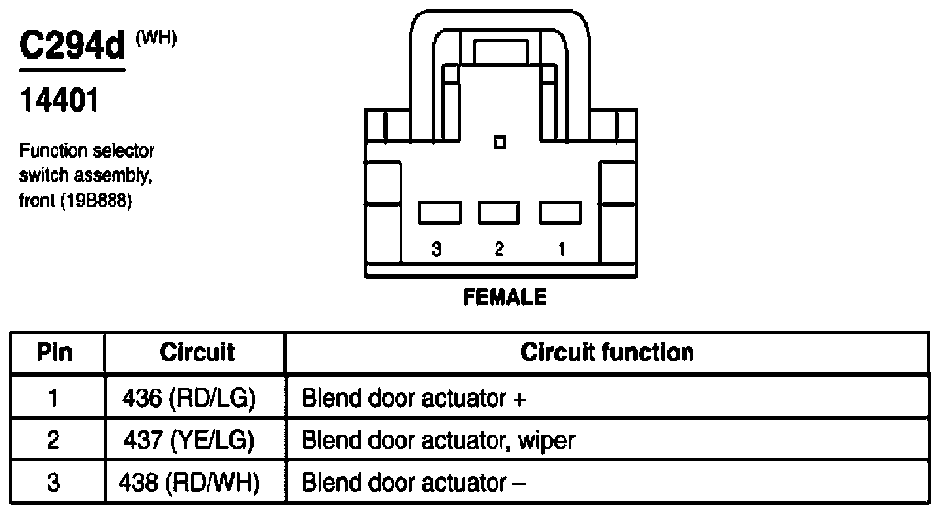

Fig 1: Function Selector Switch Assembly, Front Connector End View (C294d)
G07847633Courtesy of FORD MOTOR CO.
