Restraints Control Module (RCM): Notes

NOTE:
  • Vehicle with consolette tray shown.

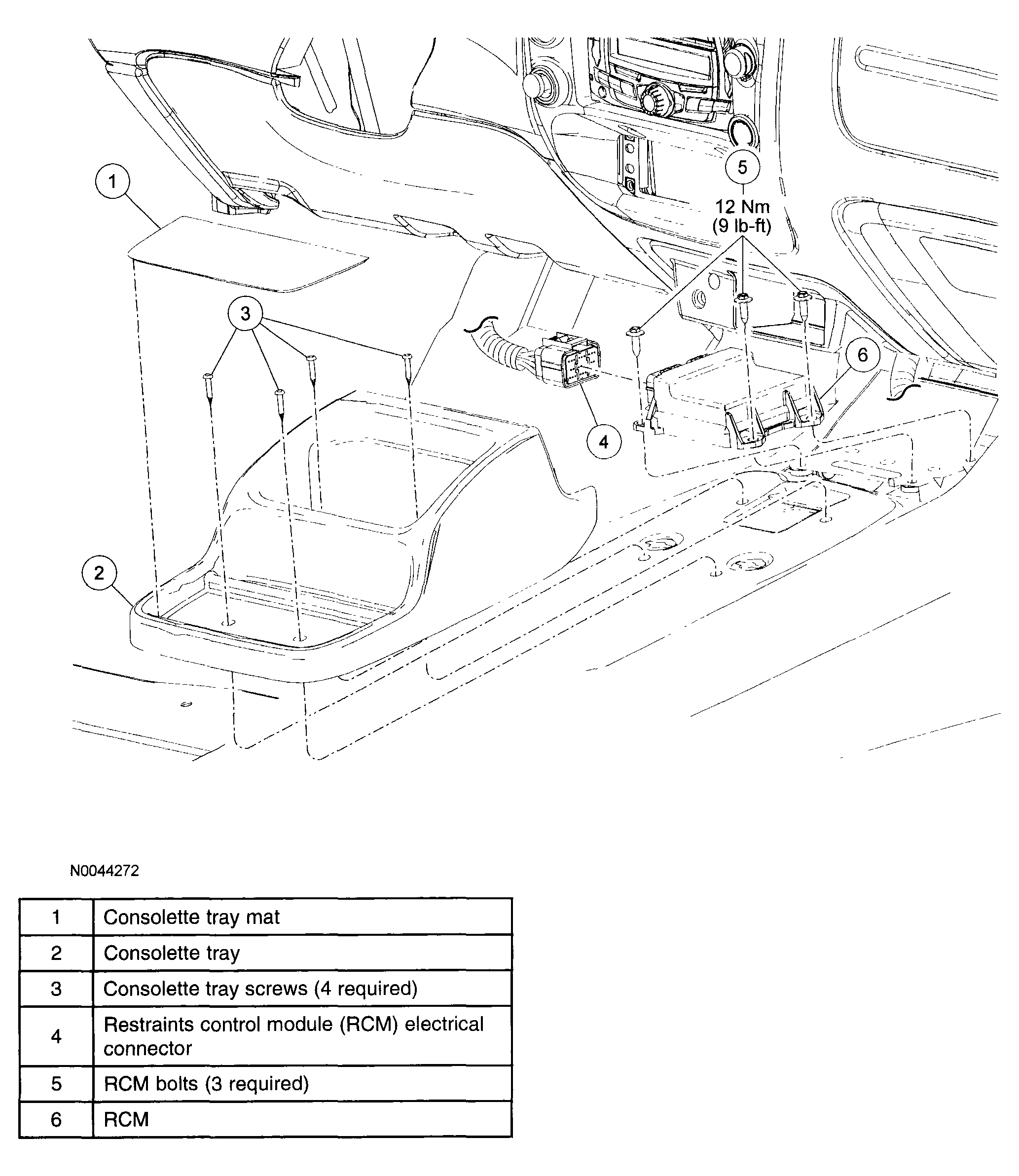

Fig 1: Identifying Restraints Control Module Components (Consolette Tray)
G04309985Courtesy of MAZDA MOTORS CORP.
