Removal and Installation

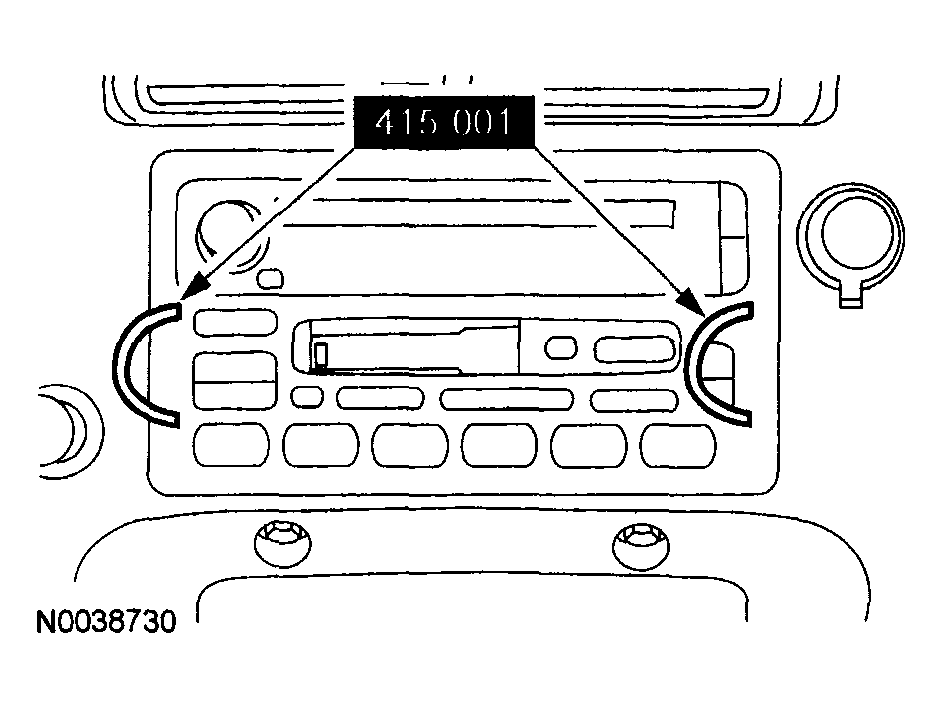

Fig 1: Removing Audio Unit Using SST 415-001
G04310559Courtesy of MAZDA MOTORS CORP.
  1. Using the SST  415-001, remove the audio unit.
    • Disconnect the electrical connector(s) and the antenna cable.
  2. To install, reverse the removal procedure.
