Connector End Views - General Tests

GENERAL TESTS CONNECTOR END VIEWS

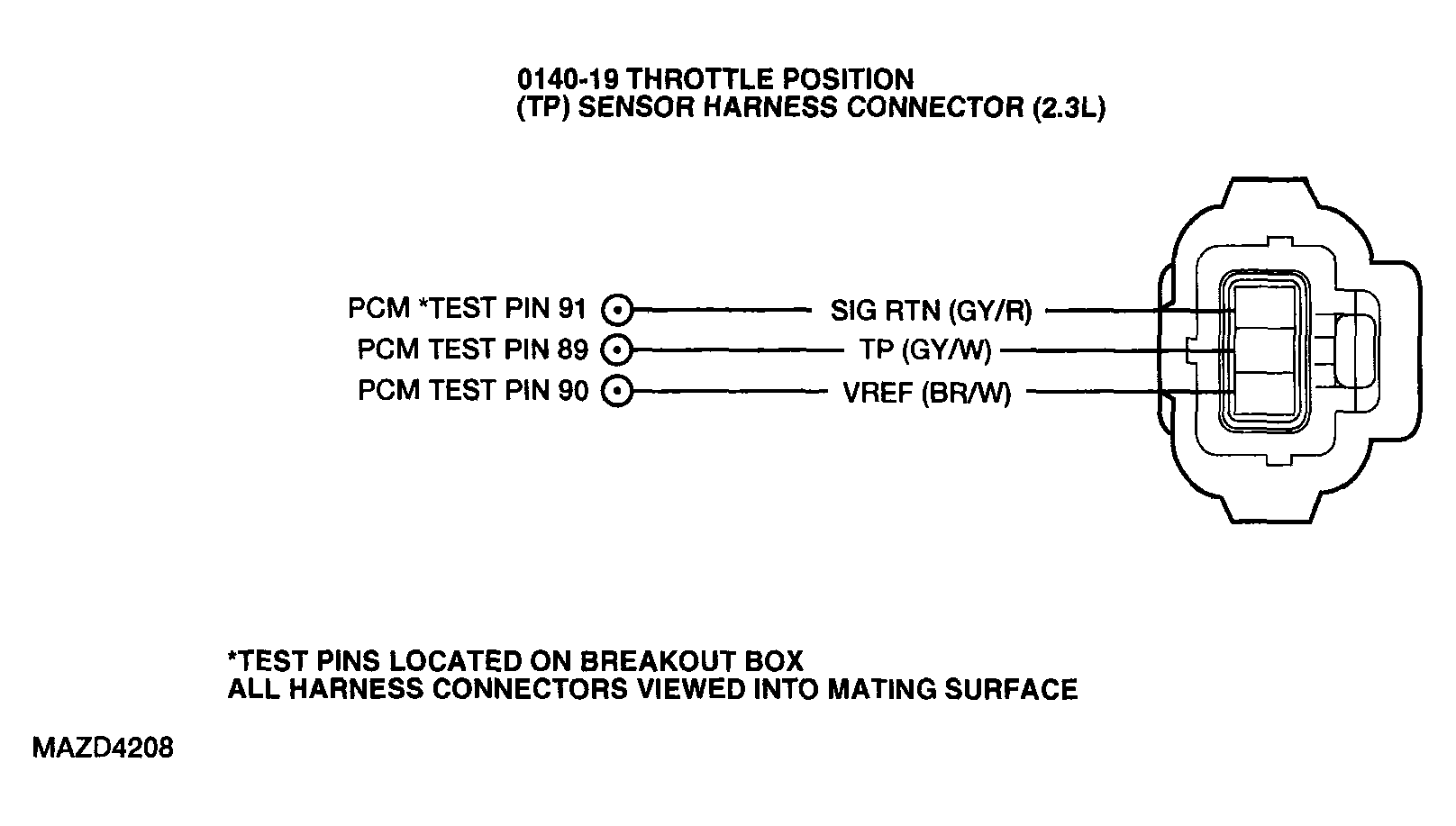

G04307015

Courtesy of MAZDA MOTORS CORP.

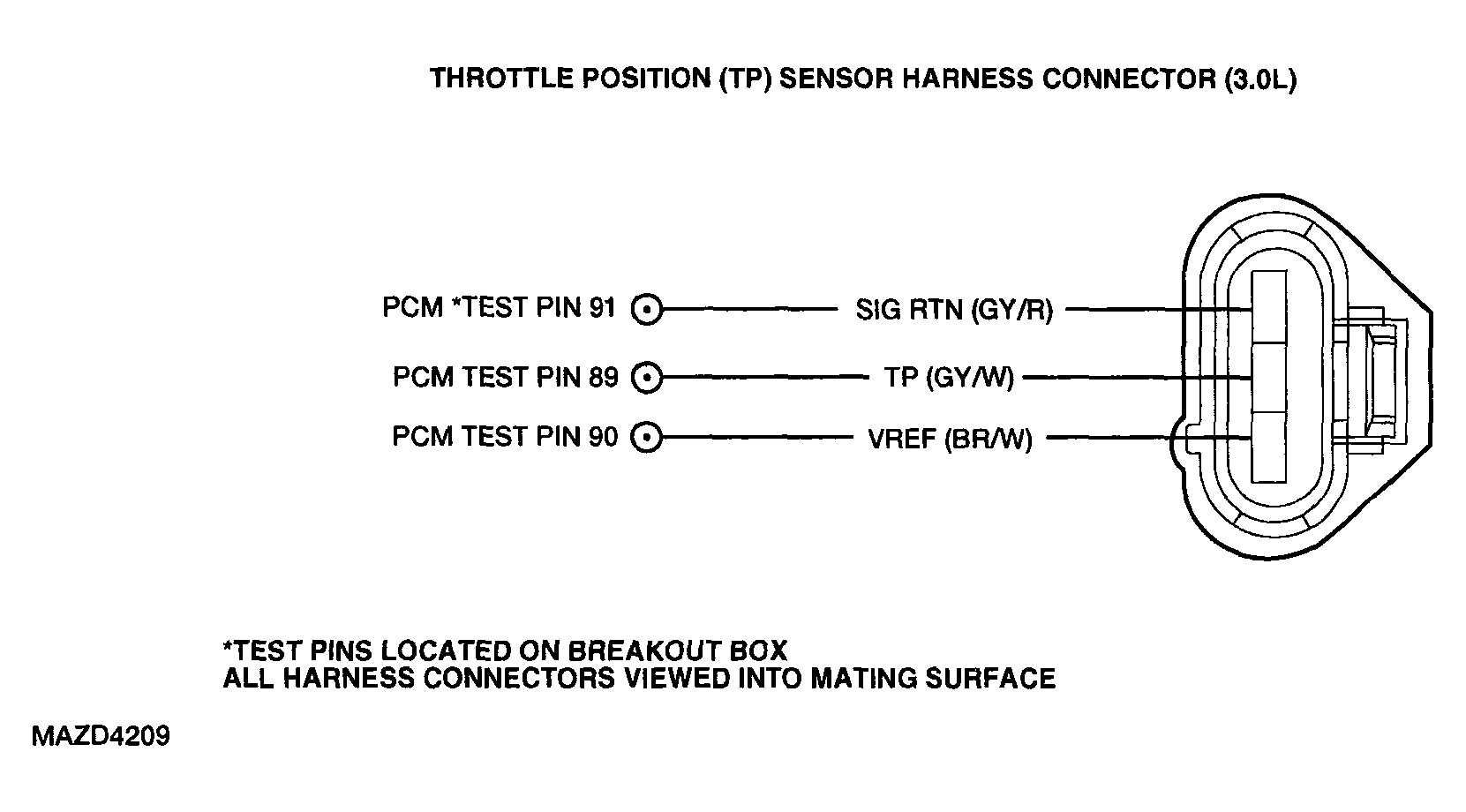

G04307016

Courtesy of MAZDA MOTORS CORP.

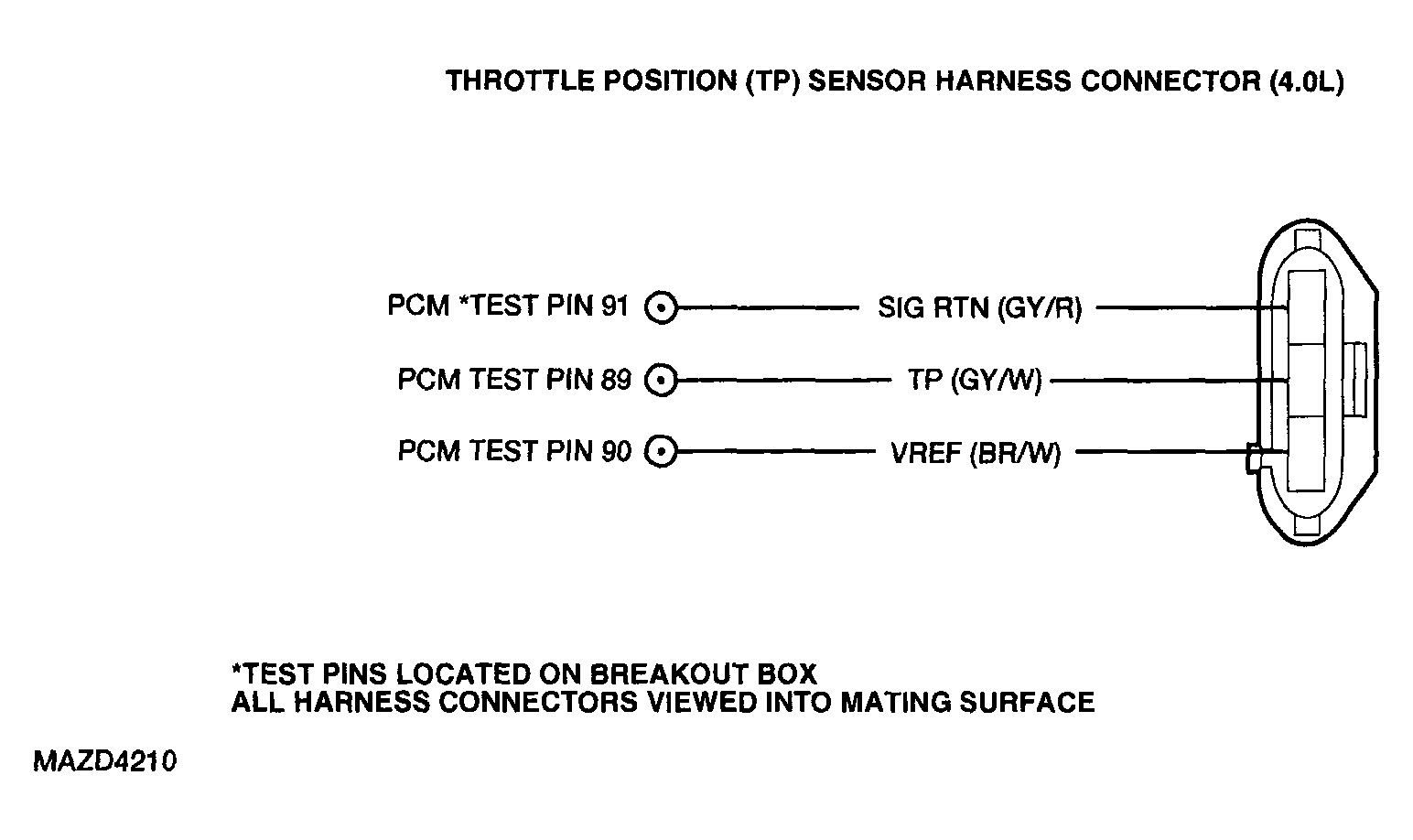

G04307017

Courtesy of MAZDA MOTORS CORP.

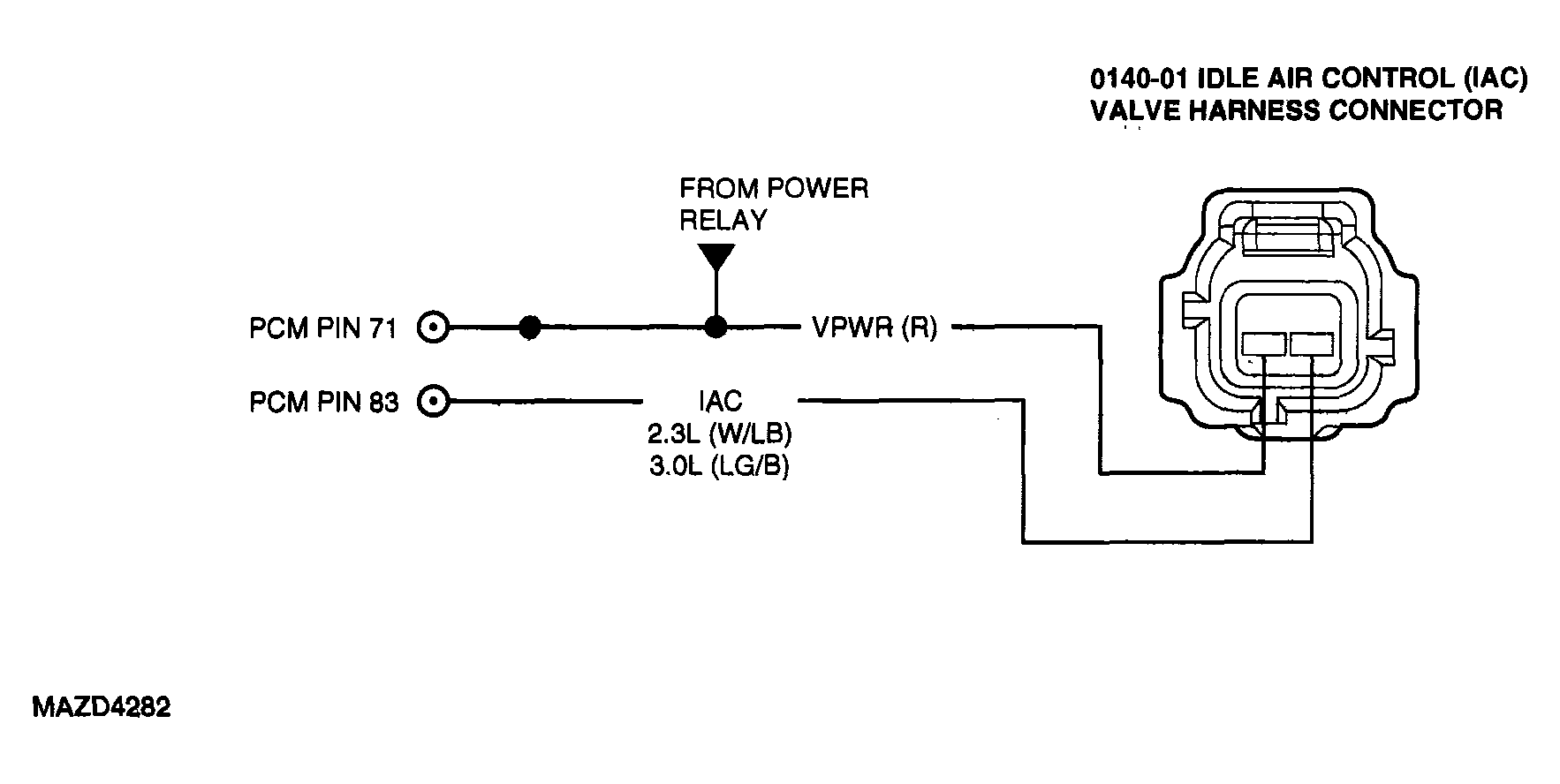

G04307018

Courtesy of MAZDA MOTORS CORP.

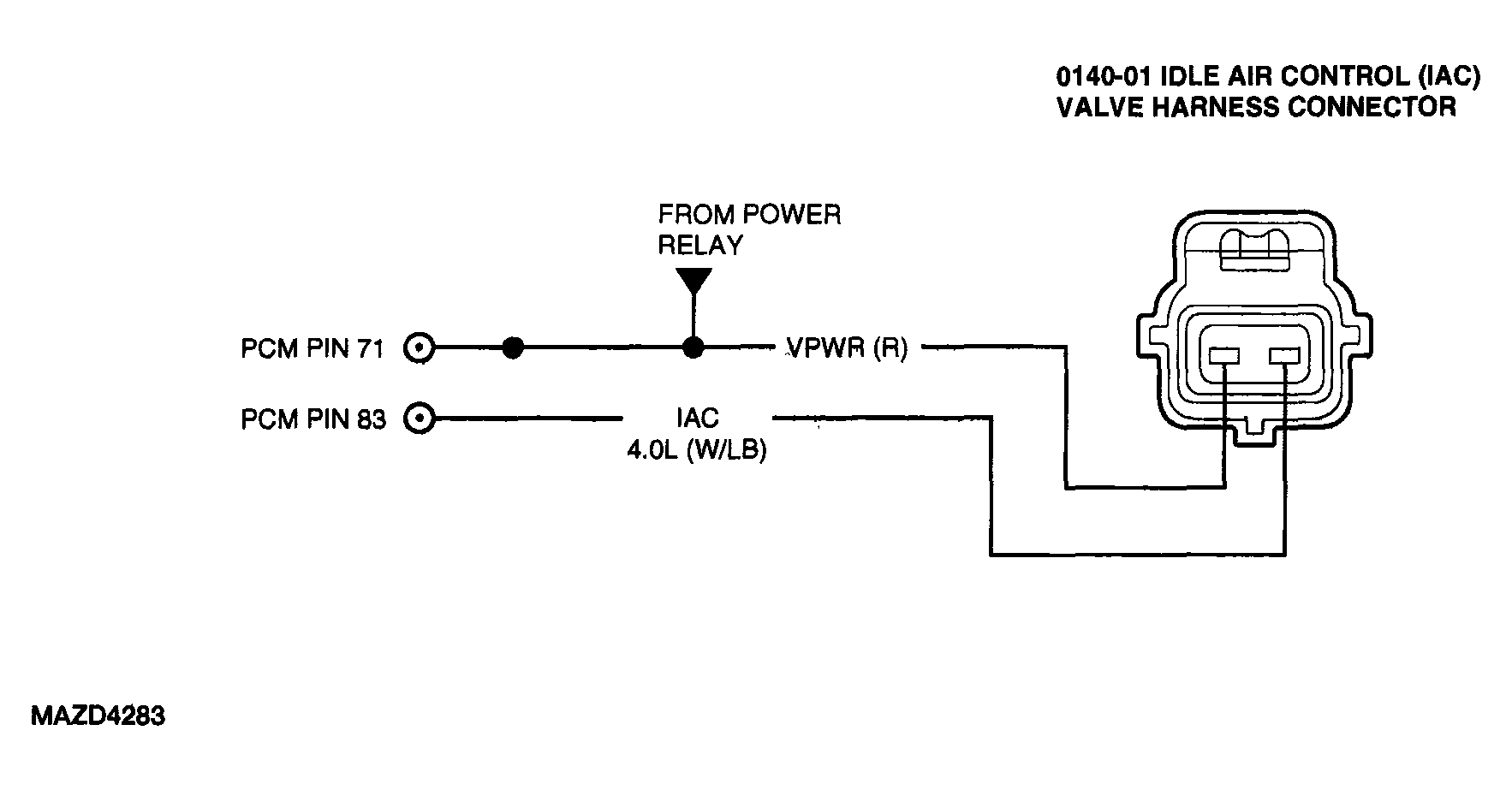

G04307019

Courtesy of MAZDA MOTORS CORP.

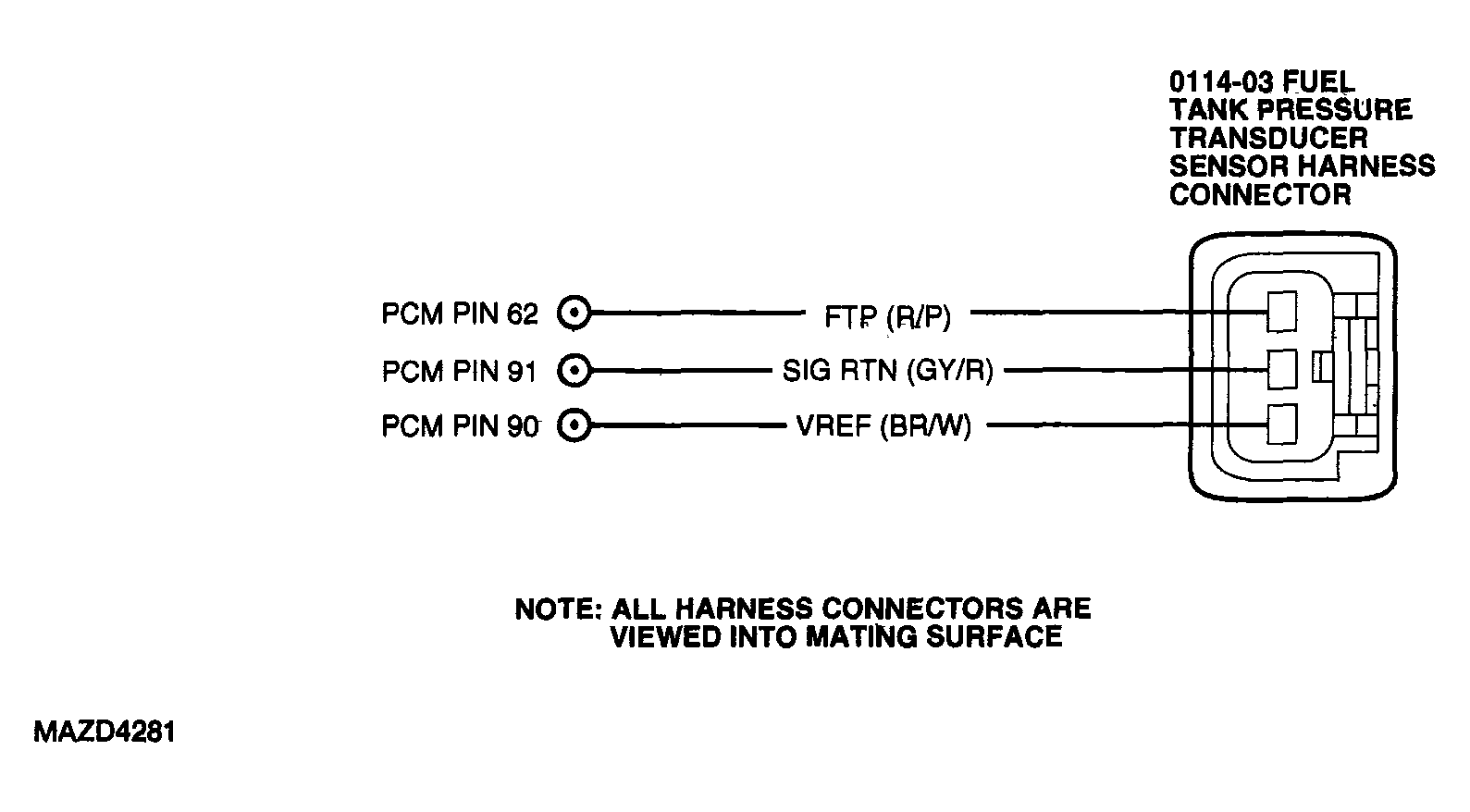

G04307020

Courtesy of MAZDA MOTORS CORP.

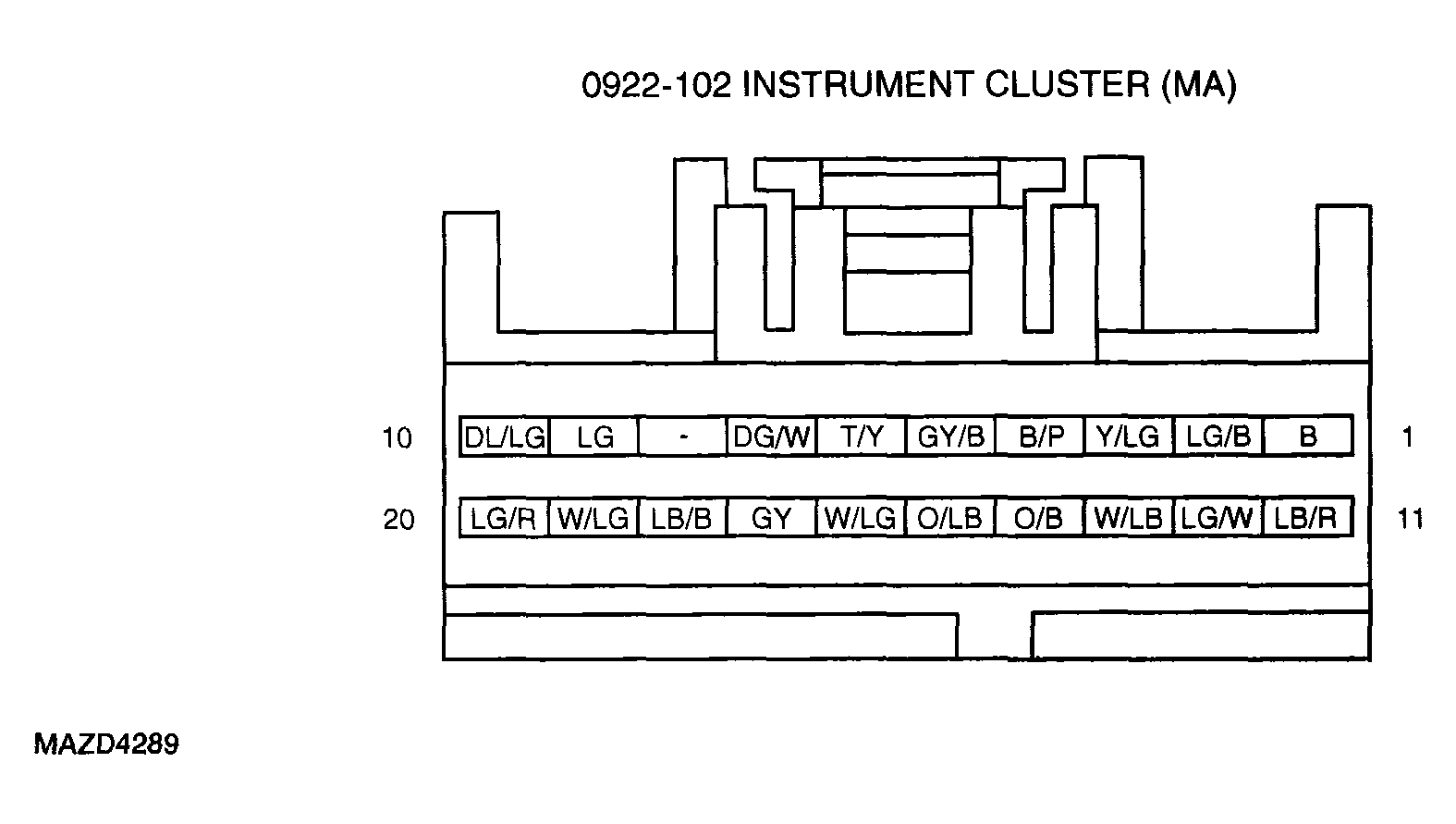

G04307021

Courtesy of MAZDA MOTORS CORP.

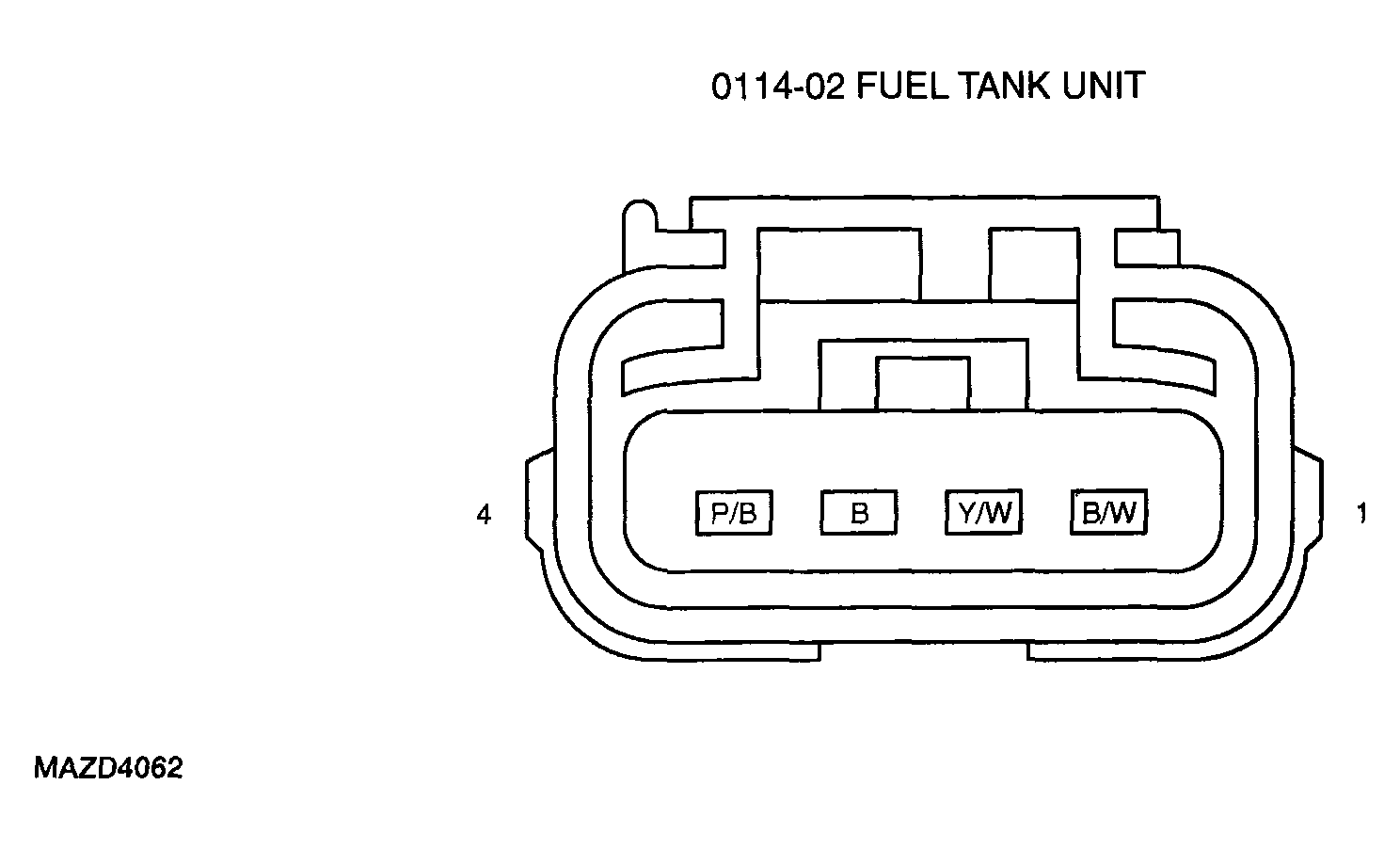

G04307022

Courtesy of MAZDA MOTORS CORP.

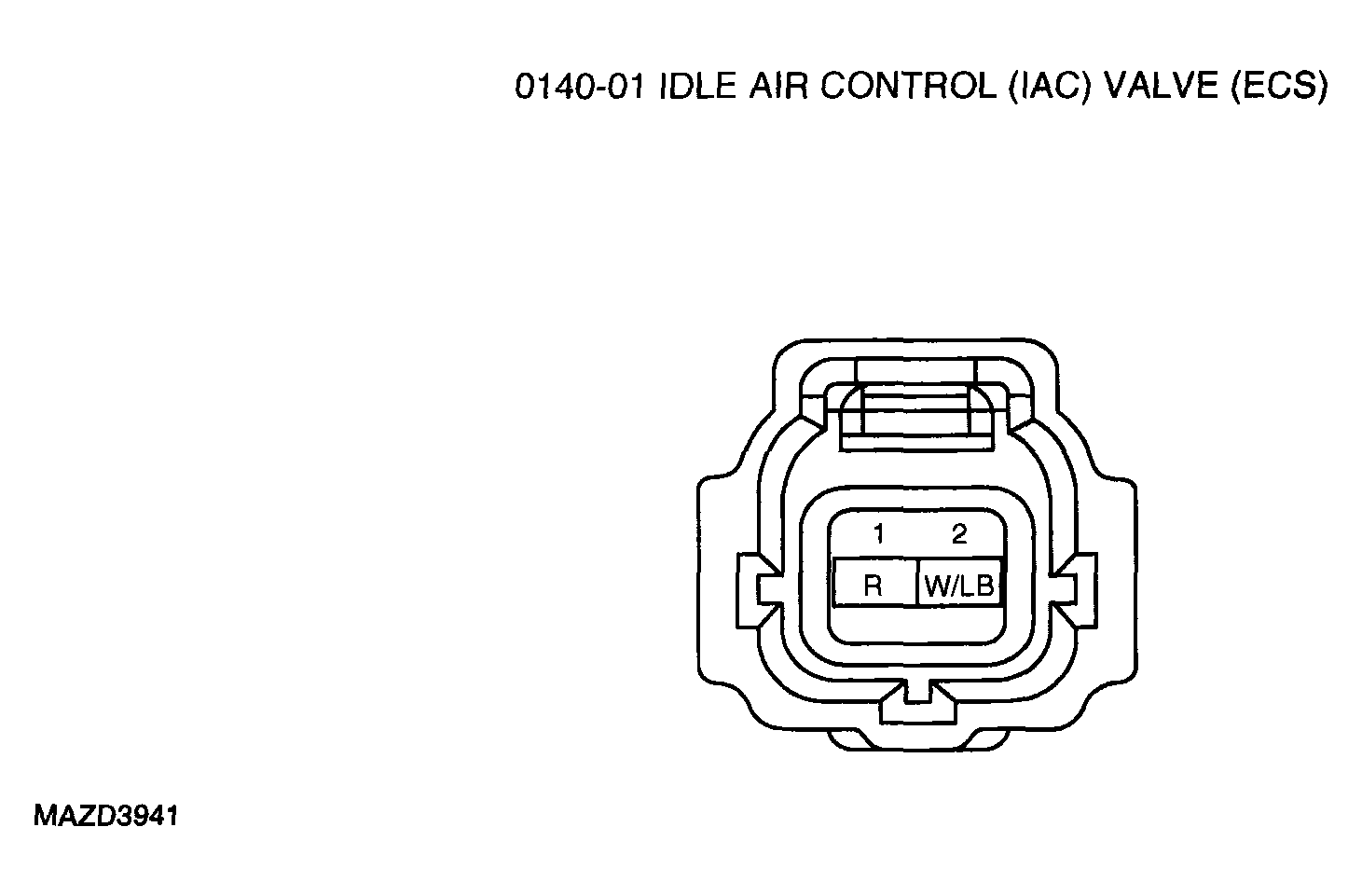

G04307023

Courtesy of MAZDA MOTORS CORP.

G04307024

Courtesy of MAZDA MOTORS CORP.

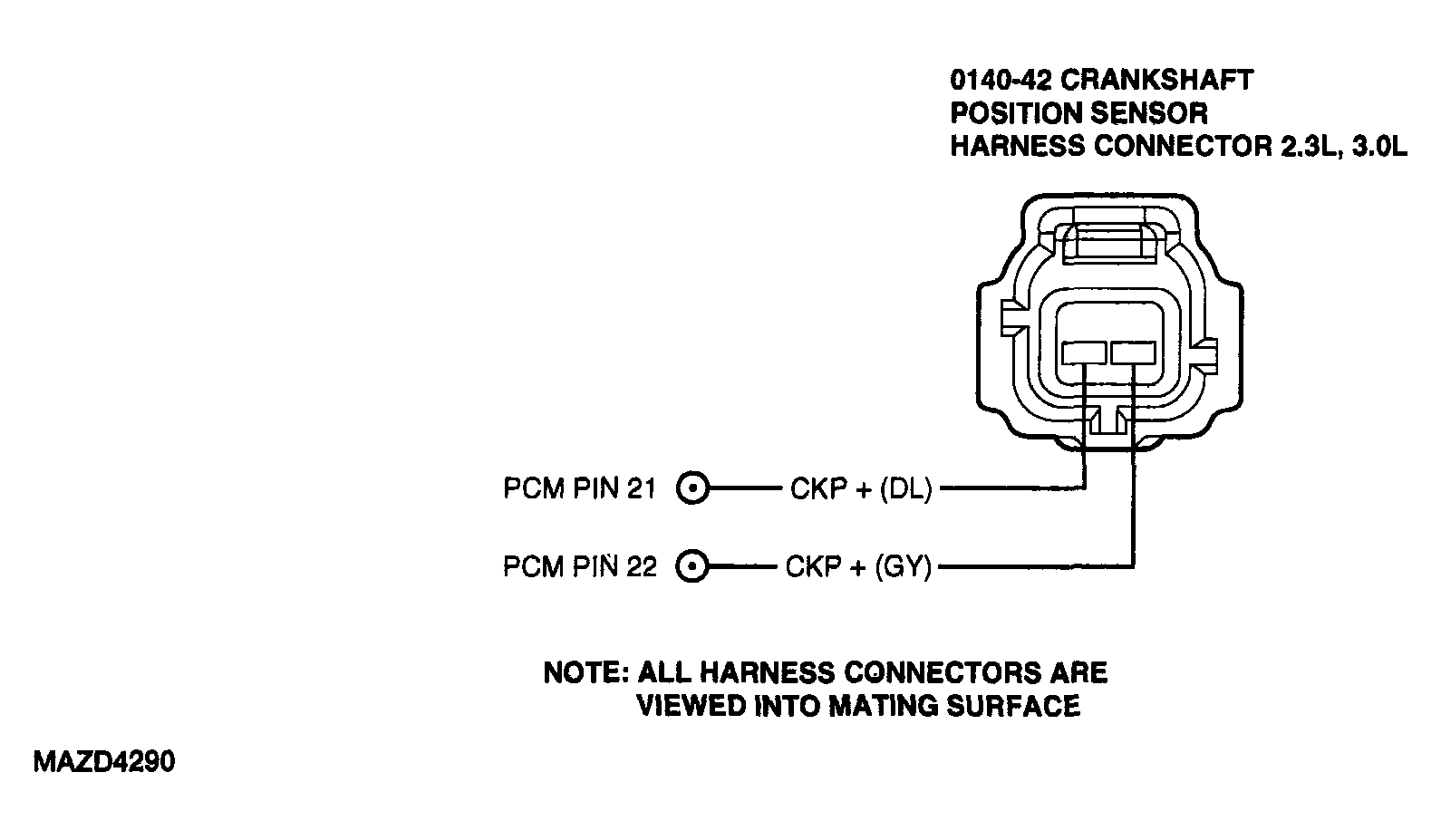

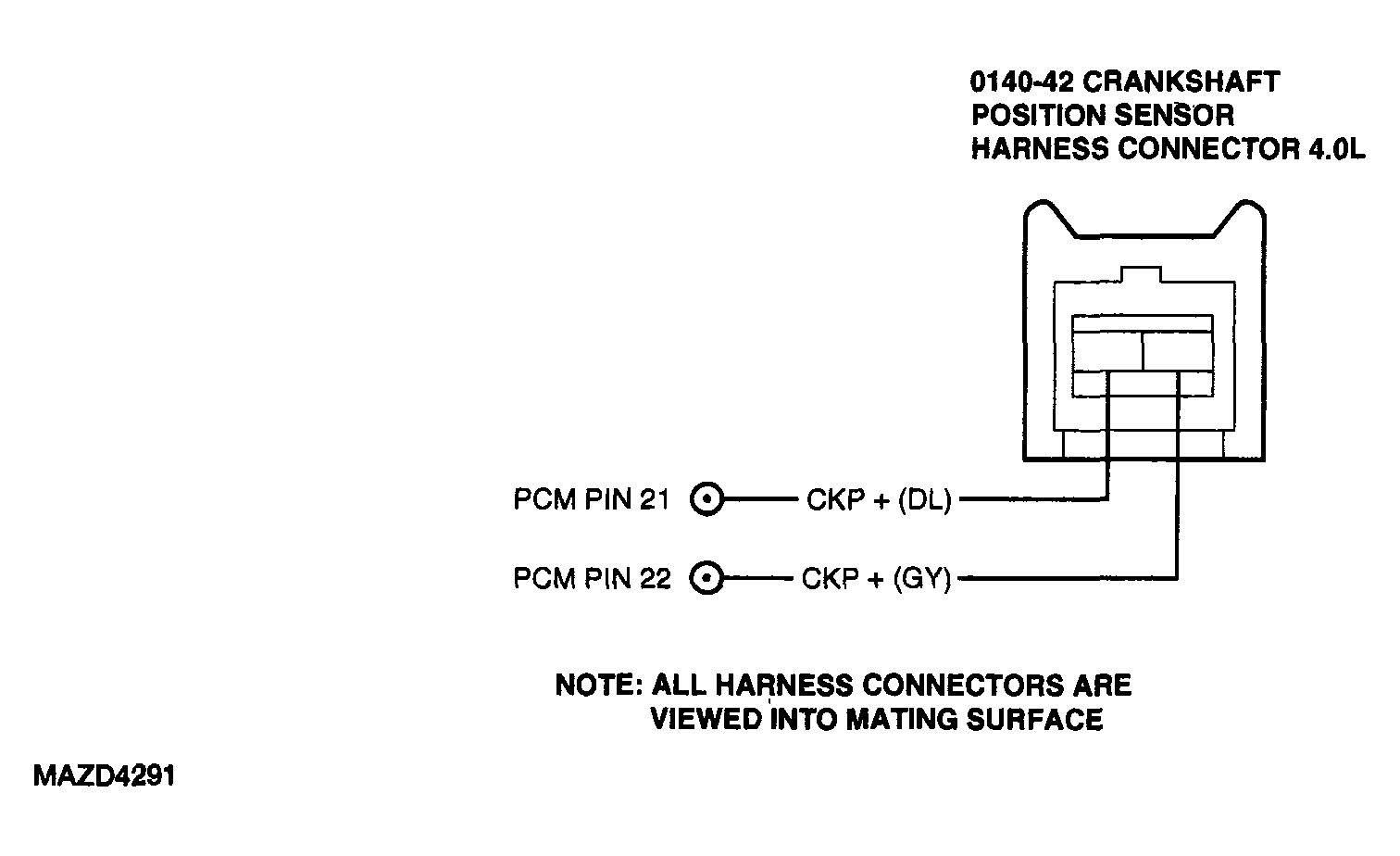

G04307025

Courtesy of MAZDA MOTORS CORP.

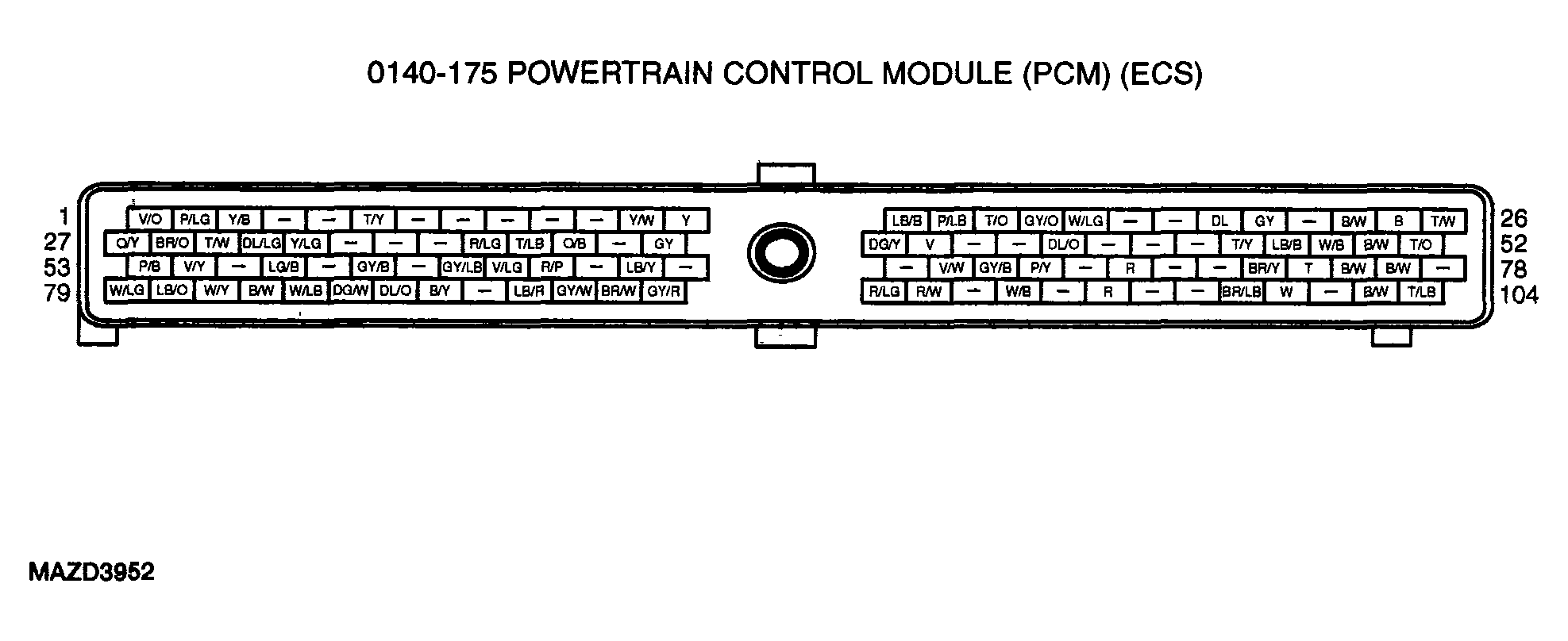

G04307026

Courtesy of MAZDA MOTORS CORP.

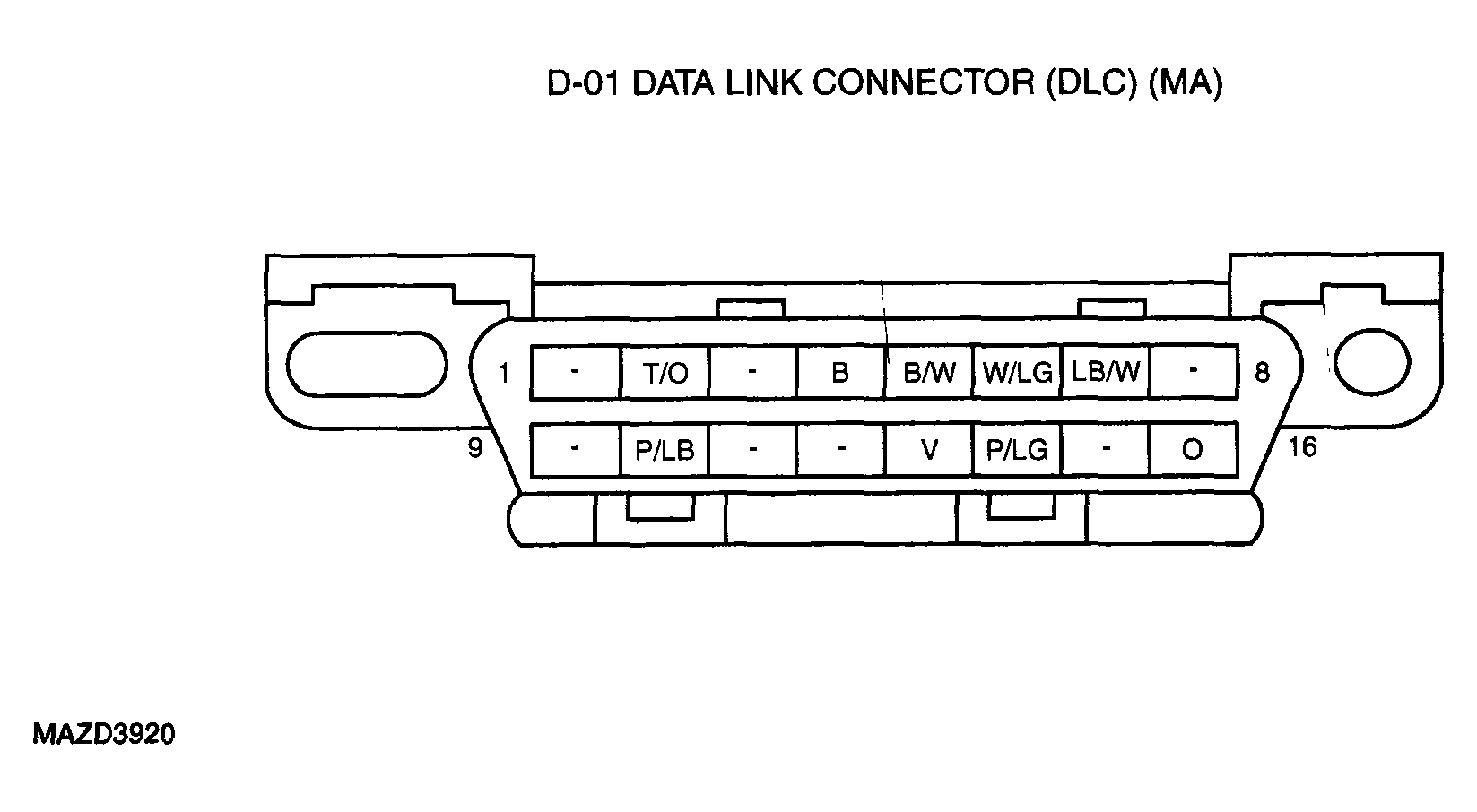

G04307027

Courtesy of MAZDA MOTORS CORP.

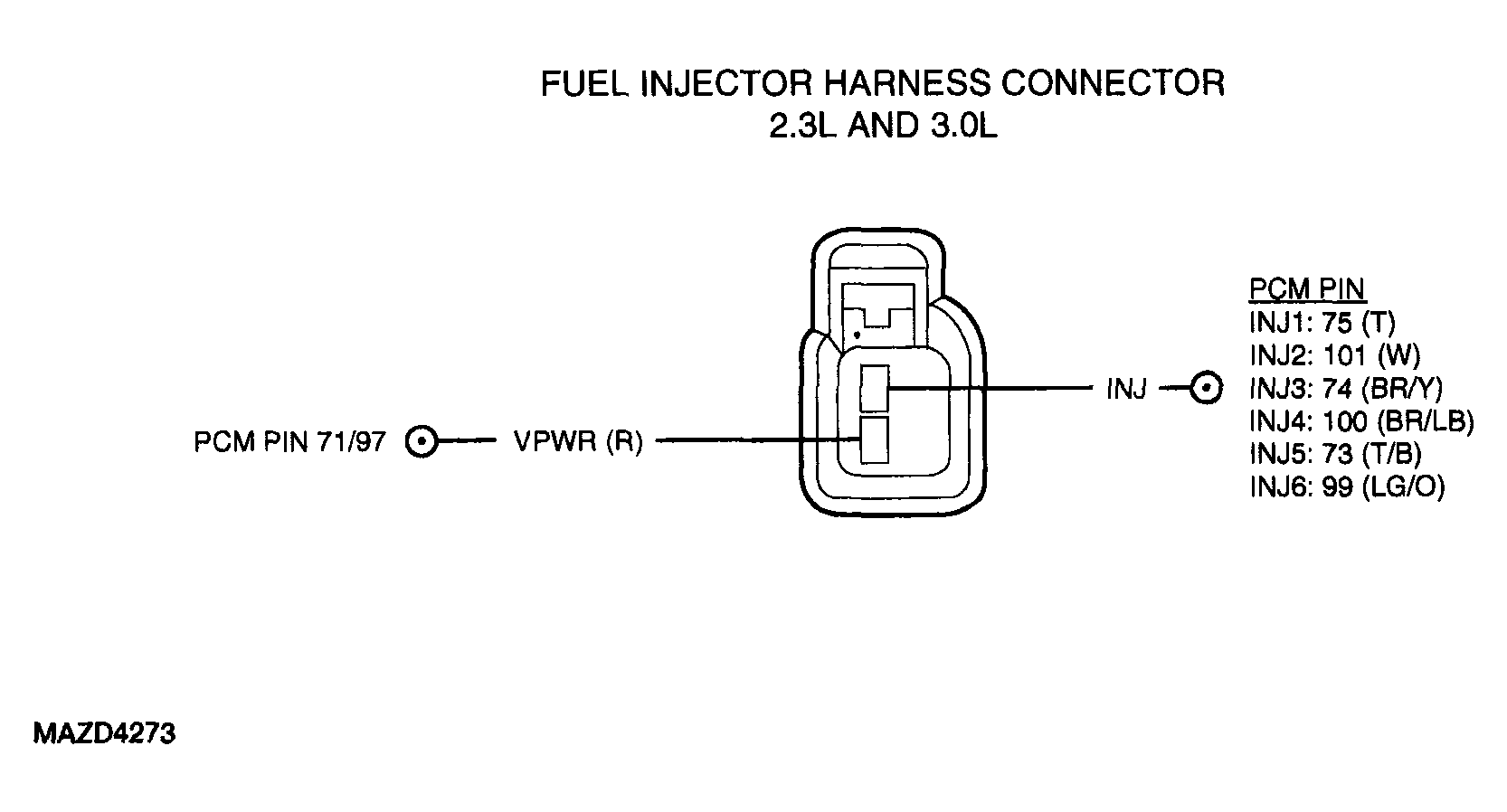

G04307028

Courtesy of MAZDA MOTORS CORP.

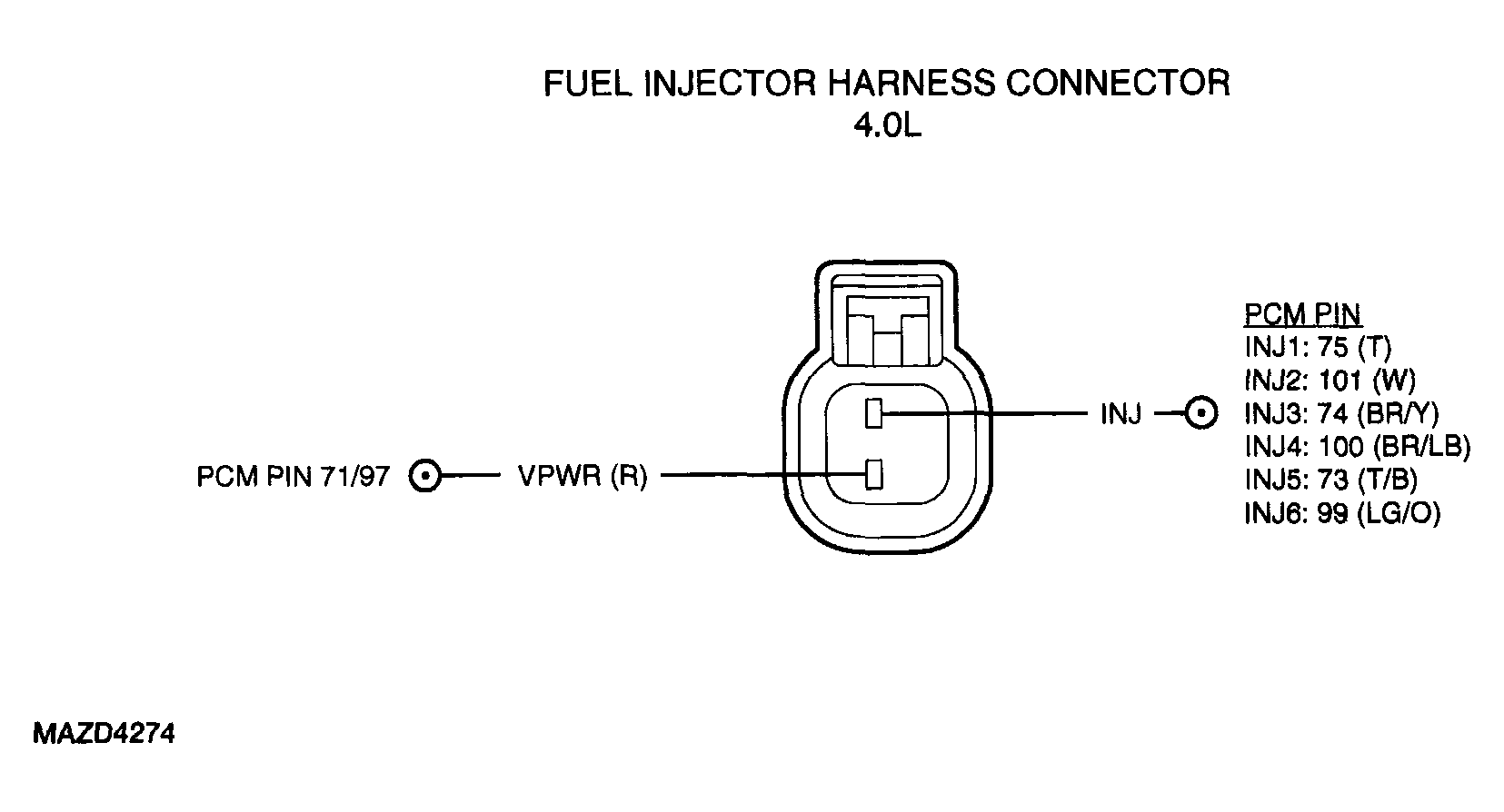

G04307029

Courtesy of MAZDA MOTORS CORP.
