Connector End Views - Starting System

STARTING SYSTEM CONNECTOR END VIEWS

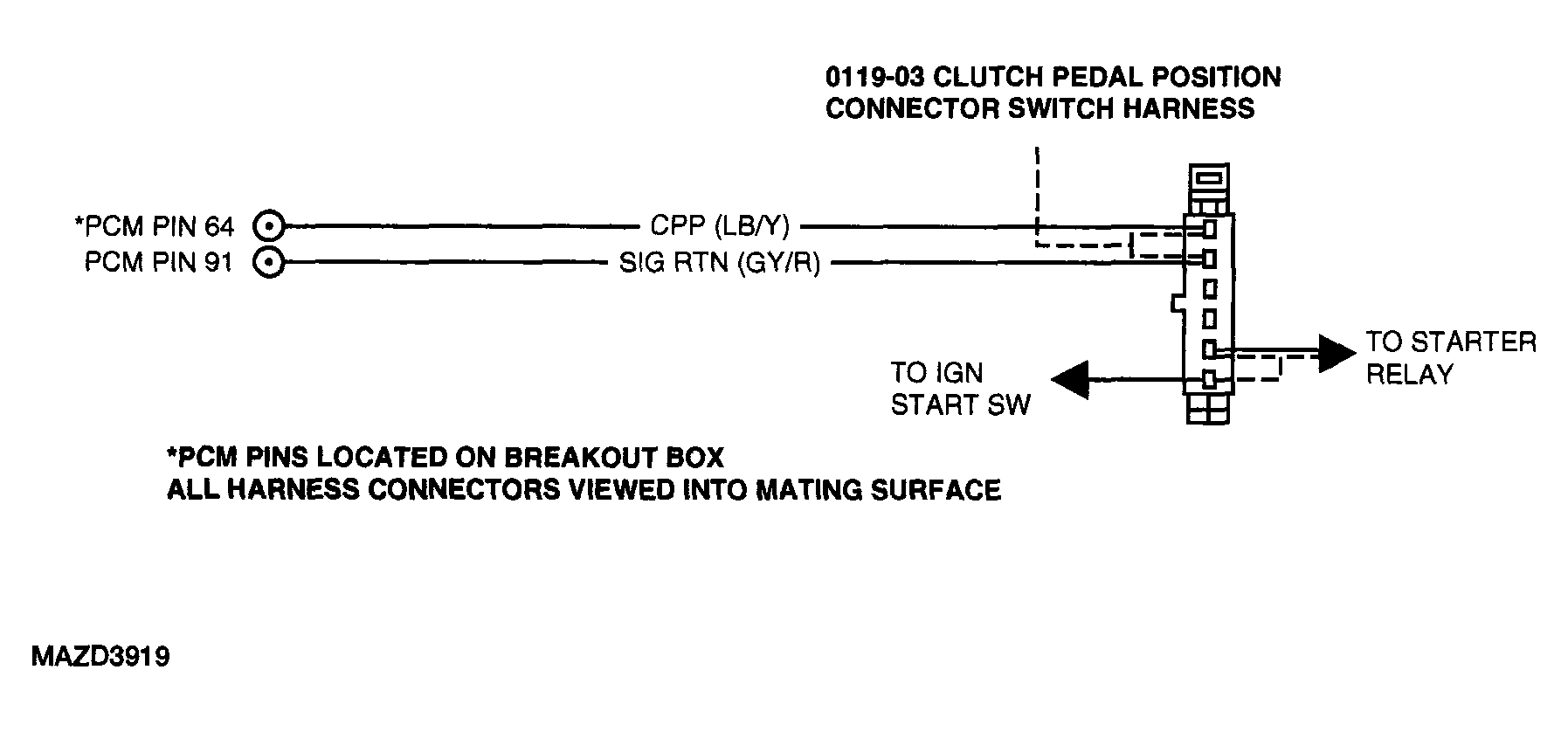

G04307004Courtesy of MAZDA MOTORS CORP.

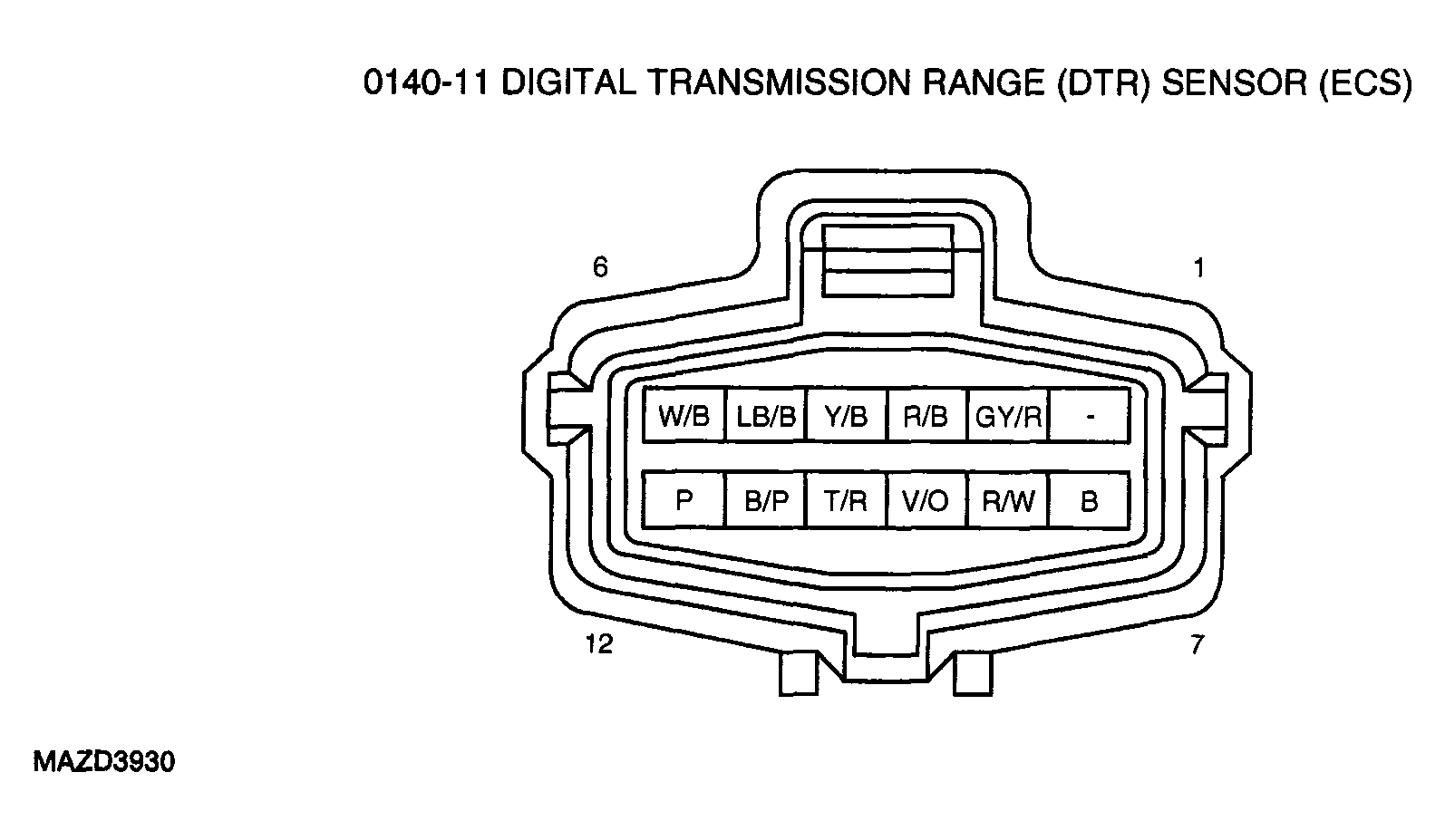

G04307005Courtesy of MAZDA MOTORS CORP.

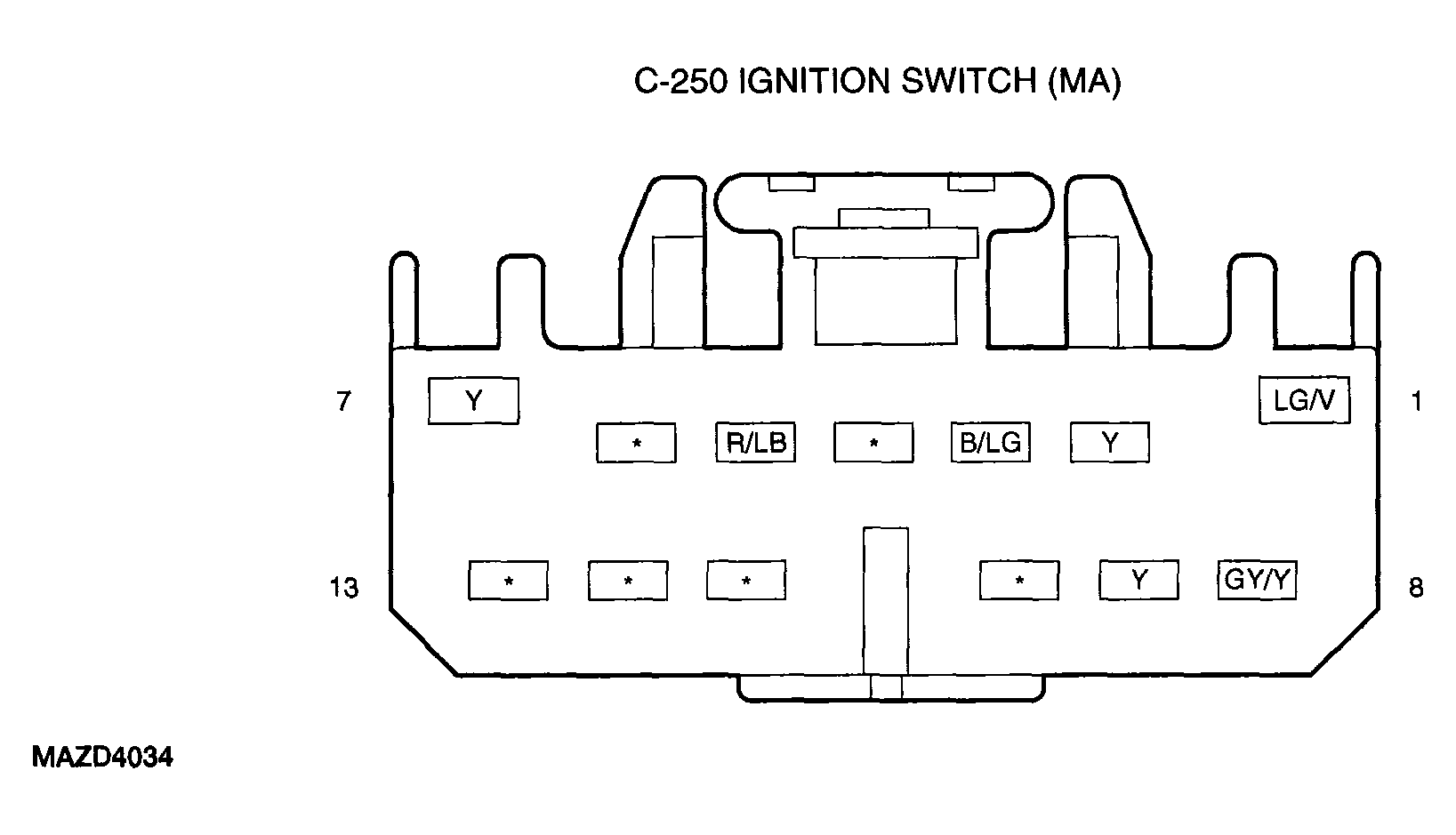

G04307006Courtesy of MAZDA MOTORS CORP.
G04307007Courtesy of MAZDA MOTORS CORP.
