Power Steering Fluid Cooler: Notes

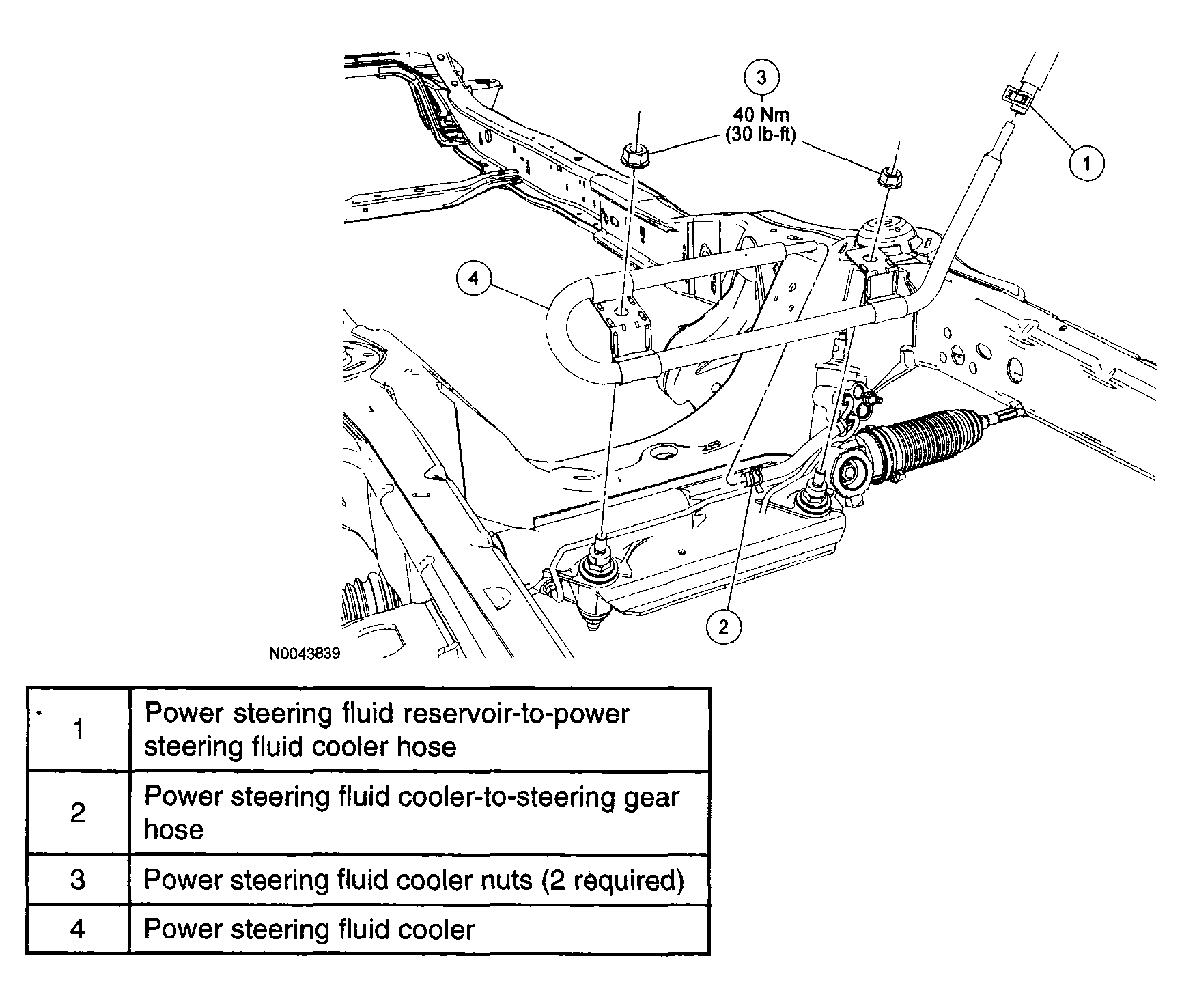

Fig 1: Removing/Installing Power Steering Fluid Cooler
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
