Power Steering Pump - 2.3L: Notes

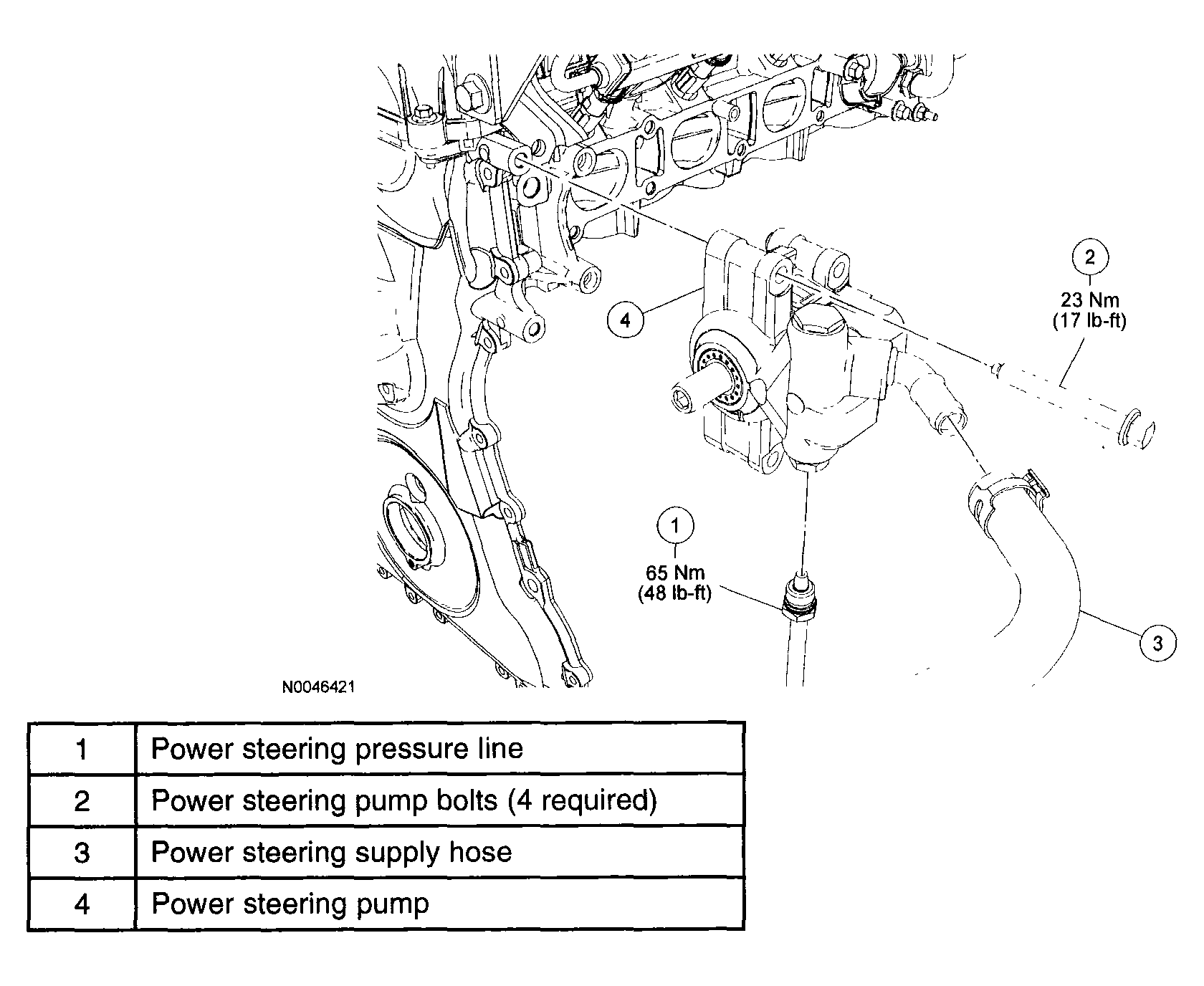

Fig 1: Removing/Installing Power Steering Pump With Torque Specifications
G04309557Courtesy of MAZDA MOTORS CORP.
