Guide Disassembly Note

  1. Slide the guide rearward, and remove it from the sunroof frame.

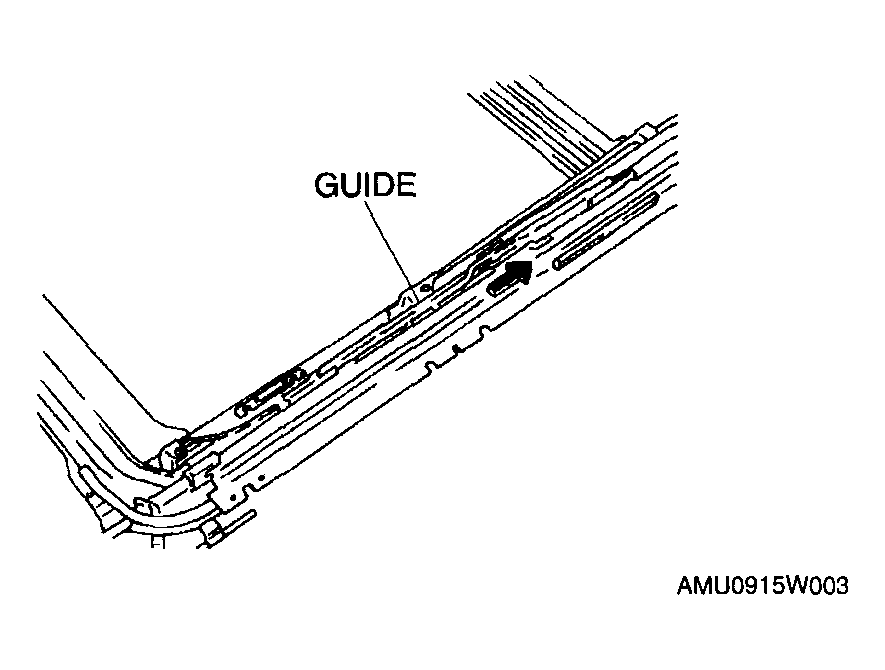

    Fig 1: Sliding Guide
    G04329592Courtesy of MAZDA MOTORS CORP.
