Cargo Compartment Light Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.

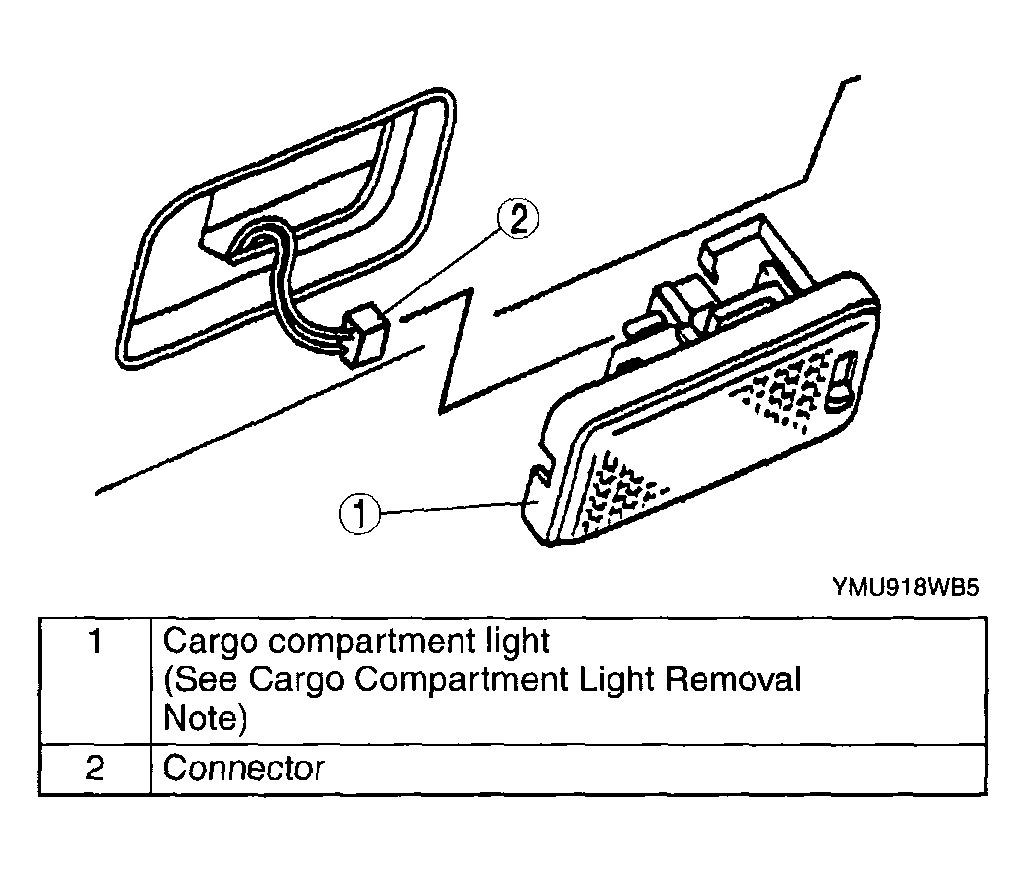

Fig 1: Removing/Installing Cargo Compartment Light
G04329719Courtesy of MAZDA MOTORS CORP.
