Hood Lock And Opener Removal/Installation

  1. Remove in the order indicated in Fig 1.

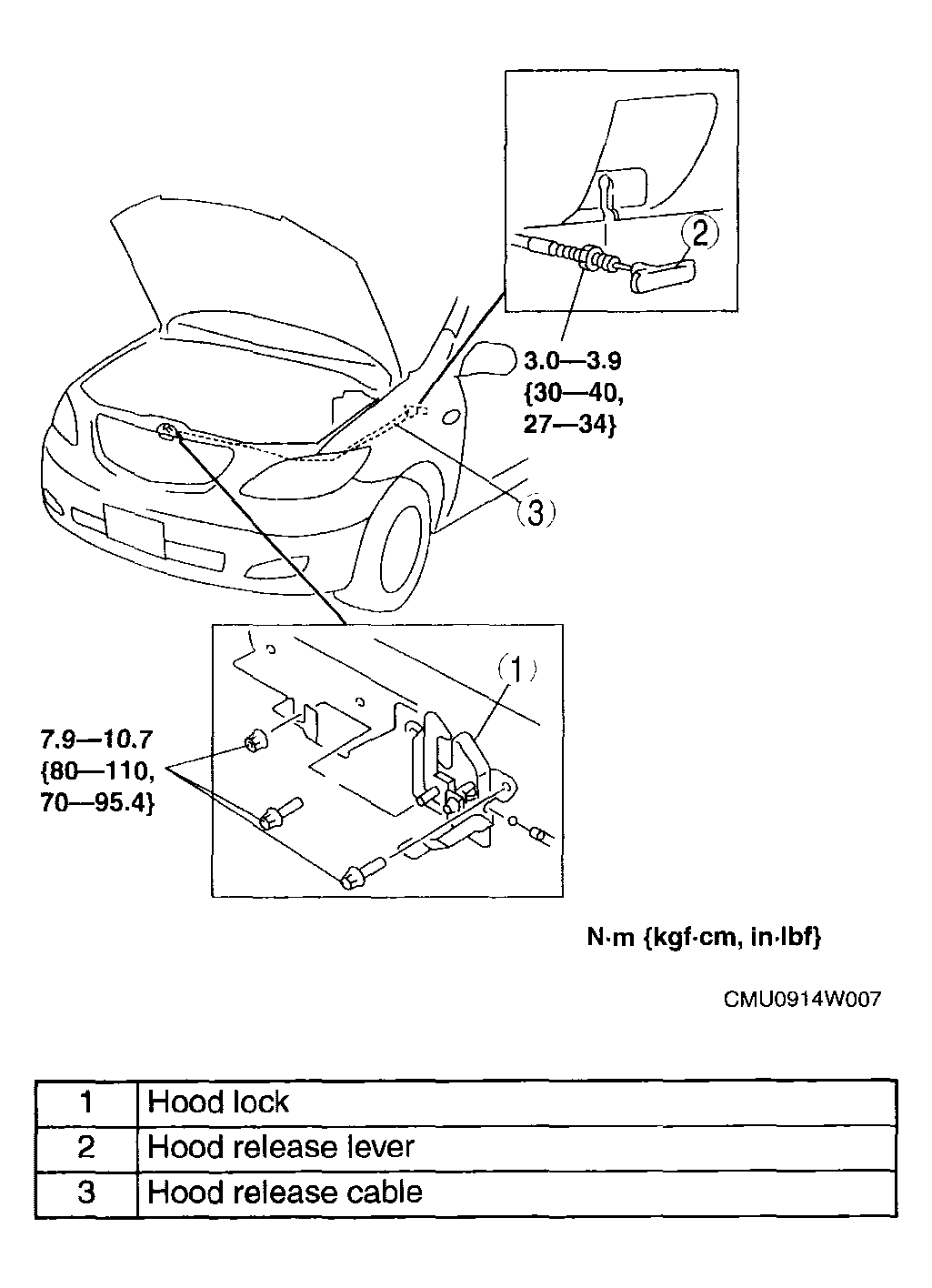

    Fig 1: Hood Lock And Opener With Torque Specifications
    G04329547Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
