Power Door Lock System Wiring Diagram

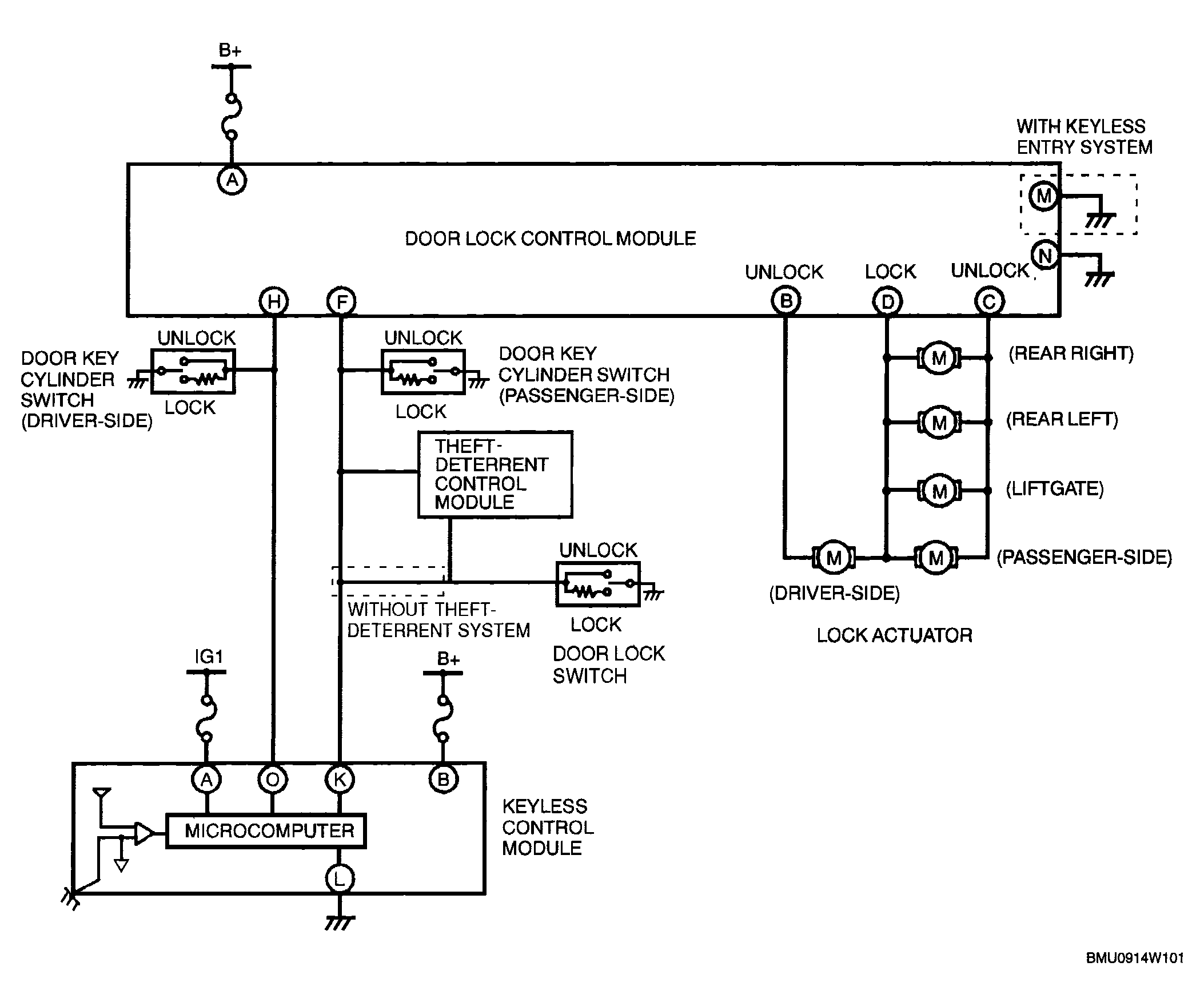

Fig 1: Power Door Lock System Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
