Locknut Installation Note

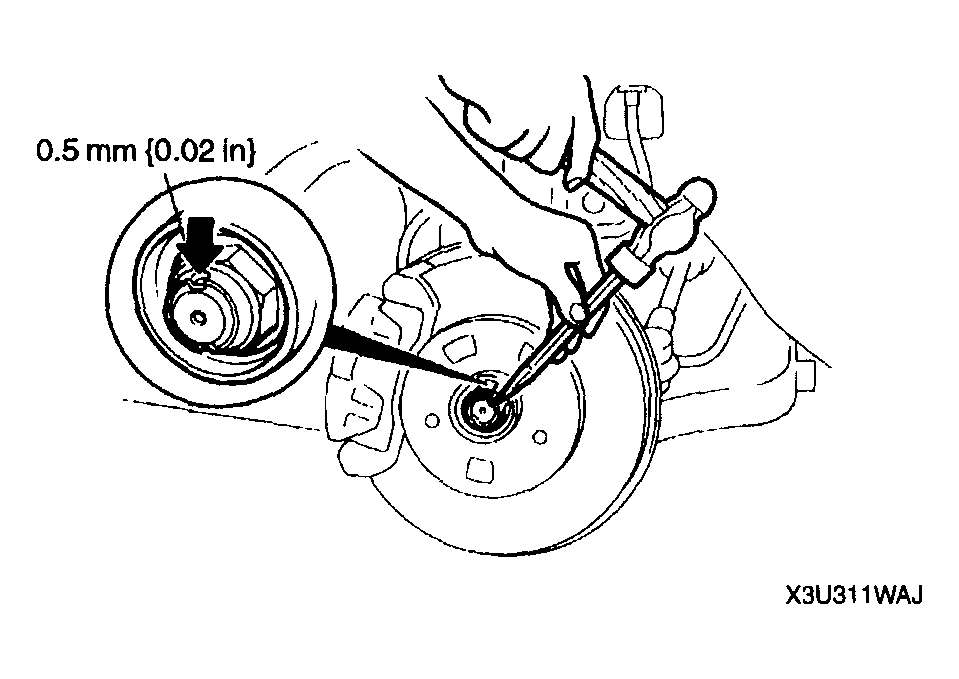

Install a new locknut and stake it as shown.
Fig 1: Installing Locknut
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
