Stator coil

Inspect for continuity between the stator coil leads using an ohmmeter.
- If there is no continuity, replace the stator.

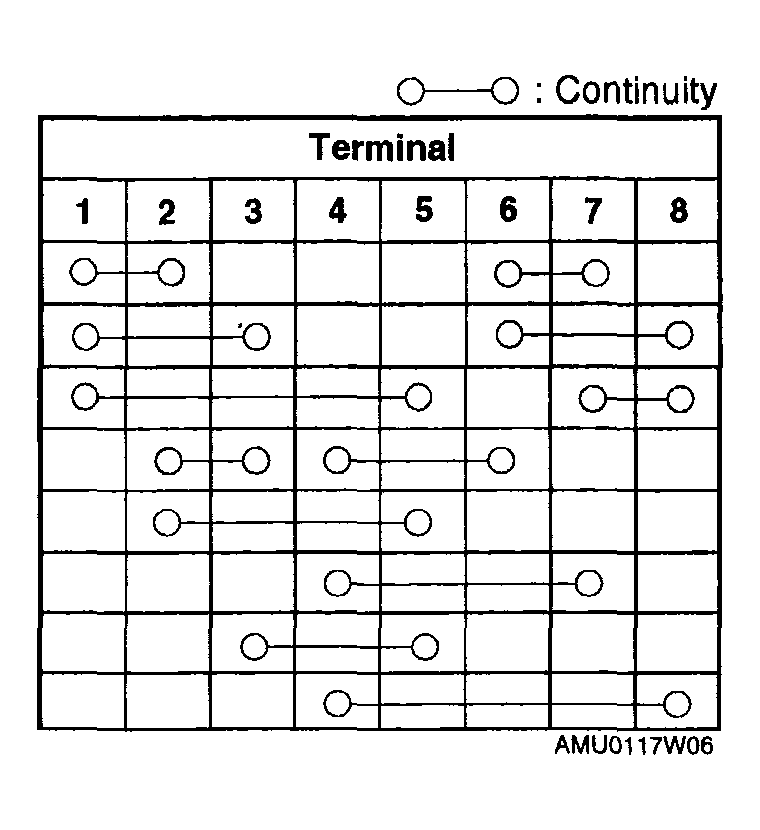

Fig 1: Stator Coil Continuity Table
Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Stator Coil Leads Terminals
Courtesy of MAZDA MOTORS CORP.
Verify that there is no continuity between the stator coil leads and the core using an ohmmeter.
- If there is continuity, replace the stator coil.
Fig 3: Measuring Continuity Between Stator Coil Leads And Core
Courtesy of MAZDA MOTORS CORP.
