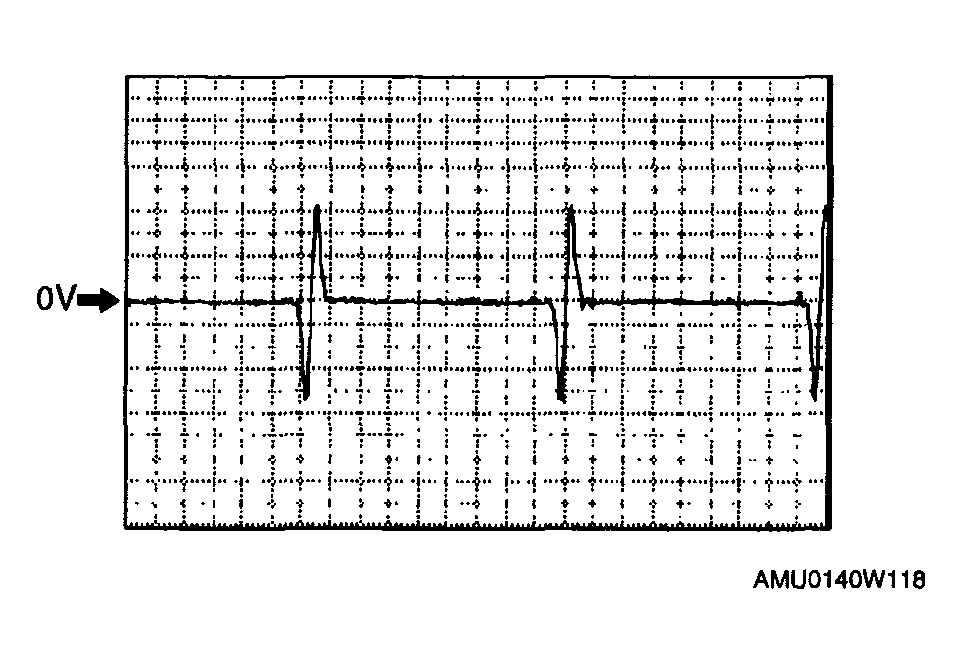

Inspection Using An Oscilloscope (Reference) CKP: CMP
- PCM terminal: 28 (+)-2 (-)
- Oscilloscope setting: 0.5V/DIV (Y), 10ms/DIV (X), AC range
- Vehicle condition: idle after warm up
Courtesy of MAZDA MOTORS CORP.
