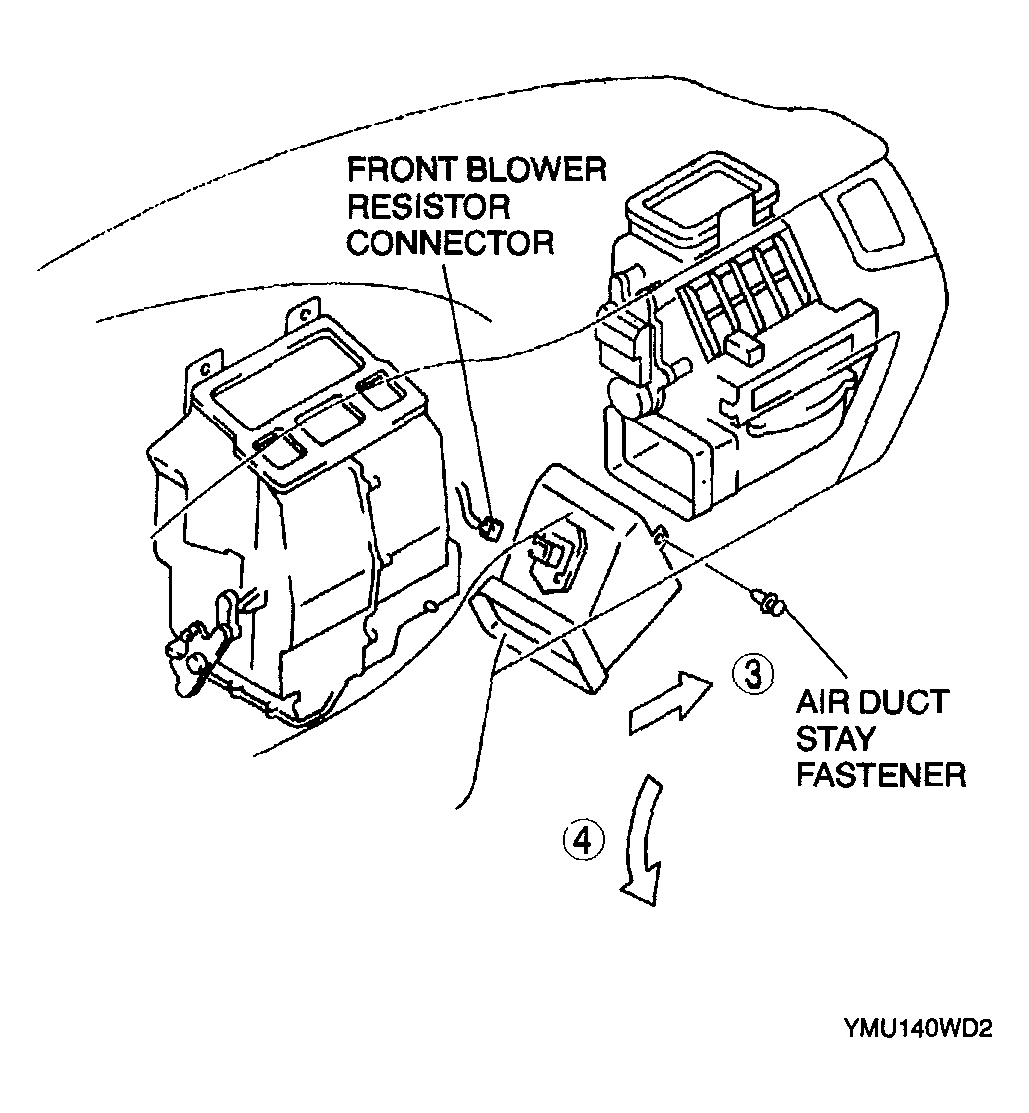

Air Duct Removal Note
- Disconnect the front blower resistor connector.
- Remove the air duct stay fastener.
- Slide the air duct to the right.
- Tilt the left side down to remove the air duct from the installation place.
Courtesy of MAZDA MOTORS CORP.
