MPV ES
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System
>>
Fuel System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Fuel System Diagram

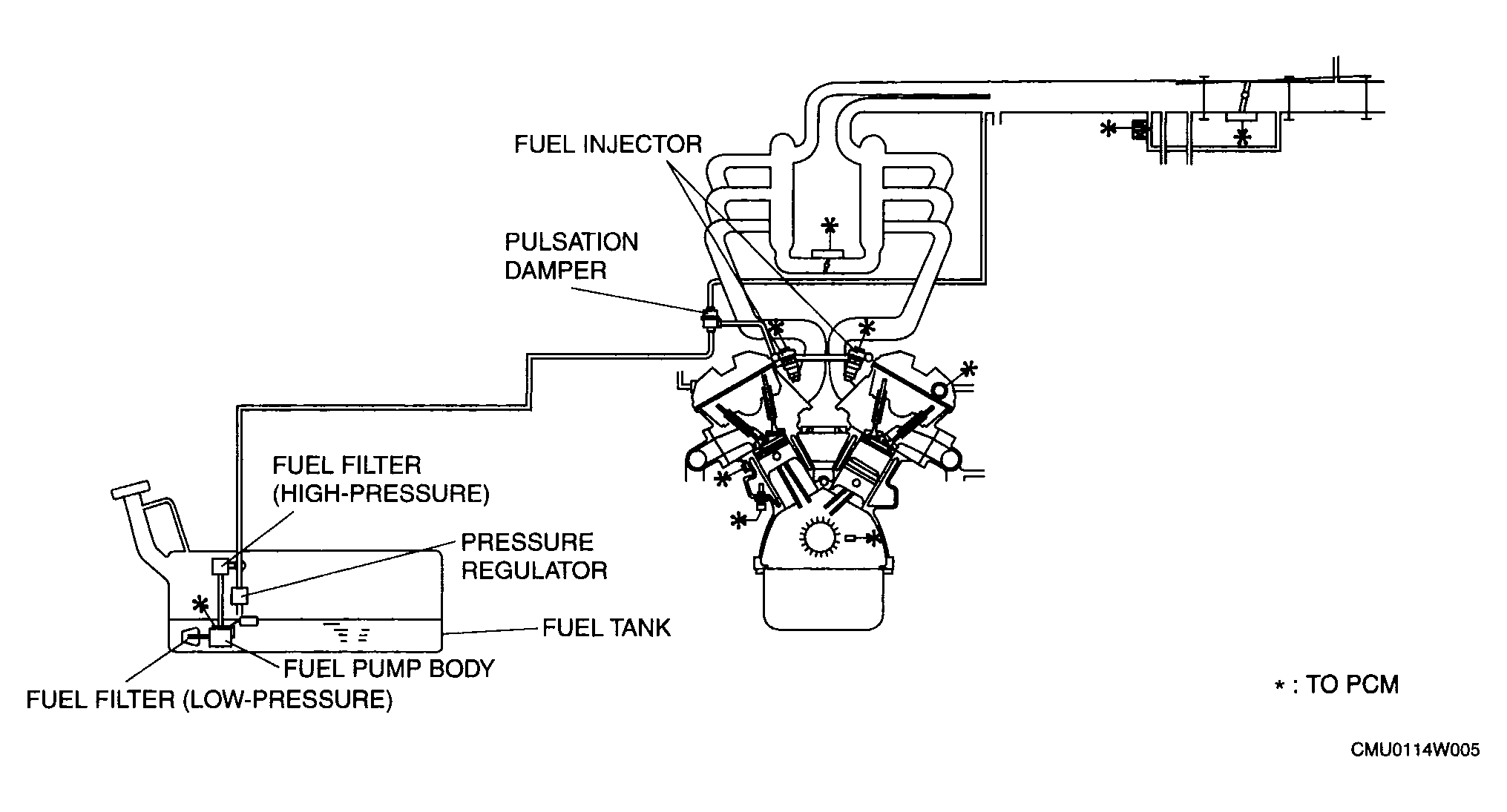

Fig 1: Fuel System Diagram
