Data link connector

Insert the probe into the terminal when connecting a jumper wire to the data link connector.

CAUTION:

Inserting a jumper wire probe into the data link connector terminal may damage the terminal.

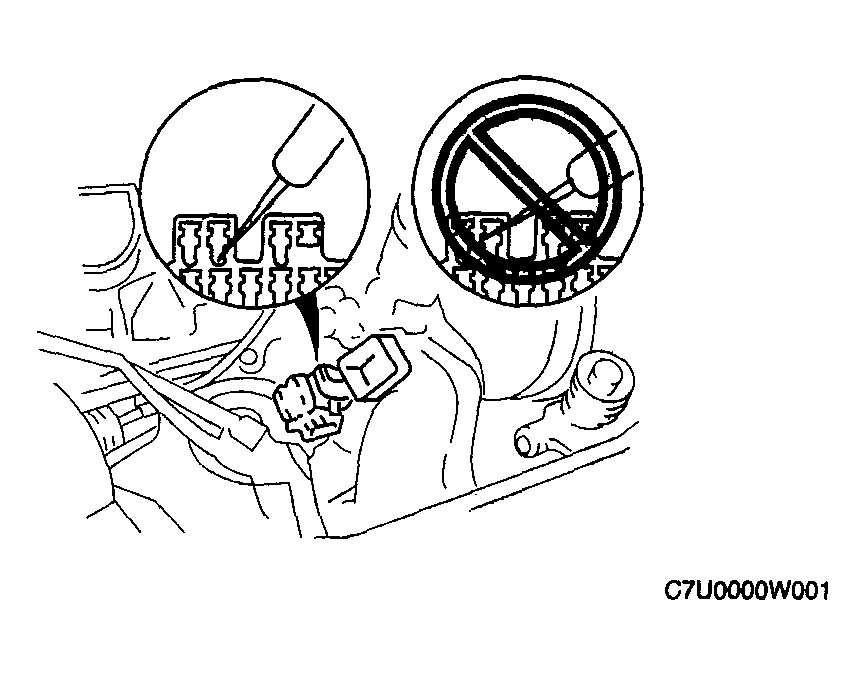

Fig 1: Inserting Probe Into Terminal

Courtesy of MAZDA MOTORS CORP.
