Using the DTC troubleshooting flow

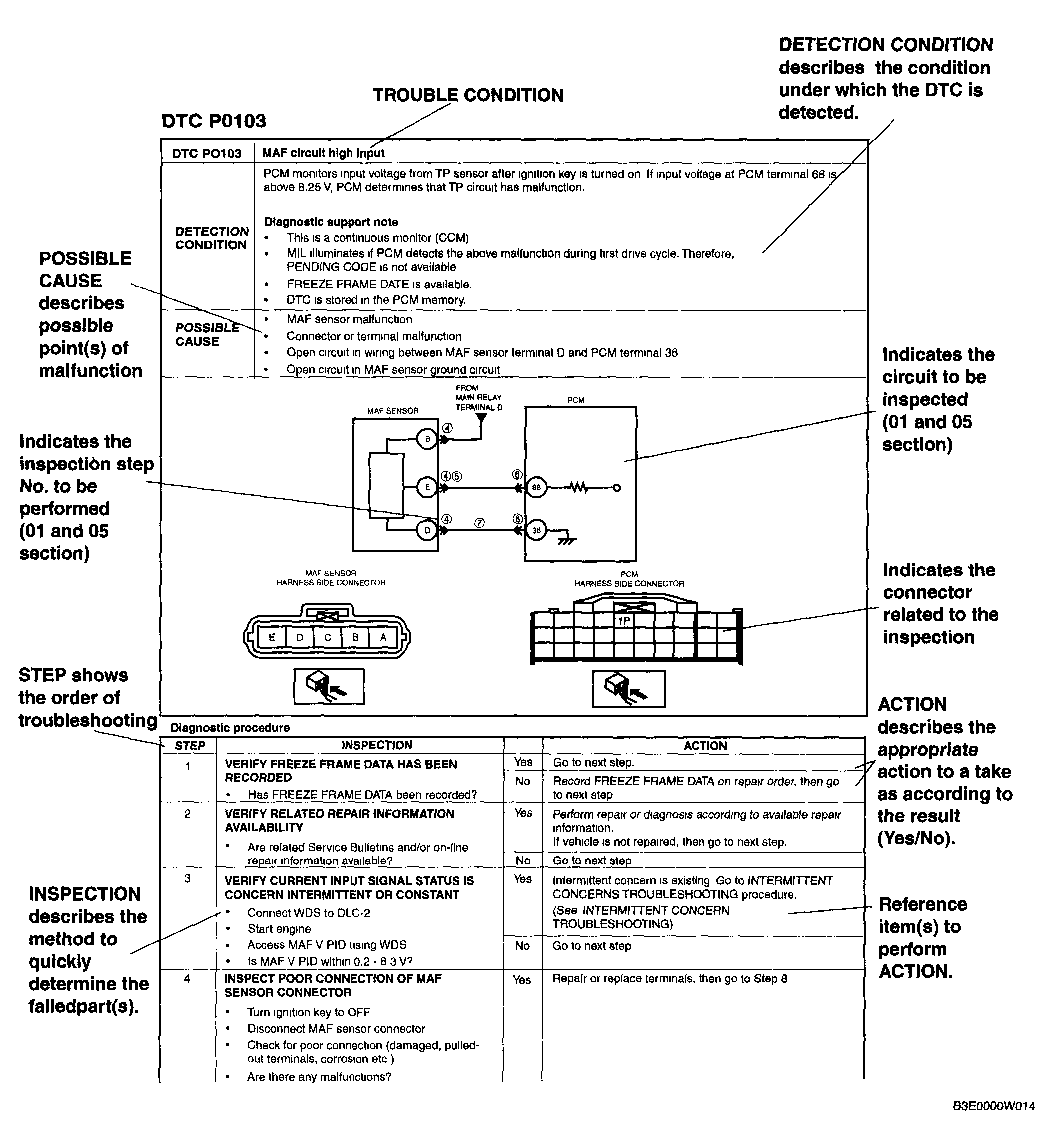

Fig 1: DTC Troubleshooting Possible Cause & Diagnostic Procedure Points
G04327823Courtesy of MAZDA MOTORS CORP.
