Drive Plate Removal/Installation: Notes

  1. Remove in the order indicated in Fig 1.
  2. Install in the reverse order of removal.

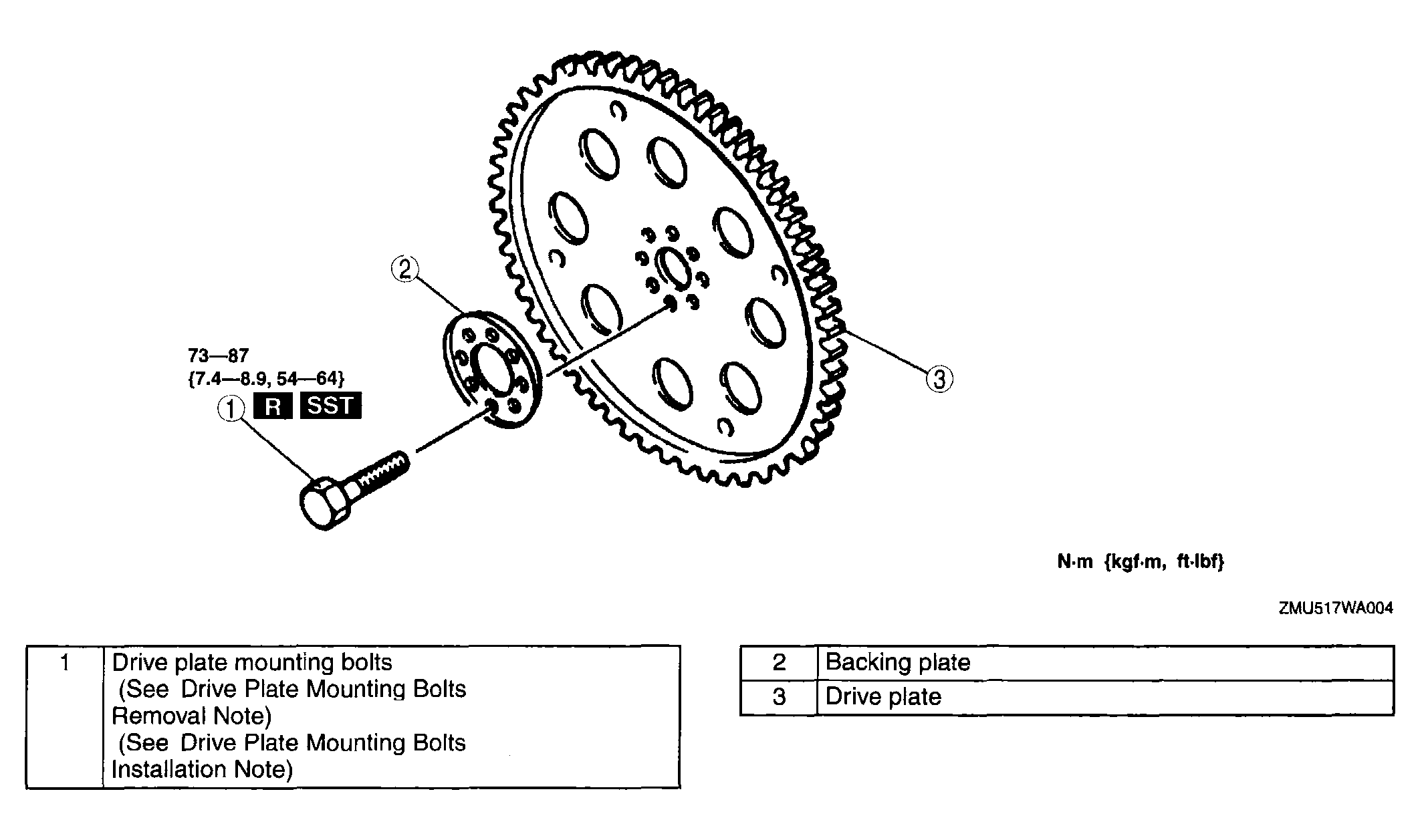

    Fig 1: Drive Plate With Torque Specifications
    G04328805Courtesy of MAZDA MOTORS CORP.
