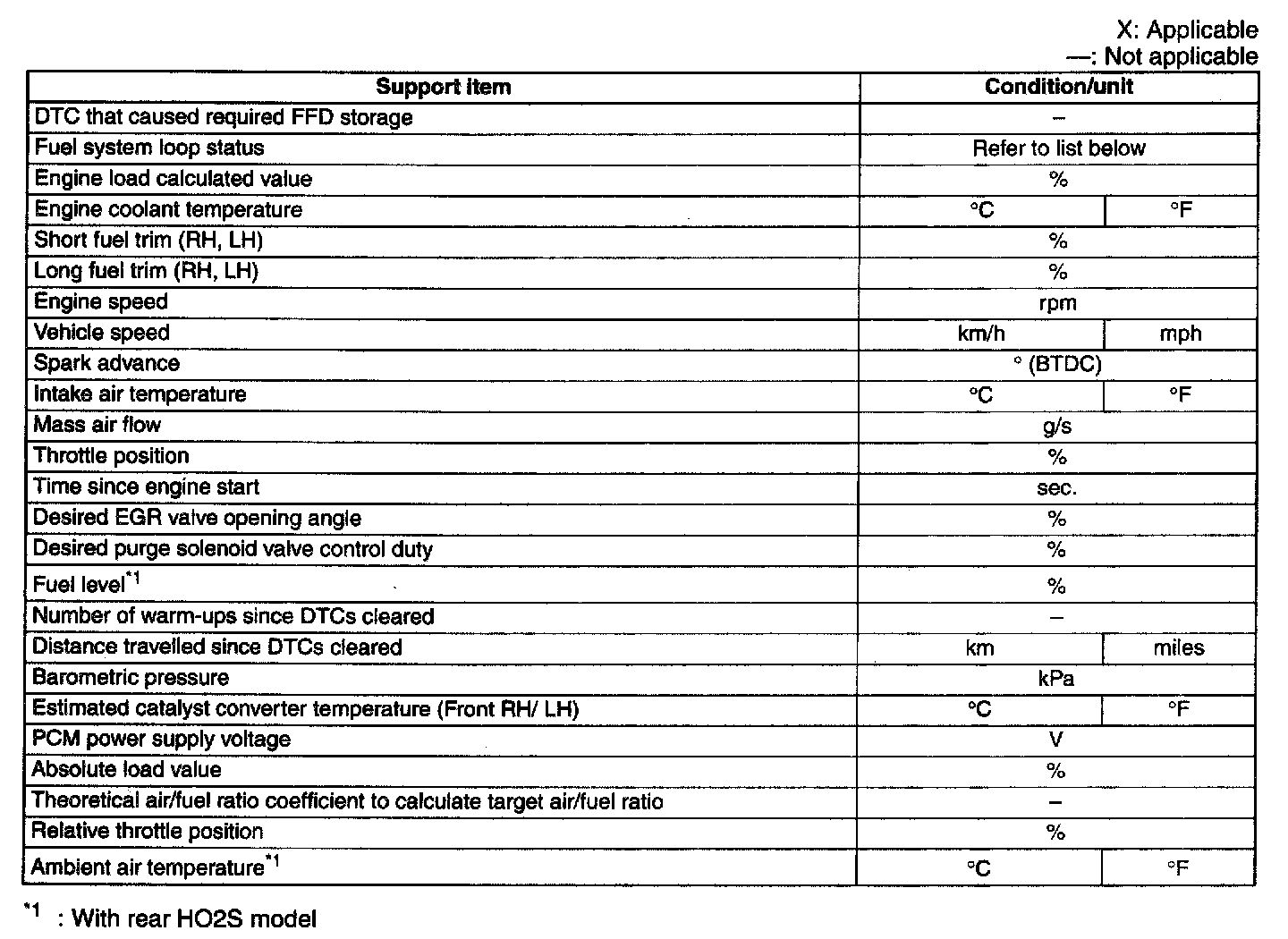

Freeze Frame Data Monitor Table

Freeze Frame Data Monitor Table

Freeze Frame Data Monitor Table:






NOTE: The data will remain in the memory even if another emission-related DTC is stored, including the Misfire and Fuel System Monitor DTCs.
