Electronic Brake Control Module: Testing and Inspection
ABS HU/CM INSPECTION1. Remove the battery and battery tray.
2. Disconnect the ABS/TCS HU/CM (with TCS) or ABS HU/CM (without TCS) connector.
3. Install the battery and battery tray.
4. Attach the tester leads to the ABS/TCS HU/CM (with TCS) or ABS HU/CM (without TCS) harness side connector, then inspect voltage, continuity or resistance according to the standard (reference value) on the table.

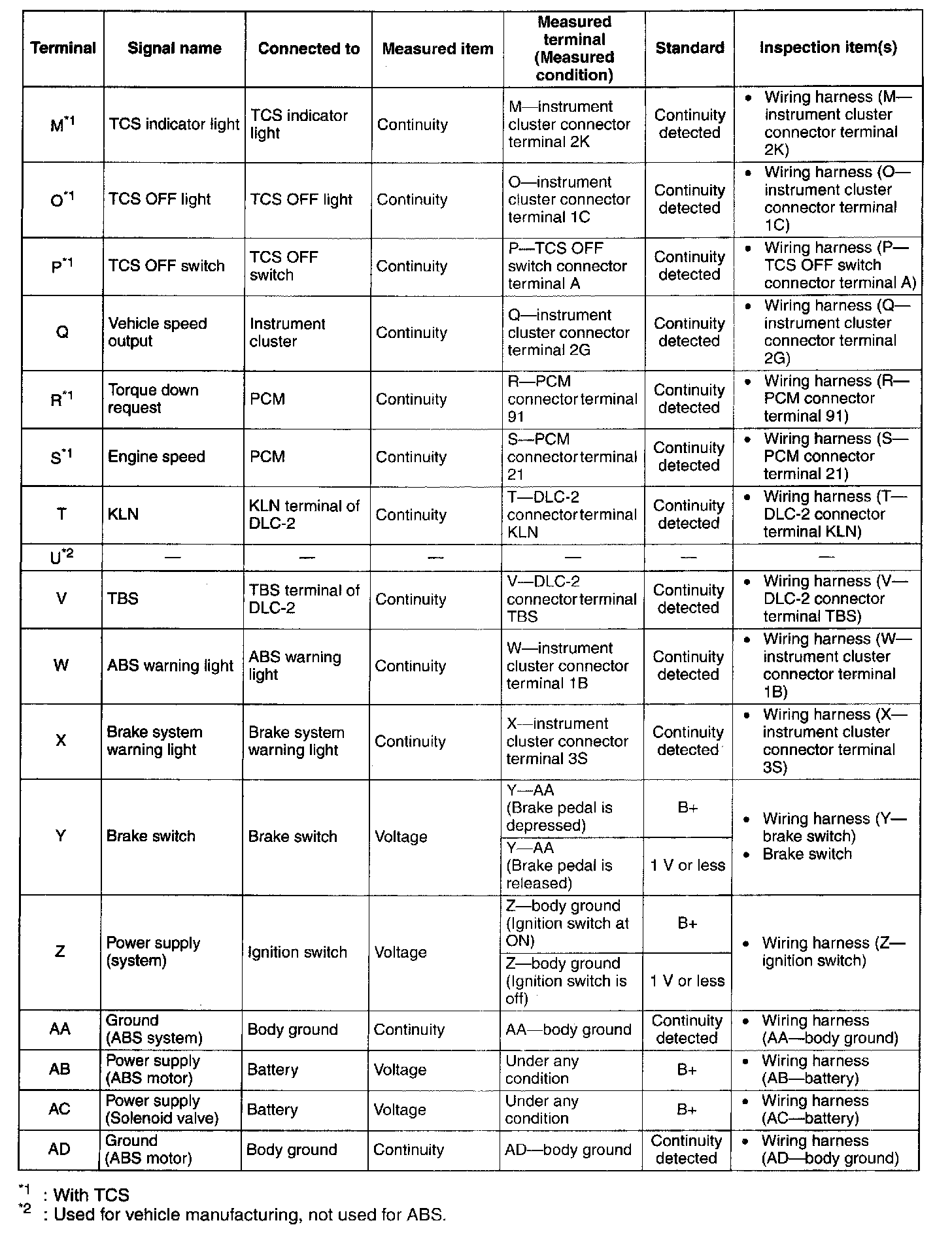

Standard Table (reference value) (part 1):

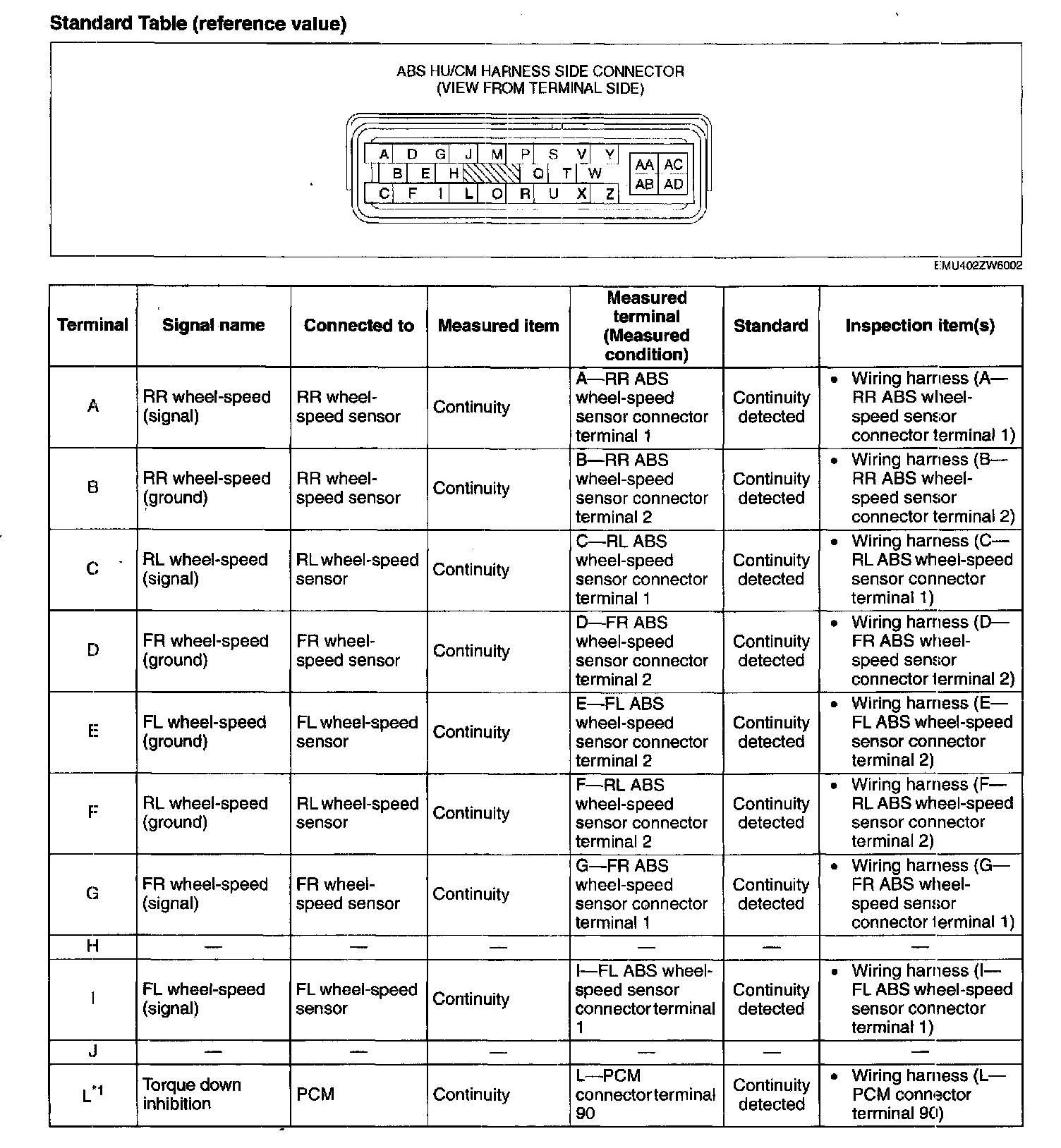

Standard Table (reference value) (part 2):
