Relay Location

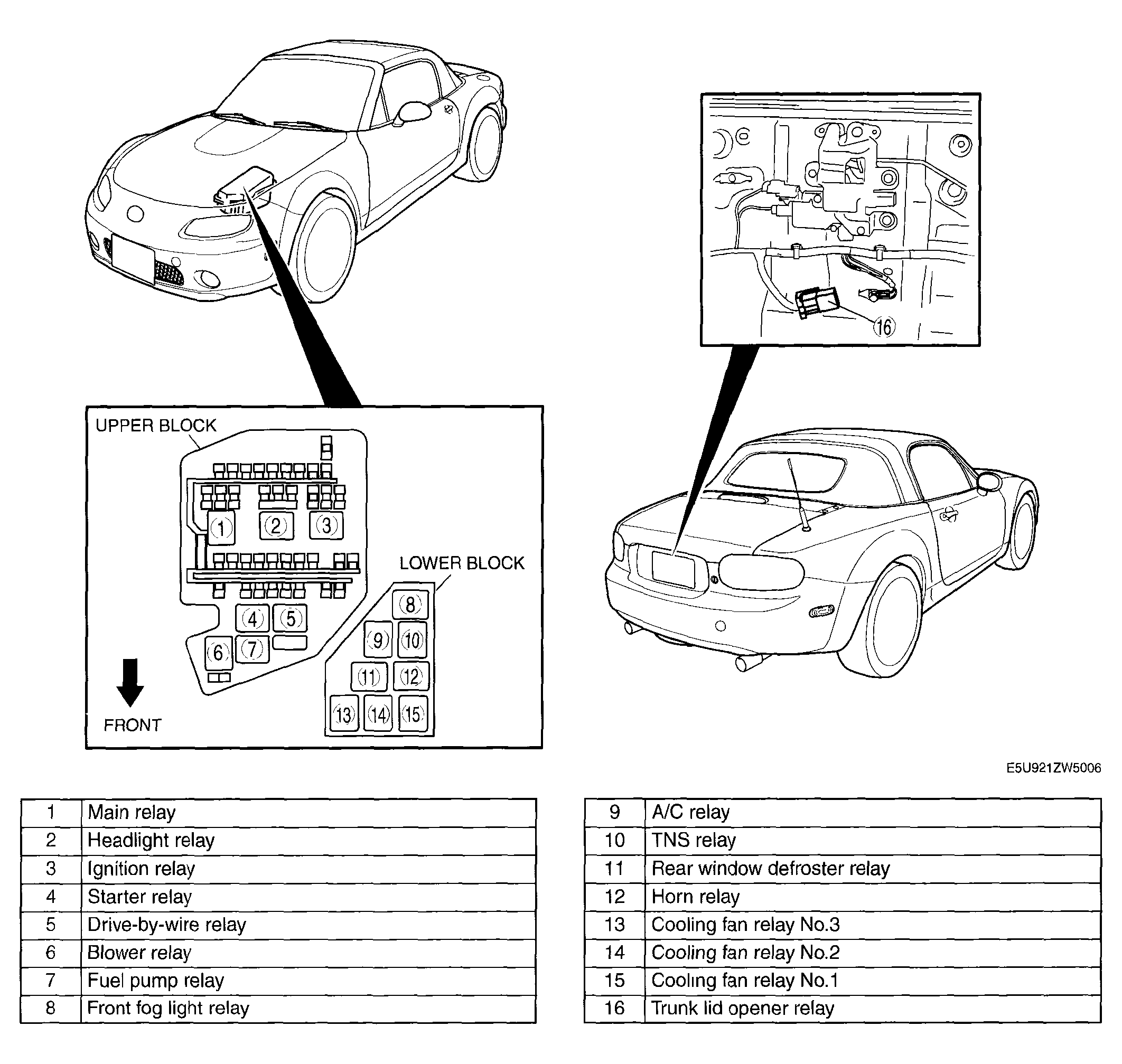

Fig 1: Identifying Location Of Relay
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
