Door Glass Adjustment

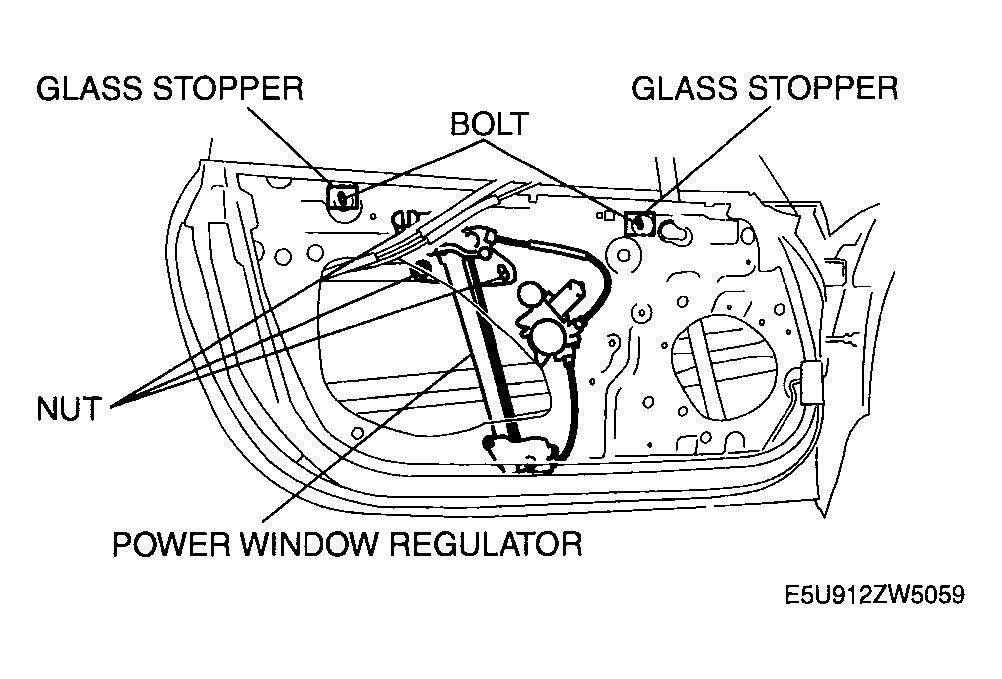

Fig 1: Loosening Glass Stopper, Regulator And Door Glass Installation Bolts

Courtesy of MAZDA MOTORS CORP.

Align the door glass with the rear edge of the front belt line molding.
NOTE:
- The standard position for the rear edge of the front belt line molding is 1 mm from the rear edge of the door panel. If the standard position for the rear edge of the front belt line molding has deviated, align the rear edge of the door glass to the standard position for the rear edge position of the front belt line molding.
Lightly tighten the power window regulator and door glass tightening nuts.

Adjust the clearance between the upper edge of the door glass and the door glass guide.

mm {in}

CLEARANCE TABLE

Clearance	Standard	Minimum	Maximum
a	1.0 {0.04}	0 {0}	1.5 {0.06}

Fig 3: Adjusting Clearance Between Upper Edge Of Door Glass & Door Glass Guide

Courtesy of MAZDA MOTORS CORP.

Adjust the door glass position.

Fig 4: Adjusting Door Glass Position
Courtesy of MAZDA MOTORS CORP.
Tighten the power window regulator and door glass tightening nuts.

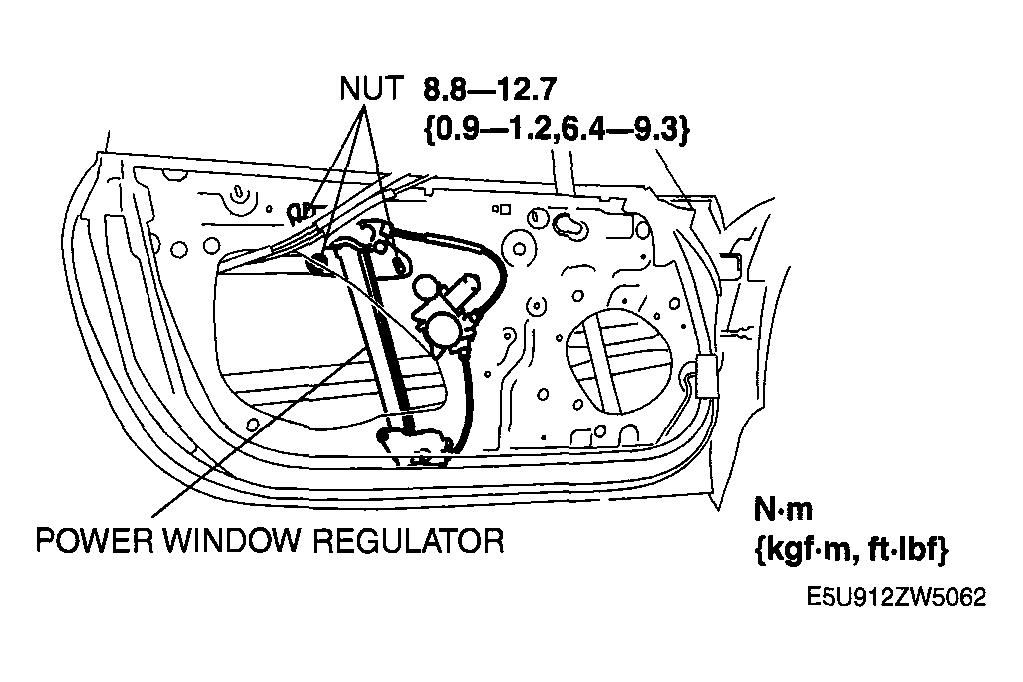

Fig 5: Tightening Power Window Regulator And Door Glass Tightening Nuts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts while pressing the glass stopper in the direction of the arrows.

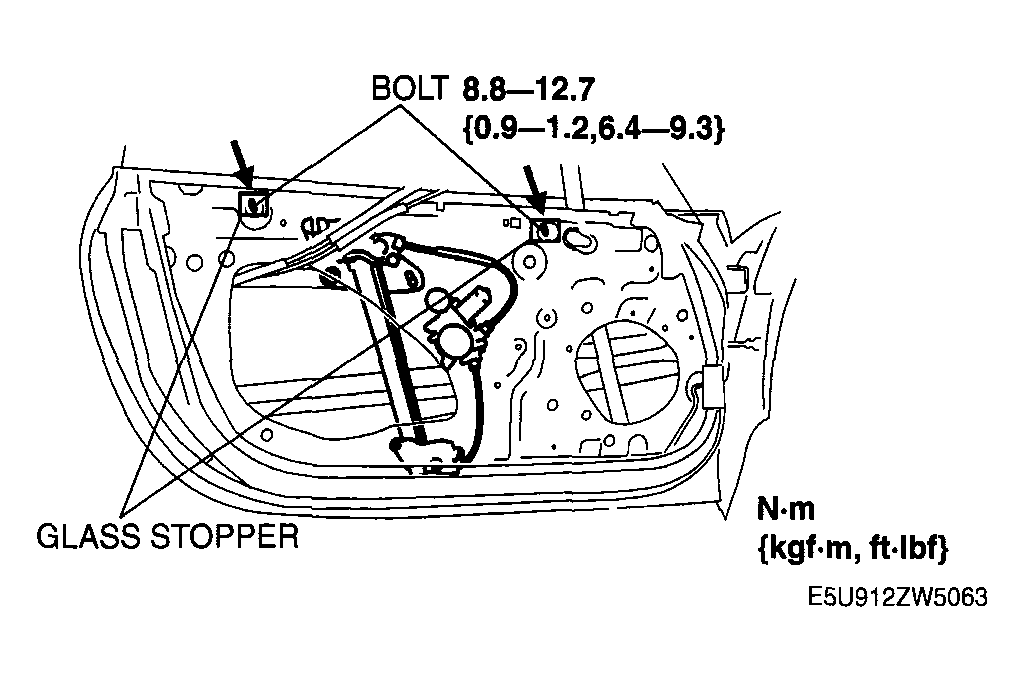

Fig 6: Tightening Glass Stopper With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Verify that the door glass opens and closes smoothly.
Install the door unit. (See DOOR UNIT REMOVAL/INSTALLATION .)
Install the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
Close the door with the soft top closed and verify that the door glass opens and closes smoothly.
