Door Glass Guide Installation Note

  1. Adjust the adjustment bolt as shown in Fig 1 .

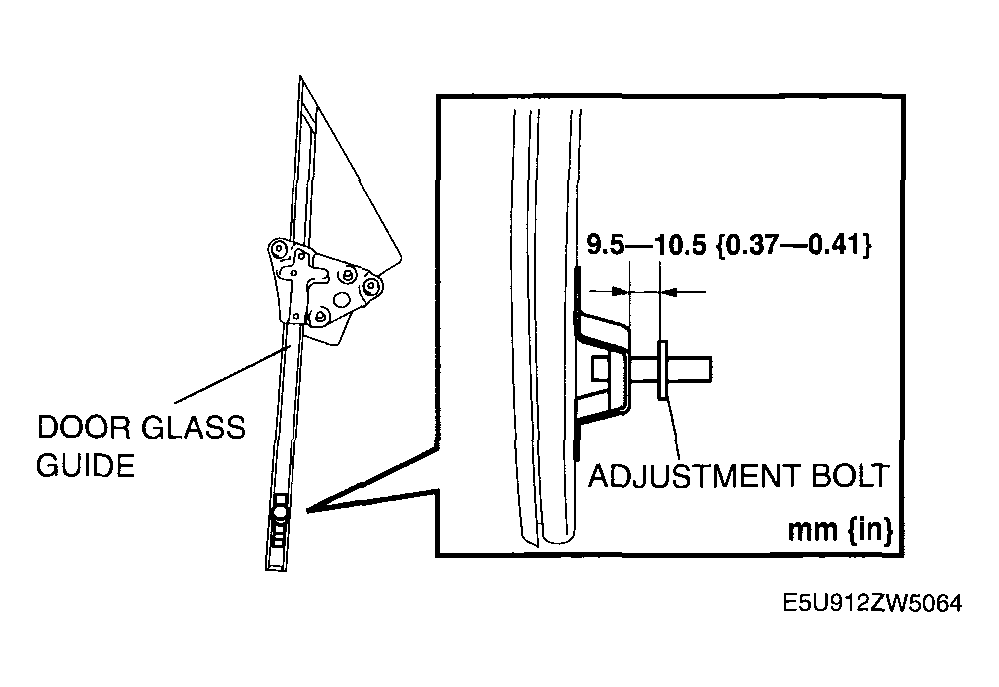

    Fig 1: Adjusting Adjustment Bolt
    G04323438Courtesy of MAZDA MOTORS CORP.
