Rearview Mirror Removal/Installation

Remove the cover.

Fig 1: Removing Cover
Courtesy of MAZDA MOTORS CORP.
Depress the clip, and then remove the rearview mirror by pulling upward.
Install in the reverse order of removal.

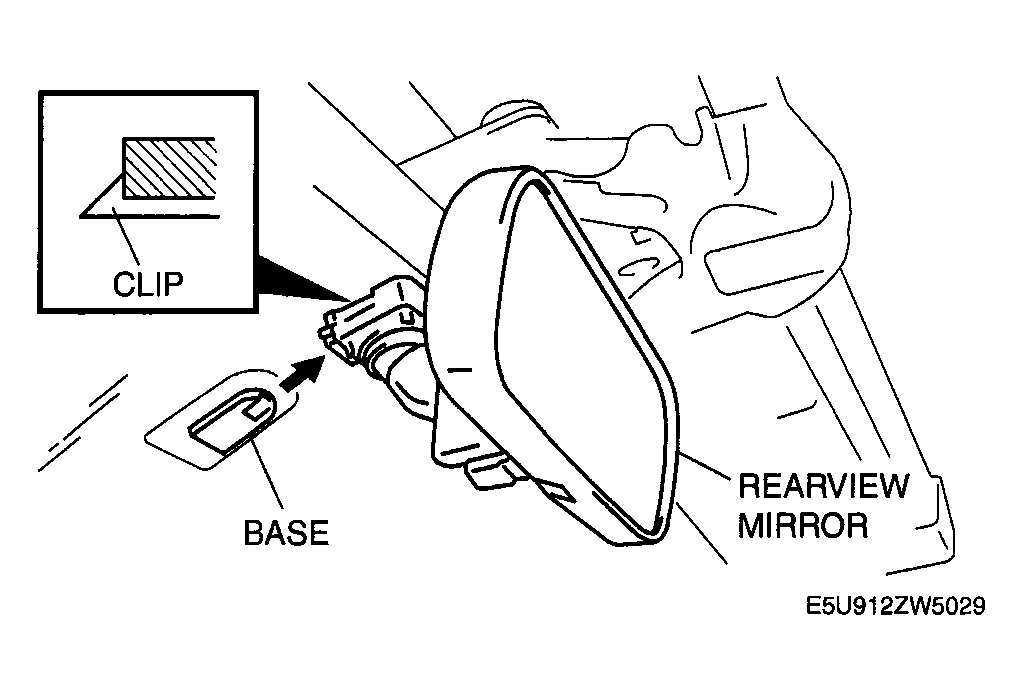

Fig 2: Removing Rearview Mirror
Courtesy of MAZDA MOTORS CORP.
