Abs System Wiring Diagram

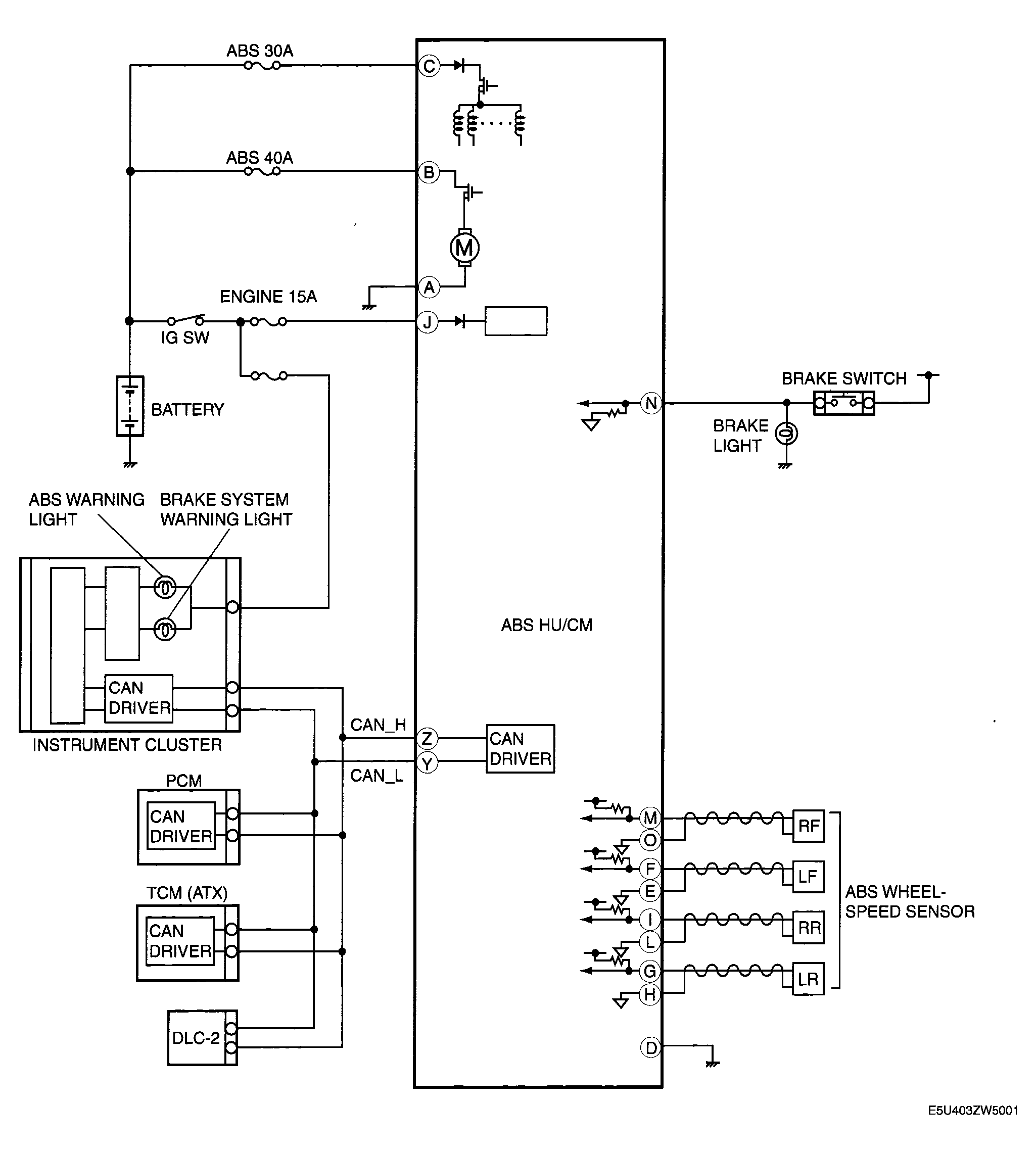

Fig 1: ABS System Wiring Diagram

G04318416

Courtesy of MAZDA MOTORS CORP.
