Starter Disassembly/Assembly

  1. Disassemble in the order indicated in Fig 1 .
  2. Assemble in the reverse order of disassembly.

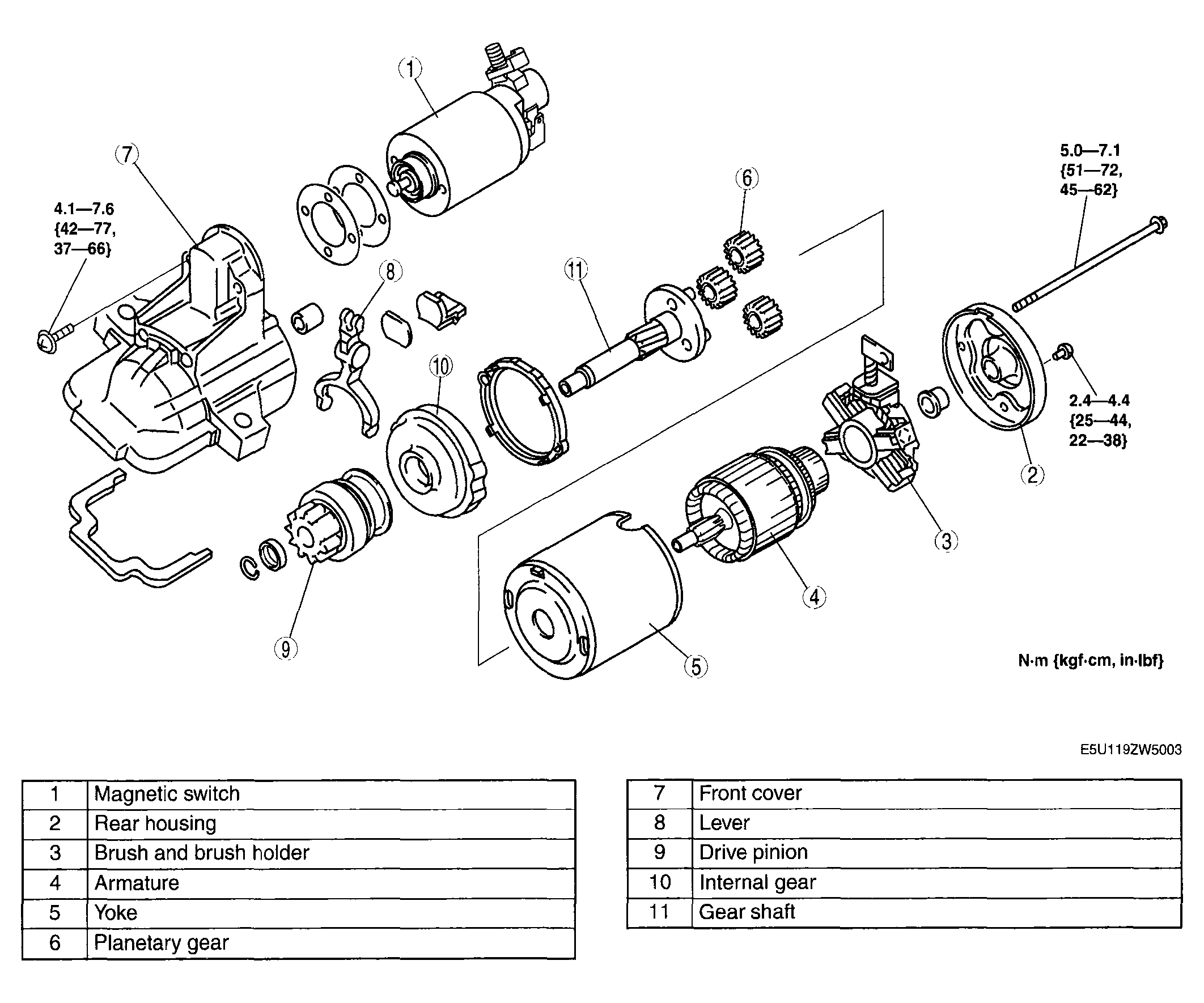

    Fig 1: Disassemble Order Of Starter With Torque Specifications
    G04318049Courtesy of MAZDA MOTORS CORP.
