Joint Hose Installation Note

Install the joint hose and clamp as shown in Fig 1 .
Install the clamp between the spool and stopper without overlapping the stopper.

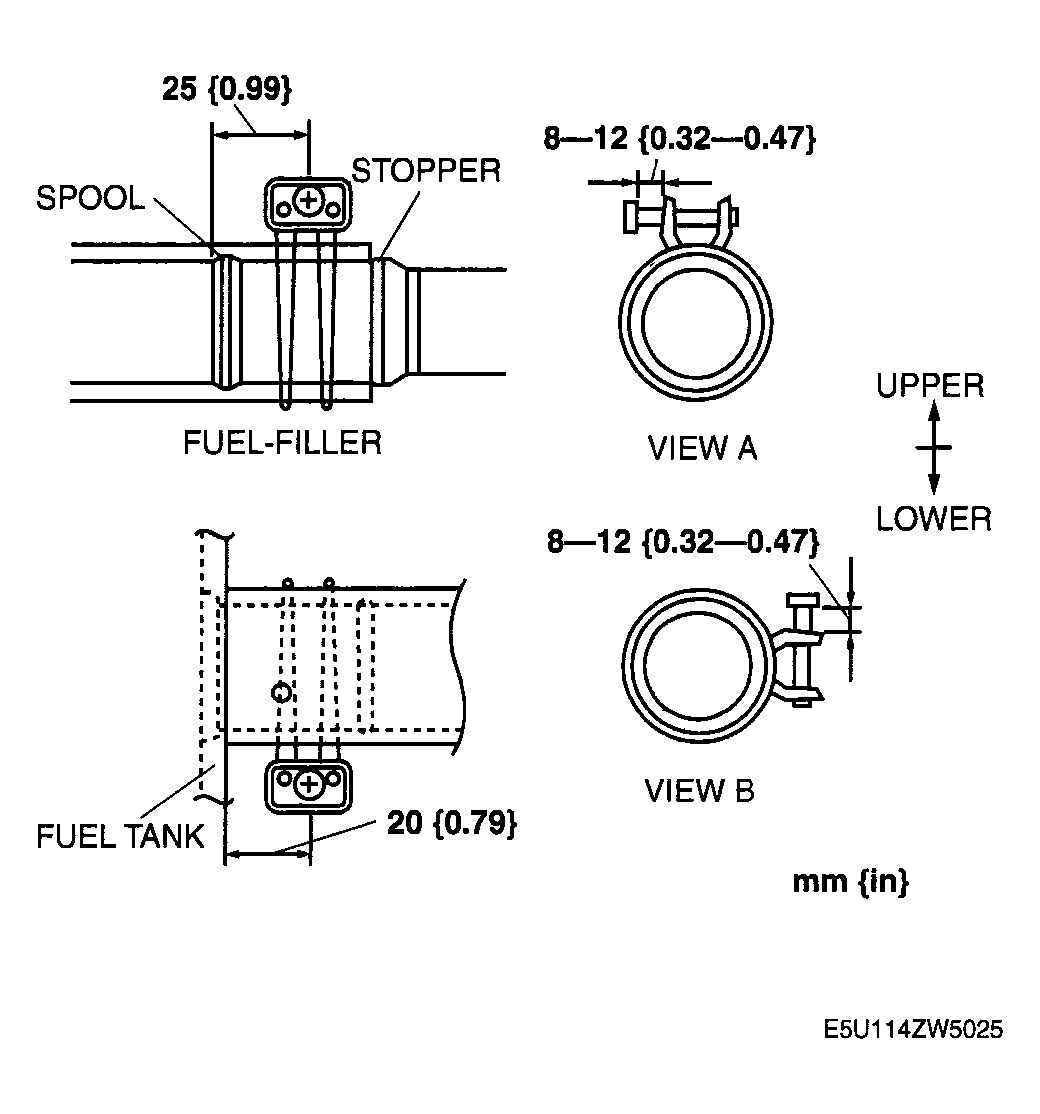

Fig 1: Installing Joint Hose & Clamp
Courtesy of MAZDA MOTORS CORP.
