Part-Side Connector

The viewing direction of part-side connectors is from the terminal side.

*: Part names are shown only when there are multiple connector drawings.

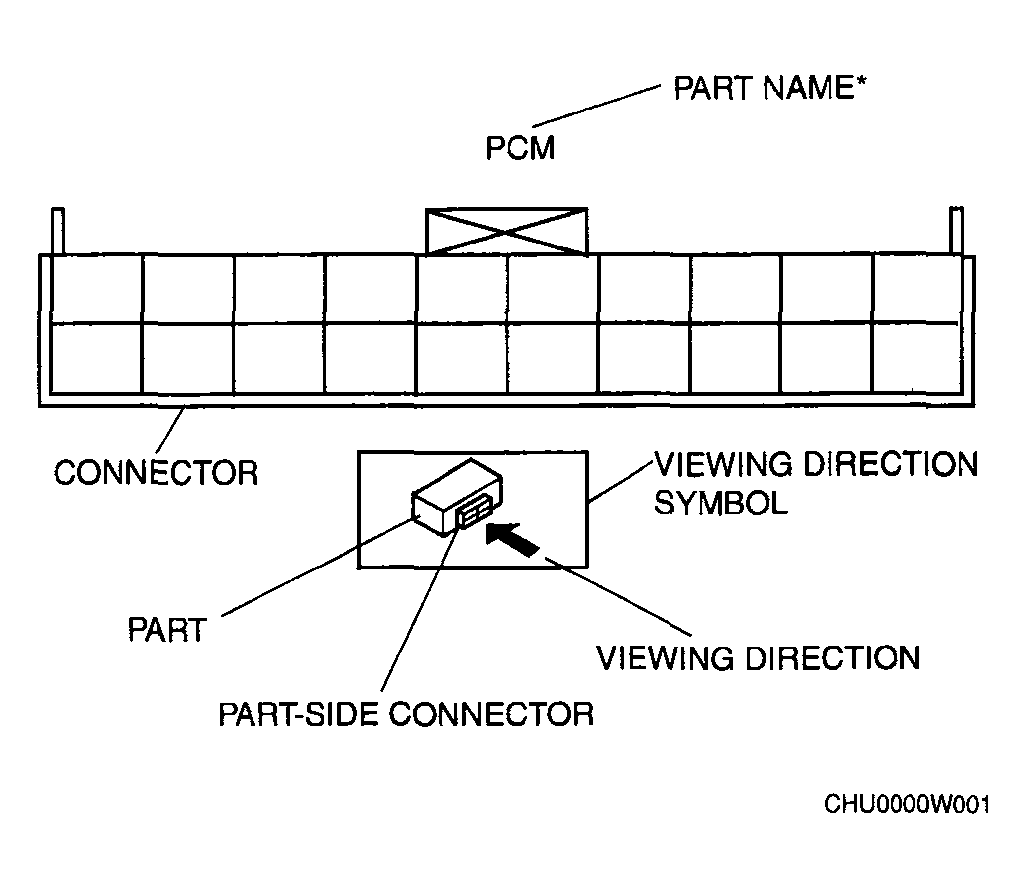

Fig 1: Identifying PCM Connector (Part-Side Connector)
G04317656Courtesy of MAZDA MOTORS CORP.
