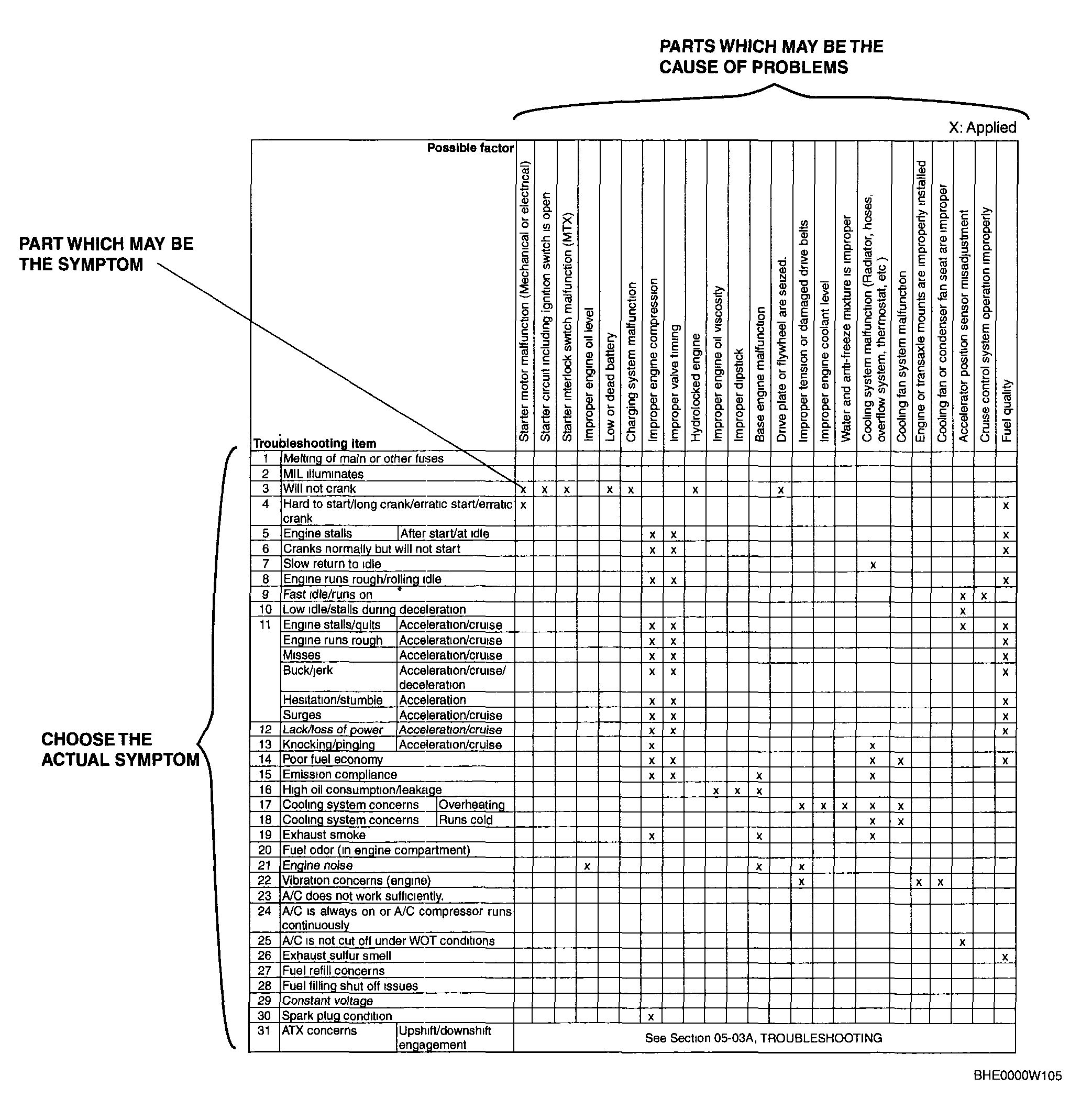

Using the Quick Diagnosis Table
- The table lists the relation between the symptom and the cause of the malfunction.
- The table is effective in quickly narrowing down the relation between symptom and cause of the malfunction. It also specifies the area of the common cause when multiple malfunction symptoms occur.
- The appropriate diagnostic inspection relating to malfunction cause as specified by the symptoms can be selected by looking down the diagnostic inspection column of the table.
Courtesy of MAZDA MOTORS CORP.
