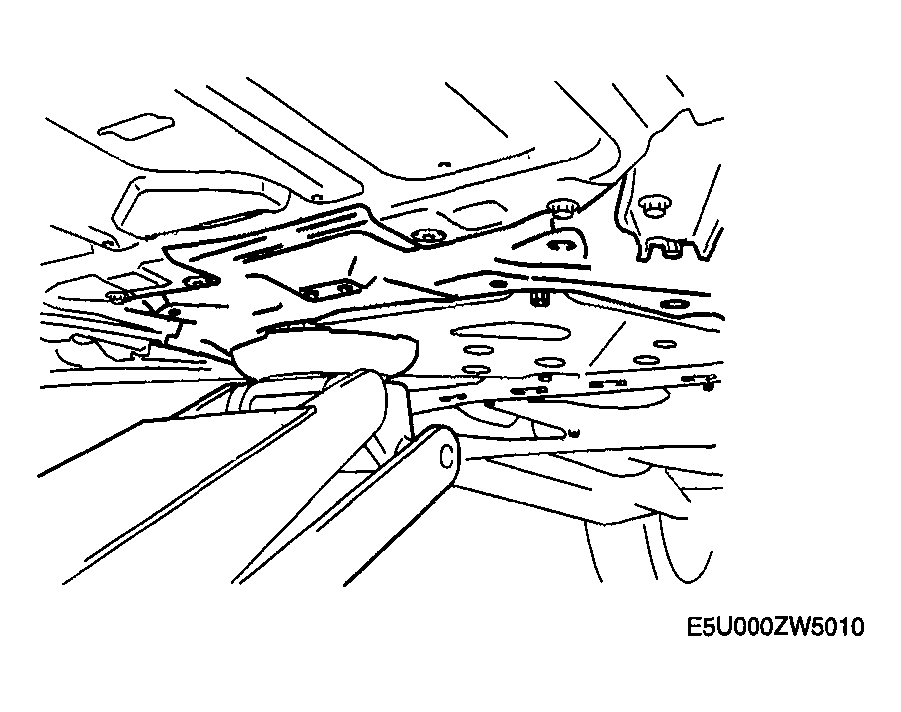

Jacking Positions: Front
NOTE:
- To prevent obstruction between the jack body and front bumper when the jack body is inserted, use a low-floor type jack (frame height is 170 mm or less).
- Near the center of the front crossmember.
Courtesy of MAZDA MOTORS CORP.
